LZ34C10

型号：

LZ34C10

描述：

四分之一型彩色CMOS图像与110的k个像素传感器[ 1/4-type Color CMOS Image Sensor with 110 k Pixels ]

品牌：

SHARP[ SHARP ELECTRIONIC COMPONENTS ]

页数：

12 页

PDF大小：

100 K

下载PDF手册

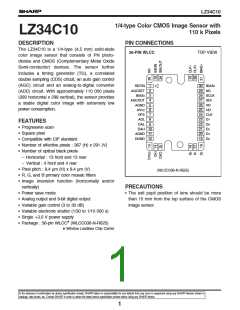

LZ34C10
1/4-type Color CMOS Image Sensor with
110 k Pixels
LZ34C10
DESCRIPTION
PIN CONNECTIONS
The LZ34C10 is a 1/4-type (4.5 mm) solid-state
color image sensor that consists of PN photo-
diodes and CMOS (Complementary Metal Oxide
Semi-conductor) devices. The sensor further
includes a timing generator (TG), a correlated
double sampling (CDS) circuit, an auto gain control
(AGC) circuit and an analog-to-digital converter
(ADC) circuit. With approximately 110 000 pixels
(393 horizontal x 299 vertical), the sensor provides
a stable digital color image with extremely low
power consumption.
36-PIN WLCC
TOP VIEW
REFIN
AGCSET
BIAS3
AGCOUT
AGND
AVDD
1
2
3
4
5
6
7
8
9
30 BIAS2
29 NC
28 SCLK
27 SDI
26 VD
25 HD
24 CLK
23 D7
22 D6
21 D5
20 D4
19 D3
OFS
ADL
DAL
FEATURES
• Progressive scan
• Square pixel
DAH 10
AGND 11
DGND 12
• Compatible with CIF standard
• Number of effective pixels : 367 (H) x 291 (V)
• Number of optical black pixels
– Horizontal : 13 front and 13 rear
– Vertical : 4 front and 4 rear
• Pixel pitch : 9.4 µm (H) x 9.4 µm (V)
• R, G, and B primary color mosaic filters
• Image inversion function (horizontally and/or
vertically)
(WLCC036-N-R625)
PRECAUTIONS
• Power save mode
• The exit pupil position of lens should be more
than 15 mm from the top surface of the CMOS
image sensor.
• Analog output and 8-bit digital output
• Variable gain control (3 to 30 dB)
• Variable electronic shutter (1/30 to 1/10 000 s)
• Single +3.0 V power supply
• Package : 36-pin WLCC* (WLCC036-N-R625)
* Window Leadless Chip Carrier
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP devices shown in
catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
LZ34C10
BLOCK DIAGRAM
HD, VD
CLK
AGC
Control
8-BIT
D/A
TG
DATA
8-BIT
A/D
DIGITAL
VIDEO OUT
CMOS
AGC
SENSOR
AGC OUT
ANALOG
VIDEO OUT
2
LZ34C10
PIN DESCRIPTION
PIN NO. SYMBOL
I/O
I
A/D
DESCRIPTION
1
2
3
4
5
6
7
8
9
REFIN
AGCSET
BIAS3
AGCOUT
AGND
AVDD
OFS
ADL
DAL
Analog Reference voltage for analog input
Analog Resistor for AGC
Analog Analog bias voltage 3 for image sensor
Analog AGC output
–
–
O
–
–
–
–
–
–
–
–
–
I
O
O
O
O
O
O
O
O
O
O
I
Analog Analog ground
Analog Analog power supply
Analog Offset bias voltage for AGC output
Analog Bottom ADC reference voltage
Analog Bottom DAC reference voltage
Analog Top DAC reference voltage
Analog Analog ground
Digital Digital ground
Digital Digital power supply
Digital Clock input for oscillator
Digital Clock output for oscillator
Digital ADC signal output (LSB)
Digital ADC signal output
10 DAH
11 AGND
12 DGND
13 DVDD
14 CKI
15 CKO
16 D0
17 D1
18 D2
19 D3
20 D4
21 D5
22 D6
23 D7
24 CLK
25 HD
Digital ADC signal output
Digital ADC signal output
Digital ADC signal output
Digital ADC signal output
Digital ADC signal output
Digital ADC signal output (MSB)
Digital Clock output (9.0 MHz)
Digital Horizontal drive pulse input
Digital Vertical drive pulse input
Digital Data input (AGC gain, offset, shutter control, etc.)
Digital Shift clock for data
26 VD
I
27 SDI
28 SCLK
29 NC
30 BIAS2
31 BIAS1
32 CLP2
33 CLP1
34 SIGOUT
35 SIGIN
36 NC
I
I
–
–
–
–
–
O
I
–
No connection
Analog Analog bias voltage 2 for image sensor
Analog Analog bias voltage 1 for image sensor
Analog Analog bias voltage 2 for clamp circuit
Analog Analog bias voltage 1 for clamp circuit
Analog Analog image signal output
Analog Analog image signal input
–
–
No connection
3
LZ34C10
ABSOLUTE MAXIMUM RATINGS
(TA = +25 ˚C)
PARAMETER
Power supply voltage
Input signal voltage
Storage temperature
SYMBOL
VDD
RATING
–0.3 to +4.3
UNIT
V
VØ
TSTG
–0.3 to VDD + 0.3
–40 to +80
V
˚C
RECOMMENDED OPERATING CONDITIONS
PARAMETER
Power supply voltage
Operating temperature
Oscillation frequency
SYMBOL MIN.
TYP. MAX. UNIT NOTE
VDD
TOPR
fCK
2.7
–20
3.0
+25
9.0
3.3
+60
V
˚C
MHz
V
LOW level
HIGH level
VØL
0
0.2VDD
VDD
Digital input voltage
Analog input voltage
1
2
3
VØH
0.8VDD
V
(Connect to pin
through a capacitor)
(Connect to GND
Analog bias voltage
through a capacitor)
NOTES :
1. Applied to input pins HD, VD, SDI and SCLK.
2. Applied to input pins SIGIN and REFIN. Do not connect to DC directly.
3. Applied to pins BIAS1, BIAS2, BIAS3, OFS, ADL, DAL, DAH, CLP1 and CLP2.
Do not connect to GND directly.
4
LZ34C10
CHARACTERISTICS (1/30 s progressive scan readout mode)
(TA = 25 ˚C, Operating conditions : The typical values specified in "RECOMMENDED OPERATING CONDITIONS"
.
Color temperature of light source : 3 200 K, IR cut-off filter (CM-500, 1mmt) is used.)
• Measurement point : Analog image signal output (pin no. 34), before AGC circuit and AD converter.
PARAMETER
Standard output voltage
Photo response non-uniformity
Saturation output voltage
Dark output voltage
Dark signal non-uniformity
Sensitivity (Green channel)
Supply current
SYMBOL
VO
PRNU
VSAT
VDARK
DSNU
R
MIN.
600
210
TYP.
150
MAX.
UNIT
mV
%
mV
mV
mV
mV
mA
mVp-p
NOTE
1
2
3
4
5
6
7
8
14
1 000
2
3
350
10
0.4
6
10
IVDD
VFPN
Vertical line fixed pattern noise
1.0
NOTES :
1. The average output voltage of G signal under uniform
illumination. The standard exposure conditions are
defined as when VO is 150 mV.
5. The image area is divided into 10 x 10 segments under
non-exposure conditions. DSNU is defined by (Vdmax –
Vdmin), where Vdmax and Vdmin are the maximum and
minimum values of each segment's voltage respectively.
6. The average output voltage of G signal when a 1 000
lux light source with a 90 % reflector is imaged by a lens
of F4, F50 mm.
2. The image area is divided into 10 x 10 segments under
the standard exposure conditions. Each segment's
voltage is the average output voltage of all pixels within
the segment. PRNU is defined by (Vmax – Vmin)/VO,
where Vmax and Vmin are the maximum and minimum
values of each segment's voltage respectively.
7. Total current of analog and digital power supplies, in the
dark and at the standard load conditions.
3. The image area is divided into 10 x 10 segments. Each
segment's voltage is the average output voltage of all
pixels within the segment. VSAT is the minimum
segment's voltage under 10 times exposure of the
standard exposure conditions.
8. One mean horizontal line signal <bi> is obtained by
adding all the horizontal line signals <aij> vertically and
dividing them by the line number. <xi> is the deviation of
the center pixel from the average of successive 5 pixels
in <bi>. VFPN is the maximum absolute value of <xi>.
4. The difference between average output voltage of the
effective area and that of the OB (A) area, under non-
exposure conditions.
5
LZ34C10
PIXEL STRUCTURE
OPTICAL BLACK
(4 PIXELS)
OPTICAL BLACK
(13 PIXELS)
OPTICAL BLACK
(13 PIXELS)
367 (H) x 291 (V)
• OB (A) : Reference signal
formed by optically shielded
pixels.
OB OB
(A) (B)
OB OB
(B) (A)
7
6
6
7
• OB (B) : Standard signal gen-
erated electrically.
OPTICAL BLACK
(4 PIXELS)
COLOR FILTER ARRAY
(1, 291)
(367, 291)
R
G
R
G
R
G
G
B
G
B
G
B
R
G
R
G
R
G
G
B
G
B
G
B
R
G
R
G
R
G
R
G
R
G
R
G
G
B
G
B
G
B
R
G
R
G
R
G
G
B
G
B
G
B
R
G
R
G
R
G
G
B
G
B
G
B
G
G
R
G
R
G
R
B
G
B
G
B
G
G
R
G
R
G
R
G
R
G
R
G
R
B
G
B
G
B
G
G
R
G
R
G
R
B
G
B
G
B
G
G
R
G
R
G
R
R
G
R
G
R
(1, 1)
(367, 1)
6
LZ34C10
TIMING CHART
HORIZONTAL PULSE TIMING
HD
906 910
01
4
8
12 16 20 24 28 32 36 40 44 48 52 56 60 64 68 72 76 80 84 889092
CLK
Normal
ADOUT
(D0-D7)
361 363 365 367OBB
OBBOBA
OBBOBA
OBA
OBA
ππππ
ππππ
πππππ
πππππ
Mirror
7
5
3
1
OBB
HD
104 108 112 116 120 124 128 132 136 140 144 148 152 156 160 164 168 172 176 180 184 188 192 196 200
CLK
Normal
Mirror
ADOUT
(D0-D7)
OBA
OBA
OBAOBB
OBAOBB
OBB
2
4
6
8
10
ππππ
ππππ
OBB 366 364 362 360 358
• The rising edge of the HD pulse must be between two rising edges of CLK (0) and CLK (1).
• The falling edge of the HD pulse must be between two rising edges of CLK (78) and CLK (79).
PHASE RELATIONS BETWEEN DIGITAL OUTPUT (ADOUT) AND CLOCK (CLK)
CLK
SYMBOL MIN. TYP. MAX. UNIT
∆t
∆t
0
15
40
ns
ADOUT
(D0-D7)
SDI, SCLK
Forbidden Period
VERTICAL PULSE TIMING
VD
HD
328 329 330
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39
Normal
Mirror
ADOUT
(D0-D7)
288 289 290 291 OB OB OB OB
OB OB
OB OB
4
3 2 1 OB OB OB OB
• The rising edge and falling edge of the VD pulse must be in high period of the HD pulses.
SERIAL DATA TIMING (SDI, SCLK)
AGC
Offset
Shutter
D0
D10
D20
D30
D38
SDI
SCLK
• Data in SDI are taken at the rising edge of SCLK.
• Clock frequency of SCLK should be 1/16 of that of CLK.
• Do not insert the SDI and SCLK pulses between 36H* and 37H*. Refer to "VERTICAL PULSE TIMING".
• Refer to "SERIAL DATA INPUTS" for the contents of serial data from D0 to D38.
* It means ordinal number of the HD pulse.
7
LZ34C10
SERIAL DATA INPUTS
DATA
D0
NAME
FUNCTION
Not used.
D1
D2
D3
(Fix to low level.)
Auto gain control
(0 to 20 dB)
AGC7 (MSB)
AGC6
D4
AGC5
D5
AGC4
D6
AGC3
D7
AGC2
D8
AGC1
D9
AGC0 (LSB)
D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31
D32
D33
D34
D35
D36
D37
D38
Not used.
(Fix to low level.)
OFS7 (MSB)
OFS6
OFS5
OFS4
OFS3
OFS2
OFS1
OFS0 (LSB)
Offset level control of AGC output
(0.9 to 1.5 V)
Not used. (Fix to low level.)
Shutter speed control
(Exposure time is 1 to 1/330 frame period.)
SHT8 (MSB)
SHT7
SHT6
SHT5
SHT4
SHT3
SHT2
SHT1
SHT0 (LSB)
MIRH
H : Horizontal mirror inversion image, L : Normal image
H : Vertical mirror inversion image, L : Normal image
Phase selection of AD clock
(Fix to low level.)
Selection of fixed gain
MIRV
SAD1 (MSB)
SAD0 (LSB)
MAX2 (MSB)
MAX1
MAX0 (LSB)
LPMD
(3 to 10 dB)
H : Power save mode (AGC and AD off), L : All active
8
LZ34C10
Setting of Auto Gain Control
• One LSB of the gain code represents approximately 0.078 dB.
• Nominal gain values at typical codes are shown below.
AUTO GAIN CONTROL
D2
D3
D4
D5
D6
D7
D8
D9
(dB)
0
1
L
L
L
L
L
L
L
L
H
L
H
L
L
H
L
H
L
L
H
L
L
H
H
L
L
L
H
H
L
L
L
L
H
L
H
L
L
H
L
H
L
L
H
L
H
L
L
L
H
H
H
L
L
L
H
H
L
L
L
H
H
H
L
L
H
L
L
H
L
H
H
L
H
L
L
H
L
2
L
L
L
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
L
L
L
L
L
L
L
H
H
H
H
H
H
H
H
H
H
H
L
L
H
H
L
L
L
H
H
L
L
L
H
H
H
H
H
L
L
L
L
L
H
H
L
H
H
H
L
H
H
L
H
L
L
H
H
L
H
L
L
H
H
H
L
L
H
H
H
L
H
L
H
H
H
H
H
L
L
H
H
H
H
H
H
H
H
L
H
H
Setting of Offset Level
• One LSB of the offset code represents approximately 0.002 V.
• Nominal offset values at typical codes are shown below.
OFFSET LEVEL (V)
D13
L
L
D14
L
L
H
L
L
D15
L
H
L
L
H
L
D16
L
L
H
L
L
D17
L
H
L
L
H
L
D18
L
L
H
L
L
D19
L
H
L
L
H
L
D20
L
H
H
L
L
H
H
0.9
1.0
1.1
1.2
1.3
1.4
1.5
L
H
H
H
H
H
H
H
H
H
H
H
H
H
9
LZ34C10
Setting of Shutter Speed
• One LSB of the shutter speed code represents 1H, where 1H is the HD pulse period.
• Shutter speed values at typical codes are shown below.
SHUTTER SPEED
D22
D23
D24
D25
D26
D27
D28
D29
D30
(Exposure Time Unit : 1H)
330
329
328
·
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
H
L
H
L
300
·
·
200
·
·
100
·
·
10
·
L
L
L
H
H
L
L
L
L
L
H
L
L
L
H
L
L
L
H
L
H
H
H
L
L
L
L
L
L
H
H
H
L
H
L
H
3
2
1
H
H
H
L
L
L
H
H
H
L
L
L
L
L
L
L
H
H
H
L
L
H
L
L
H
L
H
Setting of Fixed Gain
• One LSB of the gain code represents 1 dB.
FIXED GAIN
D35
D36
D37
(dB)
3
4
5
6
7
8
9
10
L
L
L
L
L
H
H
L
L
H
H
L
H
L
H
L
H
L
H
L
H
H
H
H
10
LZ34C10
EXAMPLE OF OPERATION CIRCUIT
D3
D4
DGND
AGND
DAH
D5
D6
DAL
D7
ADL
CLK
HD
OFS
AVDD
VD
AGND
AGCOUT
BIAS3
AGCSET
REFIN
SDI
SCLK
NC
+
BIAS2
11
PACKAGES FOR CCD AND CMOS DEVICES
PACKAGE
(Unit : mm)
36 WLCC (WLCC036-N-R625)
±0.10
Center of effective imaging area
15.60
±0.10
1.15
±0.10
±0.10
±0.10
13.30
10.00
1.15
±0.05
9.80
(◊2)
2-Ø1.30
±0.20
¬
CMOS
MAX.
Rotation error of die : ¬ = 1.0˚
(◊ 1 : Effective imaging area)
(◊ 2 : Lid's size)
Center of die
±0.20
Refractive index : nd = 1.5
0.04
2-R1.05
±0.075
7.80
(◊1)
A
A
Glass Lid
Package
CMOS
TYP.
0.40
TYP.
P-1.00
A'
0.04
(◊1)
A'
12
厂商 型号 描述 页数 下载

EBMPAPST

 		LZ30 金属护罩[ METAL FINGER GUARDS ] 2 页

EBMPAPST

 		LZ30-5 塑料护罩[ PLASTIC FINGER GUARDS ] 1 页

EBMPAPST

 		LZ30-6 塑料护罩[ PLASTIC FINGER GUARDS ] 1 页

EBMPAPST

 		LZ30F 金属护罩[ METAL FINGER GUARDS ] 2 页

EBMPAPST

 		LZ30P 塑料护罩[ PLASTIC FINGER GUARDS ] 1 页

YEASHIN

 		LZ30V 500毫瓦LL- 34密封式玻璃齐纳稳压器[ 500 mW LL-34 Hermetically Sealed Glass Zener Voltage Regulators ] 4 页

EBMPAPST

 		LZ32-2 塑料护罩[ PLASTIC FINGER GUARDS ] 1 页

EBMPAPST

 		LZ32-3 塑料护罩[ PLASTIC FINGER GUARDS ] 1 页

EBMPAPST

 		LZ32P 塑料护罩[ PLASTIC FINGER GUARDS ] 1 页

EBMPAPST

 		LZ33-1 塑料护罩[ PLASTIC FINGER GUARDS ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.204251s
