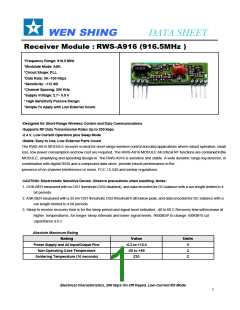

WEN SHING
DATA SHEET
Receiver Module : RWS-A916 (916.5MHz )
*Frequency Range: 916.5 MHz
*Modulate Mode: ASK
*Circuit Shape: PLL
*Date Rate: 3K~100 Kbps
*Sensitivity: -112 dB
*Channel Spacing: 200 KHz
*Supply Voltage: 2.7~ 5.5 V
* High Sensitivity Passive Design.
*Simple To Apply with Low External Count.
-Designed for Short-Range Wireless Control and Data Communications
-Supports RF Data Transmission Rates Up to 200 kbps
-2.4 V, Low Current Operation plus Sleep Mode
-Stable, Easy to Use, Low External Parts Count
The RWS-A916 MODULE receiver is ideal for short-range wireless control and data applications where robust operation, small
size, low power consumption and low cost are required. The RWS-A916 MODULE All critical RF functions are contained in the
MODULE, simplifying and speeding design-in. The RWS-A916 is sensitive and stable. A wide dynamic range log detector, in
combination with digital RSSI and a compound data slicer, provide robust performance in the
presence of on-channel interference or noise. FCC 15.249 and similar regulations.
CAUTION: Electrostatic Sensitive Device. Observe precautions when handling. Notes:
1. OOK BER measured with no DS1 threshold (DS2 disabled), and data encoded for DC-balance with a run length limited to 4
bit periods.
2. ASK BER measured with a 25 mV DS1 threshold, DS2 threshold 6 dB below peak, and data encoded for DC-balance with a
run length limited to 4 bit periods.
3. Sleep to receive recovery time is for the sleep period and signal level indicated, -40 to 60 C.Recovery time will increase at
higher temperatures, for longer sleep intervals and lower signal levels. 9600BSP to change 100KBPS cut
capacitance a.b.c
Absolute Maximum Rating
Rating
Value
-0.3 to +12.0
-20 to +85
230
Units
Power Supply and All Input/Output Pins
Non-Operating Case Temperature
Soldering Temperature (10 seconds)
V
C
C
Electrical Characteristics, 200 kbps On-Off Keyed, Low-Current RX Mode
1
