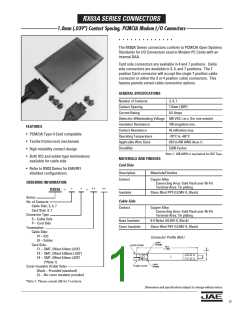

RX03A SERIES CONNECTORS
1.0mm (.039") Contact Spacing, PCMCIA Modem I/O Connectors
• • • • • • • • • • • • • •
The RX03A Series connectors conform to PCMCIA Open Systems
Standards for I/O Connectors used in Modem PC Cards with an
internal DAA.
Card side connectors are available in 4 and 7 positions. Cable
side connectors are available in 3, 4, and 7 positions. The 7
position Card connector will accept the single 7 position cable
connector or either the 3 or 4 position cable connectors. This
feature permits varied cable connection options.
GENERAL SPECIFICATIONS
Number of Contacts
Contact Spacing
Current Rating
3, 4, 7
1.0mm (.039")
0.5 Amps
Dielectric Withstanding Voltage 500 VAC r.m.s. (for one minute)
Insulation Resistance
Contact Resistance
Operating Temperature
Applicable Wire Sizes
Durability
100 megohms min.
45 milliohms max.
FEATURES
• PCMCIA Type II Card compatible
• Tactile friction lock mechanism
• High reliability contact design
-20°C to +60°C
#24 to #30 AWG (Note 1)
5,000 Cycles
Note 1: #28 AWG or equivalent for IDC Type.
• Both IDC and solder type terminations
available for cable side
MATERIALS AND FINISHES
Card Side
• Refer to RX03 Series for EMI/RFI
shielded configurations
Description
Contact
Materials/Finishes
Copper Alloy
Connecting Area: Gold Flash over Ni-Pd
Terminal Area: Tin plating
Glass-filled PPS (UL94V-0, Black)
ORDERING INFORMATION
RX03A
–
*
*
–
**
**
Insulator
Series
No. of Contacts
Cable Side
Cable Side: 3, 4, 7
Card Side: 4, 7
Connector Type
S – Cable Side
P – Card Side
Termination
Contact
Copper Alloy
Connecting Area: Gold Flash over Ni-Pd
Terminal Area: Tin plating
Base Insulator
Cover Insulator
6-6 Nylon (UL94V-0, Black)
Glass-filled PBT (UL94V-0, Black)
Cable Side:
PI – IDC
UI – Solder
Connector Profile (Ref.)
Card Side:
F1 – SMT, Offset 0.4mm (.016")
F2 – SMT, Offset 0.85mm (.033")
F4 – SMT, Offset 0.6mm (.024")
(*Note 1)
Cover Insulator (Cable Side)
Blank – Provided (standard)
CL – No cover insulator provided
*Note 1: Please consult JAE for 7 contacts.
Dimensions in mm (inches).
Dimensions and specifications subject to change without notice.
17
