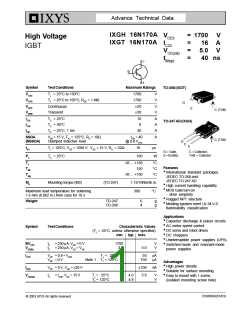

Advance Technical Data
IXGH 16N170A
IXGT 16N170A
VCES
IC25
= 1700 V
16 A
High Voltage
IGBT
=
VCE(sat) = 5.0 V
tfi(typ)
=
40 ns
Symbol
TestConditions
Maximum Ratings
TO-268(IXGT)
VCES
VCGR
TJ = 25°C to 150°C
TJ = 25°C to 150°C; RGE = 1 MΩ
1700
1700
V
V
G
VGES
VGEM
Continuous
Transient
±20
±30
V
V
E
C (TAB)
IC25
IC90
ICM
TC = 25°C
TC = 90°C
TC = 25°C, 1 ms
16
8
40
A
A
A
TO-247AD(IXGH)
SSOA
V
= 15 V, TVJ = 125°C, RG = 10Ω
I
= 40
A
CGlaE mped inductive load
@ 0C.8M VCES
C (TAB)
(RBSOA)
G
C
E
tSC
TJ = 125°C, VCE = 1200 V; VGE = 15 V, RG = 22Ω
10
µs
G = Gate,
C = Collector,
TAB = Collector
E=Emitter,
PC
TC = 25°C
190
W
TJ
TJM
Tstg
-55 ... +150
150
-55 ... +150
°C
°C
°C
Features
z
International standard packages
JEDEC TO-268 and
JEDEC TO-247 AD
Md
Mounting torque (M3)
(TO-247)
1.13/10Nm/lb.in.
300 °C
z
z
High current handling capability
MOS Gate turn-on
Maximum lead temperature for soldering
1.6 mm (0.062 in.) from case for 10 s
- drive simplicity
z
z
Rugged NPT structure
Molding epoxies meet UL 94 V-0
flammability classification
Weight
TO-247
TO-268
6
4
g
g
Applications
z
Capacitor discharge & pulser circuits
z
AC motor speed control
Symbol
TestConditions
Characteristic Values
z
DC servo and robot drives
(TJ = 25°C, unless otherwise specified)
z
min. typ. max.
DC choppers
z
Uninterruptible power supplies (UPS)
z
BVCES
VGE(th)
I
= 250 µA, VGE = 0 V
1700
3.0
V
Switched-mode and resonant-mode
ICC = 250 µA, VCE = VGE
5.0
V
power supplies
ICES
VCE = 0.8 • VCES
VGE = 0 V
T = 25°C
50
µA
µA
Note 1 TJJ = 125°C
750
Advantages
z
High power density
IGES
VCE = 0 V, VGE = ±20 V
±100
nA
z
Suitable for surface mounting
z
VCE(sat)
IC = IC90, VGE = 15 V
T = 25°C
TJJ = 125°C
4.0
4.8
5.0
V
V
Easy to mount with 1 screw,
(isolated mounting screw hole)
DS98993(01/03)
© 2003 IXYS All rights reserved
