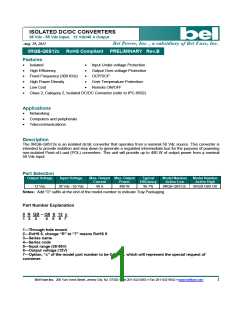

ISOLATED DC/DC CONVERTERS
38 Vdc - 55 Vdc Input, 12 Vdc/40 A Output
Aug. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
0RQB-Q8S12x RoHS Compliant PRELIMINARY Rev.B
Features
Isolated
Input Under-voltage Protection
Output Over-voltage Protection
OCP/SCP
High Efficiency
Fixed Frequency (300 KHz)
High Power Density
Low Cost
Over Temperature Protection
Remote ON/OFF
Class 2, Category 2, Isolated DC/DC Converter (refer to IPC-9592)
Applications
Networking
Computers and peripherals
Telecommunications
Description
The 0RQB-Q8S12x is an isolated dc/dc converter that operates from a nominal 50 Vdc source. This converter is
intended to provide isolation and step down to generate a regulated intermediate bus for the purpose of powering
non-isolated Point-of-Load (POL) converters. This unit will provide up to 480 W of output power from a nominal
50 Vdc input.
Part Selection
Output Voltage
Input Voltage
Max. Output Max. Output
Typical
Efficiency
Model Number
Active Low
Model Number
Active High
Current
Power
12 Vdc
38 Vdc - 55 Vdc
40 A
480 W
96.7%
0RQB-Q8S12L
0RQB-Q8S120
Notes: Add “G” suffix at the end of the model number to indicate Tray Packaging.
Part Number Explanation
0 R QB – Q8 S 12 x
1
2
3
4
5
6 7
1---Through hole mount
2---RoHS 6, change “R” to “7” means RoHS 5
3---Series name
4---Series code
5---Input range (38-55V)
6---Output voltage (12V)
7---Option, “x” of the model part number to be 0-9, A-Z, which will represent the special request of
customer.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
1
ISOLATED DC/DC CONVERTERS
38 Vdc - 55 Vdc Input, 12 Vdc/40 A Output
Aug. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Absolute Maximum Ratings
Unit
Parameter
Min
Typ
Max
Notes
Continuous non-operating Input
Voltage
-0.3
-
60
V
Remote On/Off
-0.3
-40
-55
-
-
-
10
85
V
Ambient Temperature
Storage Temperature
C
C
125
Note: Ratings used beyond the maximum ratings may cause a reliability degradation of the converter or may
permanently damage the device.
Input Specifications
Parameter
Min
Typ
Max
Unit
Notes
Operating Input Voltage
38
50
55
V
Input Current (full load)
Input Current (no load)
Remote Off Input Current
-
-
-
-
140
4
12.5
200
8
A
mA
mA
Input Reflected Ripple Current
(rms)
-
-
450
1.6
600
2.4
mA
Input Reflected Ripple Current
(pk-pk)
A
I2t Inrush Current Transient
Turn-on Voltage Threshold
Turn-off Voltage Threshold
-
-
1
A2s
V
34
32
35.5
33.5
37
35
V
CAUTION: This converter is not internally fused. An input line fuse must be used in application.
Recommend a fast-acting fuse with maximum rating of 20A on system board. Refer to the fuse
manufacture’s datasheet for further information.
Note: All specifications are typical at 25 C unless otherwise stated.
Output Specifications
Parameter
Min
Typ
Max
Unit
Notes
Output Voltage Set Point
Please see the figure about Vo set
point below.
12
Vin
4
Vin＞49V
Vin≤49V
-
-
-
-
V
V
Load Regulation
Vin=38-49V
Vin=49-55V
-
-
0.4
30
0.7
50
V
mV
Io=0~100% load
Io=100% load
Line Regulation
Vin=38-49V
Vin=49-55V
-
-
2.7
25
3.5
40
V
mV
Output Ripple and Noise (pk-pk)
Output Ripple and Noise (rms)
-
-
50
10
150
30
mV
mV
Vin=50V, Io=100%load, 0-20MHz
BW, with a 1µF ceramic capacitor
and a 10uF TAN cap at output.
Ripple and Noise (pk-pk)
under worst case
Over all operating input voltage, load
and ambient temperature condition.
-
-
200
mV
Output Current Range
Vin=38V
Vin=48V
Vin=55V
0
0
0
-
-
-
40
40
40
A
A
A
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
2
ISOLATED DC/DC CONVERTERS
38 Vdc - 55 Vdc Input, 12 Vdc/40 A Output
Aug. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Output Specifications (continued)
Parameter
Min
Typ
Max
Unit
Notes
Output DC Current Limit
48
52
56
A
Vin=50V
Short Circuit Surge Transient
Rise time
-
-
-
-
2
15
A2s
mS
mS
mS
%
-
30
30
0
35
Enable from Vin
Turn on Time
-
35
Enable from ON/OFF
Overshoot at Turn on
-
3
Output Capacitance
0
-
6000
uF
Transient Response
△V
50%~75%
of Max Load
Overshoot
Settling Time
Overshoot
-
250
100
250
100
350
200
350
200
mV
uS
di/dt=1A/us, Vin=50Vdc, Ta=25°C,
with a 1µF ceramic capacitor and a
100uF AL. cap at output.
-
-
-
Vo=
12 V
△V
75%~50%
of Max Load
mV
uS
Settling Time
Note: All specifications are typical at nominal input, full load at 25°C unless otherwise stated.
Vo vs Vin
12.5
12
11.5
11
0A
20A
40A
10.5
10
9.5
9
8.5
38
39
40
41
42
43
44
45
46
47
48
49
50
52
55
Vin(V)
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
3
ISOLATED DC/DC CONVERTERS
38 Vdc - 55 Vdc Input, 12 Vdc/40 A Output
Aug. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
General Specifications
Parameter
Min
Typ
Max
Unit
Notes
Vin=50V, full load
Efficiency
94.7
96.7
-
%
Switching Frequency
Over Temperature Protection
Over Voltage Protection
Weight
280
300
125
-
320
kHz
℃
V
-
-
-
-
14
-
65
g
Calculated Per Bell Core SR-332
(Vin=50 V, Vo=12 V, Io=32 A, Ta =
25C, FIT=109/MTBF)
FIT
161
-
Isolation characteristics
Input to Output
-
10M
-
-
-
1500
V
Isolation Resistance
Isolation Capacitance
-
-
Ohm
pF
2700
Note: All specifications are typical at 25 C unless otherwise stated.
Efficiency Data
0.98
0.96
0.94
0.92
0.9
38V
48V
55 V
0.88
0.86
0.84
0.82
0.8
5A
10A
20A
30A
40A
OUTPUT CURRENT(A)
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
4
ISOLATED DC/DC CONVERTERS
38 Vdc - 55 Vdc Input, 12 Vdc/40 A Output
Aug. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Remote On/Off
Parameter
Min
Typ
Max
Unit
Notes
Signal Low (Unit On)
Signal High (Unit Off)
Signal Low (Unit Off)
Signal High (Unit On)
Current Sink
-0.3
-
0.8
V
0RQB-Q8S12L
The remote on/off pin open, Unit off.
Active Low
Active High
2.4
-0.3
2.4
0
-
-
-
-
10
0.8
10
V
V
0RQB-Q8S120
The remote on/off pin open, Unit on.
V
0.3
mA
Recommended remote on/off circuit for active low
Vin+
Vin+
On/off
Vin-
On/off
Vin-
Control with open collector/drain circuit
Control with photocoupler circuit
Vin+
Vin+
Vcc
On/off
On/off
Vin-
Vin-
Control with logic circuit
Permanently on
Recommended remote on/off circuit for active high
Vin+
Vin+
On/off
On/off
Vin-
Vin-
Control with open collector/drain circuit
Control with photocoupler circuit
Vin+
Vin+
Vcc
On/off
On/off
Vin-
Vin-
Control with logic circuit
Permanently on
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
5
ISOLATED DC/DC CONVERTERS
38 Vdc - 55 Vdc Input, 12 Vdc/40 A Output
Aug. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Over Current Protection
To provide protection in a fault output overload condition, the module is equipped with internal current-limiting
circuitry and can endure current limiting for a few mili-seconds. If the over current condition persists beyond a few
milliseconds, the module will shut down into hiccup mode and restart once every 400mS. The module operates
normally when the output current goes into specified range. The typical average output current is 3.8A during
hiccup.
CH1: Output Voltage
CH1: Output Voltage
CH2: Output Current Waveform
Test condition: Vin=50V
CH2: Output Current Waveform
Expansion of on time portion of above figure
Ripple and Noise Waveform
50Vdc input, 12Vdc/40A output
Note: Ripple and noise at full load, with a 1uF ceramic cap and a 10uF Tan cap at output, Ta=25 deg C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
6
ISOLATED DC/DC CONVERTERS
38 Vdc - 55 Vdc Input, 12 Vdc/40 A Output
Aug. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Input Under-voltage Lockout
Under-voltage Lockout
Voltage Falling
V1=33.5V
V2=35.5V
Voltage Rising
Input Voltage (V)
V1
V2
Transient Response Waveforms
Vin= 50V 50%-75% Load Transients
Vin= 50V 75%-50% Load Transients
Note: Transient Response at di/dt=1A/uS, with a 1µF ceramic capacitor and a 100uF AL. cap at output, Ta=25
deg C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
7
ISOLATED DC/DC CONVERTERS
38 Vdc - 55 Vdc Input, 12 Vdc/40 A Output
Aug. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Thermal Derating Curve
Maximum junction temperature of semiconductors derated to 120 degree C.
AIR FLOW
Bottom view
The OTP is achieved by temperature sensor U10 and it is in non-latch mode when the hottest component Q9
reaches 125C with 200LFM air flow correspondingly. It will restart automatically when the temperature falls down
to 105C. The protecting point will be varied a little under different conditions (air flow, ambient temperature, input
voltage, load...).
Temperature reference points on top side
Temperature reference points on bottom side
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
8
ISOLATED DC/DC CONVERTERS
38 Vdc - 55 Vdc Input, 12 Vdc/40 A Output
Aug. 19, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Mechanical Outline
Pin
1
Function
Vin(+)
Dia.
Length
0.145’’
0.145’’
0.145’’
0.145’’
0.145’’
0.04’’
0.04’’
0.04’’
0.06’’
0.06’’
2
Remote
Vin(-)
3
4
Vout(-)
Vout(+)
5
Note: This module is recommended and compatible with Pb-Free Wave Soldering and must be soldered
using a peak solder temperature of no more than 260 ºC for less than 5 seconds.
Note:
1) All Pins: Material - Copper Alloy;
Finish – 3 micro inches minimum Gold over 50 micro inches minimum Nickel plate.
2) Undimensioned components are shown for visual reference only.
3) All dimensions in inches (mm); Tolerances: x.xx +/-0.02 in. (x.x +/-0.5mm) x.xxx +/-0.010 in. (x.xx +/-0.25mm).
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
9
ISOLATED DC/DC CONVERTERS
38 Vdc - 55 Vdc Input, 12 Vdc/40 A Output
Jul. 7, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Revision History
Date
Revision
Changes Detail
Approval
YF Sun
XJ Sun
2011-07-07
2011-08-19
PA
PB
First release
Updated mechanical outline
RoHS Compliance
Complies with the European Directive 2002/95/EC, calling for the elimination of lead and
other hazardous substances from electronic products.
2011 Bel Fuse Inc. Specifications subject to change without notice. 081911
10
CORPORATE
FAR EAST
EUROPE
Bel Fuse Inc.
Bel Fuse Ltd.
Bel Fuse Europe Ltd.
206 Van Vorst Street
Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
8F/ 8 Luk Hop Street
San Po Kong
Kowloon, Hong Kong
Tel 852-2328-5515
Fax 852-2352-3706
www.belfuse.com
Preston Technology Management Centre
Marsh Lane, Suite G7, Preston
Lancashire, PR1 8UD, U.K.
Tel 44-1772-556601
Fax 44-1772-888366
www.belfuse.com
厂商 型号 描述 页数 下载

BEL

 		0RQ1-C5TV80 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8A 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8B 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8L 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8X 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8_11 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-Q0T12 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

BEL

 		0RQ1-Q0T120 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

BEL

 		0RQ1-Q0T12L 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

BEL

 		0RQ1-T0S12BG [ DC-DC Regulated Power Supply Module, ] 11 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.186790s
