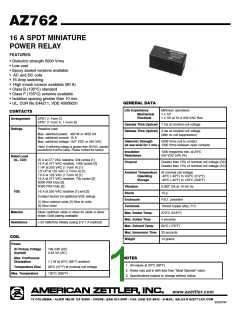

AZ762
16 A SPDT MINIATURE
POWER RELAY
FEATURES
• Dielectric strength 5000 Vrms
• Low cost
• Epoxy sealed versions available
• AC and DC coils
• 16 Amp switching
• High inrush version available (80 A)
• Class B (130°C) standard
• Class F (155°C) versions available
• Isolation spacing greater than 10 mm
• UL, CUR file E44211, VDE 40006031
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Minimum operations
1 x 107
1 x 105 at 16 A 240 VAC Res.
CONTACTS
Arrangement
SPDT (1 Form C)
SPST (1 Form A, 1 Form B)
Operate Time (typical) 7 ms at nominal coil voltage
Ratings
Resistive load:
Release Time (typical) 3 ms at nominal coil voltage
Max. switched power: 480 W or 4432 VA
Max. switched current: 16 A
(with no coil suppression)
Dielectric Strength
5000 Vrms coil to contact
Max. switched voltage: 150* VDC or 440 VAC
(at sea level for 1 min.) 1000 Vrms between open contacts
*Note: If switching voltage is greater than 30VDC, special
precautions must be taken. Please contact the factory.
Insulation
1000 megohms min. at 20°C
500 VDC 50% RH
Resistance
Rated Load
UL, CUR
16 A at 277 VAC resistive, 50k cycles [1]
16 A at 277 VAC resistive, 100k cycles [3]
1 HP at 250 VAC (1 Form A) [1]
1/2 HP at 125 VAC (1 Form A) [1]
TV-5 at 125 VAC (1 Form A) [1]
16 A at 277 VAC resistive, 75k cycles [2]
B300 Pilot Duty [2]
Dropout
Greater than 10% of nominal coil voltage (DC)
Greater then 15% of nominal coil voltage (AC)
Ambient Temperature At nominal coil voltage
Operating
Storage
-40°C (-40°F) to 100°C (212°F)
-40°C (-40°F) to 130°C (266°F)
0.062" DA at 10–55 Hz
10 g
R300 Pilot Duty [2]
Vibration
VDE
16 A at 250 VAC resistive [1] and [2]
Shock
Contact factory for additonal VDE ratings
Enclosure
P.B.T. polyester
[1] Silver cadmium oxide, [2] Silver tin oxide
[3] Silver nickel
Terminals
Tinned copper alloy, P.C.
270°C (518°F)
Material
Silver cadmium oxide or silver tin oxide or silver
nickel. Gold plating available
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
5 seconds
Resistance
< 50 milliohms initially (using 6 V 1 A method)
80°C (176°F)
Max. Immersion Time 30 seconds
COIL
Weight
14 grams
Power
At Pickup Voltage
(typical)
196 mW (DC)
0.43 VA (AC)
Max. Continuous
Dissipation
NOTES
1.7 W at 20°C (68°F) ambient
1. All values at 20°C (68°F).
Temperature Rise
Max. Temperature
26°C (47°F) at nominal coil voltage
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
130°C (266°F)
9/25/07W
