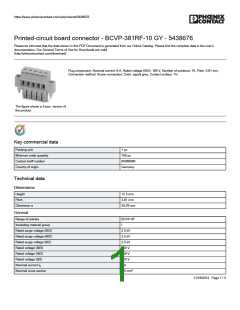

Printed-circuit board connector - BCVP-381RF-10 GY - 5438676
Technical data
General
Maximum load current
8 A (with 1.5 mm² conductor cross section)
Insulating material
PA
V0
10
Inflammability class according to UL 94
Number of positions
Connection data
Conductor cross section solid min.
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max. 1.5 mm²
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
Conductor cross section AWG/kcmil min.
0.25 mm²
0.5 mm²
24
Conductor cross section AWG/kcmil max
16
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
0.2 mm²
0.5 mm²
0.2 mm²
0.75 mm²
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
0.25 mm²
0.34 mm²
0.5 mm²
0.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
sleeve, max.
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27261101
27440401
27440401
