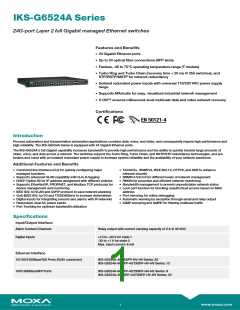

IKS-G6524A Series
24G-port Layer 2 full Gigabit managed Ethernet switches
Features and Benefits
• 24 Gigabit Ethernet ports
• Up to 24 optical fiber connections (SFP slots)
• Fanless, -40 to 75°C operating temperature range (T models)
• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and
STP/RSTP/MSTP for network redundancy
• Isolated redundant power inputs with universal 110/220 VAC power supply
range
• Supports MXstudio for easy, visualized industrial network management
• V-ON™ ensures millisecond-level multicast data and video network recovery
Certifications
Introduction
Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and
high reliability. The IKS-G6524A Series is equipped with 24 Gigabit Ethernet ports.
The IKS-G6524A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of
video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and are
fanless and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
Additional Features and Benefits
• Command line interface (CLI) for quickly configuring major
managed functions
• TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance
network security
• Supports advanced VLAN capability with Q-in-Q tagging
• DHCP Option 82 for IP address assignment with different policies
• Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for
device management and monitoring
• IEEE 802.1Q VLAN and GVRP protocol to ease network planning
• QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
• Digital inputs for integrating sensors and alarms with IP networks
• Redundant, dual AC power inputs
• SNMPv1/v2c/v3 for different levels of network management
• RMON for proactive and efficient network monitoring
• Bandwidth management to prevent unpredictable network status
• Lock port function for blocking unauthorized access based on MAC
address
• Port mirroring for online debugging
• Automatic warning by exception through email and relay output
• IGMP snooping and GMRP for filtering multicast traffic
• Port Trunking for optimum bandwidth utilization
Specifications
Input/Output Interface
Alarm Contact Channels
Relay output with current carrying capacity of 2 A @ 30 VDC
Digital Inputs
+13 to +30 V for state 1
-30 to +1 V for state 0
Max. input current: 8 mA
Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector)
IKS-G6524A-4GTXSFP-HV-HV Series: 20
IKS-G6524A-8GSFP-4GTXSFP-HV-HV Series: 12
100/1000BaseSFP Ports
IKS-G6524A-8GSFP-4GTXSFP-HV-HV Series: 8
IKS-G6524A-20GSFP-4GTXSFP-HV-HV Series: 20
1
www.moxa.com
Combo Ports (10/100/1000BaseT(X) or 100/
1000BaseSFP+)
4
Standards
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet Software Features
Management
ARP, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/
Client, IPv4/IPv6, LLDP, Port Mirror, RMON, SNMP Inform, SNMPv1/v2c/v3, Syslog,
Telnet, TFTP, SMTP, RARP, Flow control
Filter
802.1Q, GMRP, GVRP, IGMP v1/v2/v3
Redundancy Protocols
Security
Link Aggregation, MSTP, RSTP, Turbo Chain, Turbo Ring v1/v2, V-ON
Access control list, Broadcast storm protection, HTTPS/SSL, MAB authentication,
Sticky MAC, NTP authentication, Port Lock, RADIUS, SSH, TACACS+
Time Management
Industrial Protocols
MIB
NTP Server/Client, SNTP
EtherNet/IP, Modbus TCP, PROFINET
Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB
Groups 1, 2, 3, 9, RSTP MIB
Switch Properties
DRAM
128 MB
16 MB
4096
Flash
IGMP Groups
Jumbo Frame Size
MAC Table Size
Max. No. of VLANs
Packet Buffer Size
VLAN ID Range
Priority Queues
9.6 KB
16 K
256
12 Mbits
VID 1 to 4094
8
USB Interface
Storage Port
USB Type A
Serial Interface
Console Port
USB-serial console (Type B connector)
Power Parameters
Input Voltage
110 to 220 VAC, Redundant dual inputs
85 to 264 VAC
Operating Voltage
2
www.moxa.com
Overload Current Protection
Reverse Polarity Protection
Input Current
Supported
Supported
0.67/0.38 A @ 110/220 VAC
Physical Characteristics
IP Rating
IP30
Dimensions
Weight
440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in)
5100 g (11.25 lb)
Installation
Rack mounting
Environmental Limits
Operating Temperature
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
Ambient Relative Humidity
-40 to 75°C (-40 to 167°F)
5 to 95% (non-condensing)
Standards and Certifications
Safety
EN 60950-1, UL 60950-1
EN 55032/24
EMC
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Railway
Freefall
Shock
EN 50121-4
IEC 60068-2-32
IEC 60068-2-27
IEC 60068-2-6
Vibration
MTBF
Time
460,854 hrs
Standards
Telcordia (Bellcore), GB
Warranty
Warranty Period
5 years
Details
See www.moxa.com/warranty
Package Contents
Device
1 x IKS-G6524A Series switch
Cable
1 x USB type A male to USB type B male
Installation Kit
2 x rack-mounting ear
8 x cap, plastic, for SFP slot (IKS-G6524A-4GTXSFP-HV-HV Series)
16 x cap, plastic, for SFP slot (IKS-G6524A-8GSFP-4GTXSFP-HV-HV Series)
28 x cap, plastic, for SFP slot (IKS-G6524A-20GSFP-4GTXSFP-HV-HV Series)
3
www.moxa.com
Power Supply
Documentation
Note
1 x power cord, EU type
1 x power cord, US type
1 x document and software CD
1 x warranty card
SFP modules need to be purchased separately for use with this product.
Dimensions
Ordering Information
Combo Ports
10/100/1000BaseT(X)
or 100/1000BaseSFP+
10/100/1000BaseT(X)
Ports
RJ45 Connector
100/1000Base SFP
Slots
Model Name
Layer
Operating Temp.
IKS-G6524A-4GTXSFP-HV-
HV
2
2
2
2
2
2
4
4
4
4
4
4
–
8
20
12
–
-10 to 60°C
-10 to 60°C
-10 to 60°C
-40 to 75°C
-40 to 75°C
-40 to 75°C
IKS-G6524A-8GSFP-
4GTXSFP-HV-HV
IKS-G6524A-20GSFP-
4GTXSFP-HV-HV
20
–
IKS-G6524A-4GTXSFP-HV-
HV-T
20
12
–
IKS-G6524A-8GSFP-
4GTXSFP-HV-HV-T
8
IKS-G6524A-20GSFP-
4GTXSFP-HV-HV-T
20
Accessories (sold separately)
Storage Kits
ABC-02-USB
Configuration backup and restoration tool, firmware upgrade, and log file storage tool for managed
Ethernet switches and routers, 0 to 60°C operating temperature
SFP Modules
SFP-1FELLC-T
SFP module with 1 100Base single-mode with LC connector for 80 km transmission, -40 to 85°C
operating temperature
SFP-1FEMLC-T
SFP module with 1 100Base multi-mode with LC connector for 4 km transmission, -40 to 85°C
operating temperature
4
www.moxa.com
SFP-1FESLC-T
SFP-1G10ALC
SFP-1G10ALC-T
SFP-1G10BLC
SFP-1G10BLC-T
SFP-1G20ALC
SFP-1G20ALC-T
SFP-1G20BLC
SFP-1G20BLC-T
SFP-1G40ALC
SFP-1G40ALC-T
SFP-1G40BLC
SFP-1G40BLC-T
SFP-1GEZXLC
SFP-1GEZXLC-120
SFP-1GLHLC
SFP module with 1 100Base single-mode with LC connector for 40 km transmission, -40 to 85°C
operating temperature
WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX
1310 nm, RX 1550 nm, 0 to 60°C operating temperature
WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX
1310 nm, RX 1550 nm, -40 to 85°C operating temperature
WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX
1550 nm, RX 1310 nm, 0 to 60°C operating temperature
WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX
1550 nm, RX 1310 nm, -40 to 85°C operating temperature
WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX
1310 nm, RX 1550 nm, 0 to 60°C operating temperature
WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX
1310 nm, RX 1550 nm, -40 to 85°C operating temperature
WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX
1550 nm, RX 1310 nm, 0 to 60°C operating temperature
WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX
1550 nm, RX 1310 nm, -40 to 85°C operating temperature
WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX
1310 nm, RX 1550 nm, 0 to 60°C operating temperature
WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX
1310 nm, RX 1550 nm, -40 to 85°C operating temperature
WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX
1550 nm, RX 1310 nm, 0 to 60°C operating temperature
WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX
1550 nm, RX 1310 nm, -40 to 85°C operating temperature
SFP module with 1 1000BaseEZX port with LC connector for 110 km transmission, 0 to 60°C operating
temperature
SFP module with 1 1000BaseEZX port with LC connector for 120 km transmission, 0 to 60°C operating
temperature
SFP module with 1 1000BaseLH port with LC connector for 30 km transmission, 0 to 60°C operating
temperature
SFP-1GLHLC-T
SFP-1GLHXLC
SFP-1GLHXLC-T
SFP-1GLSXLC
SFP-1GLSXLC-T
SFP-1GLXLC
SFP module with 1 1000BaseLH port with LC connector for 30 km transmission, -40 to 85°C operating
temperature
SFP module with 1 1000BaseLHX port with LC connector for 40 km transmission, 0 to 60°C operating
temperature
SFP module with 1 1000BaseLHX port with LC connector for 40 km transmission, -40 to 85°C
operating temperature
SFP module with 1 1000BaseLSX port with LC connector for 500 m transmission, 0 to 60°C operating
temperature
SFP module with 1 1000BaseLSX port with LC connector for 500 m transmission, -40 to 85°C
operating temperature
SFP module with 1 1000BaseLX port with LC connector for 10 km transmission, 0 to 60°C operating
temperature
SFP-1GLXLC-T
SFP-1GSXLC
SFP module with 1 1000BaseLX port with LC connector for 10 km transmission, -40 to 85°C operating
temperature
SFP module with 1 1000BaseSX port with LC connector for 300/550 m transmission, 0 to 60°C
operating temperature
SFP-1GSXLC-T
SFP-1GZXLC
SFP module with 1 1000BaseSX port with LC connector for 300/550 m transmission, -40 to 85°C
operating temperature
SFP module with 1 1000BaseZX port with LC connector for 80 km transmission, 0 to 60°C operating
temperature
SFP-1GZXLC-T
SFP-1GTXRJ45-T
SFP module with 1 1000BaseZX port with LC connector for 80 km transmission, -40 to 85°C operating
temperature
SFP module with 1 1000BaseT port with RJ45 connector for 100 m transmission, -40 to 75°C operating
temperature
5
www.moxa.com
Power Cords
PWC-C13AU-3B-183
PWC-C13CN-3B-183
PWC-C13EU-3B-183
PWC-C13UK-3B-183
PWC-C13US-3B-183
PWC-C7AU-2B-183
PWC-C7EU-2B-183
PWC-C7UK-2B-183
PWC-C7US-2B-183
Power cord with Australian (AU) plug, 1.83 m
Power cord with three-prong China (CN) plug, 1.83 m
Power cord with Continental Europe (EU) plug, 1.83 m
Power cord with United Kingdom (UK) plug, 1.83 m
Power cord with United States (US) plug, 1.83 m
Power cord with Australian (AU) plug, 2.5A/250V, 1.83 m
Power cord with Continental Europe (EU) plug, 2.5A/250V, 1.83 m
Power cord with United Kingdom (UK) plug, 2.5A/250V, 1.83 m
Power cord with United States (US) plug, 10A/125V, 1.83 m
Software
MXview-50
Industrial network management software with a license for 50 nodes (by IP address)
Industrial network management software with a license for 100 nodes (by IP address)
Industrial network management software with a license for 250 nodes (by IP address)
Industrial network management software with a license for 500 nodes (by IP address)
Industrial network management software with a license for 1000 nodes (by IP address)
Industrial network management software with a license for 2000 nodes (by IP address)
License expansion of MXview industrial network management software by 50 nodes (by IP address)
MXview-100
MXview-250
MXview-500
MXview-1000
MXview-2000
MXview Upgrade-50
© Moxa Inc. All rights reserved. Updated Aug 06, 2019.
This document and any portion thereof may not be reproduced or used in any manner whatsoever without the express written permission of
Moxa Inc. Product specifications subject to change without notice. Visit our website for the most up-to-date product information.
6
www.moxa.com
厂商 型号 描述 页数 下载

ETC

 		IKS-0505 模拟IC\n[ Analog IC ] 1 页

ETC

 		IKS-1205 模拟IC\n[ Analog IC ] 1 页

ETC

 		IKS-2405 模拟IC\n[ Analog IC ] 1 页

ETC

 		IKS-2412 模拟IC\n[ Analog IC ] 1 页

MOXA

 		IKS-6728A [ 244G-port Gigabit modular managed PoE Ethernet switches ] 7 页

MOXA

 		IKS-6728A-4GTXSFP-24-24-T [ 244G-port Gigabit modular managed PoE Ethernet switches ] 7 页

MOXA

 		IKS-6728A-4GTXSFP-24-T [ 244G-port Gigabit modular managed PoE Ethernet switches ] 7 页

MOXA

 		IKS-6728A-4GTXSFP-48-48-T [ 244G-port Gigabit modular managed PoE Ethernet switches ] 7 页

MOXA

 		IKS-6728A-4GTXSFP-48-T [ 244G-port Gigabit modular managed PoE Ethernet switches ] 7 页

MOXA

 		IKS-6728A-4GTXSFP-HV-HV-T [ 244G-port Gigabit modular managed PoE Ethernet switches ] 7 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.242980s
