LY3F

型号：

LY3F

描述：

通用继电器[ General Purpose Relay ]

品牌：

OMRON[ OMRON ELECTRONICS LLC ]

页数：

15 页

PDF大小：

434 K

下载PDF手册

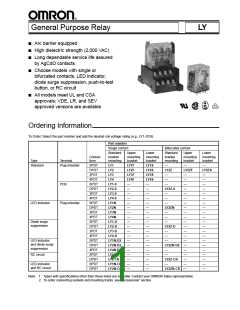

General Purpose Relay
LY
■ Arc barrier equipped
■ High dielectric strength (2,000 VAC)
■ Long dependable service life assured
by AgCdO contacts
■ Choose models with single or
bifurcated contacts, LED indicator,
diode surge suppression, push-to-test
button, or RC circuit
■ All models meet UL and CSA
approvals; VDE, LR, and SEV
approved versions are available
V
D
E
Ordering Information
To Order: Select the part number and add the desired coil voltage rating (e.g., LY1-DC6).
Part number
Single contact
Bifurcated contact
Standard
bracket
mounting
Upper
mounting
bracket
Lower
mounting
bracket
Standard
bracket
mounting
Upper
mounting
bracket
Lower
mounting
bracket
Contact
form
Type
Terminal
Standard
Plug-in/solder
SPDT
DPDT
3PDT
4PDT
SPDT
DPDT
3PDT
4PDT
SPDT
DPDT
3PDT
4PDT
SPDT
DPDT
3PDT
4PDT
SPDT
DPDT
4PDT
SPDT
DPDT
SPDT
DPDT
LY1
LY1F
LY2F
LY3F
LY4F
—
LY1S
LY2S
LY3S
LY4S
—
—
—
LY2ZF
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
LY2ZS
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
LY2
LY2Z
LY3
—
LY4
—
PCB
LY1-0
LY2-0
LY3-0
LY4-0
LY1N
—
—
—
LY2Z-0
—
—
—
—
—
—
LED indicator
Plug-in/solder
—
—
—
LY2N
—
—
LY2ZN
LY3N
—
—
—
LY4N
—
—
—
Diode surge
suppression
LY1-D
LY2-D
LY3-D
LY4-D
LY1N-D2
LY2N-D2
LY4N-D2
LY1-CR
LY2-CR
LY1N-CR
LY2N-CR
—
—
—
—
—
LY2Z-D
—
—
—
—
—
—
LED indicator
and diode surge
suppression
—
—
—
—
—
LY2ZN-D2
—
—
—
RC circuit
—
—
—
—
—
LY2Z-CR
—
LED indicator
and RC circuit
—
—
—
—
LY2ZN-CR
Note: 1. Types with specifications other than those listed are available. Contact your OMRON Sales representative.
2. To order connecting sockets and mounting tracks, see “Accessories” section.
LY
LY
Ordering Information,continued
Part number
Single contact
Bifurcated contact
Standard
bracket
mounting
Upper
mounting
bracket
Lower
mounting
bracket
Standard
bracket
mounting
Upper
mounting
bracket
Lower
mounting
bracket
Contact
form
Type
Terminal
Push-to-test
button
Plug-in/solder
SPDT
DPDT
3PDT
4PDT
DPDT
4PDT
LY1l4
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
LY2l4
LY2Zl2
—
LY3l4
LY4l4
LY2l4N
LY4l4N
—
LED indicator and Plug-in/solder
push-to-test button
LY2Zl2N
—
Note: 1. Types with specifications other than those listed are available. Contact your OMRON Sales representative.
2. To order connecting sockets and mounting tracks, see “Accessories” section.
■ ACCESSORIES
Connecting Sockets
To Order: Select the appropriate part numbers for sockets, clips, and mounting tracks (if required) from the following charts.
Track mounted sockets
Relay hold-down clip
Relay
SPDT
DPDT
3PDT
4PDT
Socket*
Standard
RC circuit
Mounting track
PTF08A-E
PYC-A1
Y92H-3
PFP-100N/PFP-50N &
PFP-M or PFP-100N2
PFP-S (Option spacer)
PTF11A
PTF14A-E
* Track mounted socket can be used as a front connecting socket.
Back connecting sockets
Solder
terminal
socket
Wire wrap
terminal
socket
Relay hold-down clip
Standard Push-to-test RC circuit
PYC-P2 PYC-1
Socket Mounting Plate
Relay
Mtg. plate
1
10
12
18
SPDT
DPDT
PT08
PT08QN PYC-P
PYC-S
PYP-1
–
–
PYP-18
3PDT
4PDT
PT11
PT14
PT11QN
PT14QN
PTP-1-3
PTP-1
–
PTP-12
–
–
–
PTP-10
Note: Types PYP-18, PTP-12 and PTP-10 may be cut to any desired length.
Relay hold-down clip
Relay
SPDT
DPDT
3PDT
4PDT
PC terminal socket
Standard
Push-to-test
PYC-P2
RC circuit
PYC-1
PT08-0
PYC-P
PT11-0
PT14-0
2
LY
LY
Specifications
■ CONTACT DATA
Single contact
Bifurcated contact
DPDT
SPDT
DPDT, 3PDT, 4PDT
Resistive load
(p.f. = 1)
Inductive load
(p.f. = 0.4)
Resistive load
(p.f. = 1)
Inductive load
(p.f. = 0.4)
Resistive load
(p.f. = 1)
Inductive load
(p.f. = 0.4)
Load
(L/R = 7 ms)
(L/R = 7 ms)
(L/R = 7 ms)
Rated load
15 A at 110 VAC 10 A at 110 VAC 10 A at 110 VAC 7.5 A at 110 VAC 5 A at 110 VAC
4 A at 110 VAC
4 A at 24 VDC
15 A at 24 VDC
7 A at 24 VDC
10 A at 24 VDC
5 A at 24 VDC
5 A at 24 VDC
Contact material
Carry current
AgCdO
15 A
10 A
7 A
Max. operating
voltage
250 VAC
125 VDC
Max. operating
current
15 A
10 A
7 A
Max. switching
capacity
1,700 VA
360 W
1,100 VA
170 W
1,100 VA
240 W
830 VA
120 W
550 VA
120 W
440 VA
100 W
Min. permissible
load
100 mA, 5 VDC
10 mA, 5 VDC
■ COIL DATA
1- and 2-pole types – AC
Coil inductance
Coil
resistance
(Ω)
(ref. value) (H)
Pick-up
voltage
Dropout
voltage
Maximum
voltage
Power
consumption
(VA, W)
Rated current (mA)
Rated
voltage (V)
Armature Armature
50 Hz
214.10
106.50
53.80
25.70
60 Hz
183
91
OFF
ON
(% of rated voltage)
6
12.20
46
0.04
0.08
80% max. 30% min.
110%
Approx.
1.00 to 1.20
(60 Hz)
12
0.17
0.33
24
46
180
0.69
1.30
50
22
788
3.22
5.66
100/110
110/120
200/220
220/240
11.70/12.90 10/11
3,750
14.54
19.20
54.75
83.50
24.60
32.10
94.07
136.40
Approx.
0.90 to 1.10
(60 Hz)
9.90/10.80
6.20/6.80
4.80/5.30
8.40/9.20 4,430
5.30/5.80 12,950
4.20/4.60 18,790
1- and 2-pole types – DC
Coil inductance
(ref. value) (H)
Coil
resistance
(Ω)
Pick-up
voltage
Dropout
voltage
Maximum
voltage
Power
consumption
(VA, W)
Rated
Armature Armature
voltage (V) Rated current (mA)
OFF
ON
(% of rated voltage)
6
150
40
0.16
0.33
1.37
5.72
21
80% max. 10% min.
110%
Approx.
0.90
12
75
160
0.73
3.20
24
36.90
18.50
9.10/10
650
48
2,600
11,000
10.60
45.60
100/110
86.20
Note: 1. The rated current and coil resistance are measured at a coil temperature of 23°C (73°F) with tolerances of +15%, -20% for
AC rated current, and ±15% for DC rated coil resistance.
2. The AC coil resistance and inductance are reference values at 60 Hz.
3. The performance characteristics are measured at a coil temperature of 23°C (73°F).
4. Class B coil insulation is available.
3
LY
LY
■ COIL DATA(continued)
3-pole type – AC
Coil inductance
(ref. value) (H)
Coil
resistance
(Ω)
Pick-up
voltage
Dropout
voltage
Maximum
voltage
Power
consumption
(VA, W)
Rated current (mA)
Rated
voltage (V)
Armature Armature
50 Hz
310
159
80
60 Hz
270
134
67
OFF
ON
(% of rated voltage)
6
6.70
24
0.03
0.05
80% max. 30% min.
110%
Approx.
1.60 to 2.00
(60 Hz)
12
0.12
0.21
24
100
410
0.44
0.79
50
38
33
2.24
3.87
100/110
120
200/220
240
15.90/18.30 13.60/15.60 2,300
10.50
11.50
34.80
38.60
18.50
20.60
59.50
74.60
17.30
10.50/11.60 9.00/9.90
9.40
14.8
2,450
8,650
10,400
8
3-pole type – DC
Coil inductance
(ref. value) (H)
Coil
resistance
(Ω)
Pick-up
voltage
Dropout
voltage
Maximum
voltage
Power
consumption
(VA, W)
Rated
Armature Armature
voltage (V) Rated current (mA)
OFF
0.11
0.45
1.89
8.53
29.60
ON
(% of rated voltage)
6
234
25.70
107
0.21
0.98
3.87
13.90
54.30
80% max. 10% min.
110%
Approx.
1.40
12
112
24
58.60
28.20
12.70/13
410
48
1,700
8,500
100/110
4-pole type – AC
Coil inductance
(ref. value) (H)
Coil
resistance
(Ω)
Pick-up
voltage
Dropout
voltage
Maximum
voltage
Power
consumption
(VA, W)
Rated current (mA)
Rated
voltage (V)
Armature Armature
50 Hz
386
60 Hz
330
170
80
OFF
0.02
0.10
0.38
1.74
10.50
9.30
33.10
33.20
ON
(% of rated voltage)
6
5
0.04
0.17
0.67
2.88
17.30
19
80% max. 30% min.
110%
Approx.
1.95 to 2.50
(60 Hz)
12
199
20
24
93.60
46.80
78
50
40
350
1,800
2,200
100/110
120
200/220
240
22.50/25.50 19/21.80
19.00 16.40
11.50/13.10 9.80/11.20 6,700
57.90
63.40
11.00
9.50
9,000
4-pole type – DC
Coil inductance
(ref. value) (H)
Coil
resistance
(Ω)
Pick-up
voltage
Dropout
voltage
Maximum
voltage
Power
consumption
(VA, W)
Rated
Armature Armature
voltage (V) Rated current (mA)
OFF
0.09
0.39
1.41
6.39
32
ON
(% of rated voltage)
6
240
25
0.21
0.84
2.91
13.60
63.70
80% max. 10% min.
110%
Approx.
1.50
12
120
100
24
69
350
48
30
1,600
6,900
100/110
15/15.90
Note: 1. The rated current and coil resistance are measured at a coil temperature of 23°C (73°F) with tolerances of +15%, -20% for
AC rated current, and ±15% for DC rated coil resistance.
2. The AC coil resistance and inductance are reference values at 60 Hz.
3. The performance characteristics are measured at a coil temperature of 23°C (73°F).
4. Class B coil insulation is available.
4
LY
LY
■ CHARACTERISTICS
Contact resistance
Operate time
50 mΩ max.
25 ms max.
Release time
25 ms max.
Operating frequency
Mechanically
18,000 operations/hour
1,800 operations/hour
100 MΩ min. (at 500 VDC)
Under rated load
Insulation resistance
Dielectric strength
2,000 VAC, 50/60 Hz for 1 minute
1,000 VAC, 50/60 Hz for 1 minute between contacts of same polarity
Vibration
Shock
Mechanical durability
Malfunction durability
Mechanical durability
Malfunction durability
Operating
10 to 55 Hz, 1.00 mm (0.04 in) double amplitude
10 to 55 Hz, 1.00 mm (0.04 in) double amplitude
1,000 m/s2 (approx. 100 G)
200 m/s2 (approx. 20 G)
Ambient temperature
Humidity
-40° to 70°C (-40° to 158°F)
35 to 85% RH
Service Life
Mechanically
Electrically
AC: 50 million operations min. (at operating frequency of 18,000 operations/hour)
DC: 100 million operations min. (at operating frequency of 18,000 operations/hour)
See “Characteristic Data”
Weight
SPDT, DPDT: Approx. 40 g (1.41 oz), 3PDT: Approx. 50 g (1.76 oz)
4PDT: Approx. 70 g (2.47 oz)
Note: Data shown are of initial value.
■ CHARACTERISTIC DATA
Maximum switching capacity
LY1
LY2
LY3, LY4
LY2Z
Rated operating voltage (V)
Rated operating voltage (V)
Rated operating voltage (V)
Rated operating voltage (V)
Electrical service life
LY1
LY2
LY3, LY4
LY2Z
Rated operating current (A)
Rated operating current (A)
Rated operating current (A)
Rated operating current (A)
5
LY
LY
Dimensions
Unit: mm (inch)
■ RELAYS
LY1
Terminal
LY2
Terminal
arrangement
(Bottom view)
arrangement
(Bottom view)
LY3
Terminal
LY4
Terminal
arrangement
arrangement
(Bottom view)
(Bottom view)
LY1-0, LY2-0, LY3-0, LY4-0
Mounting holes for LY1-0, LY2-0, LY3-0, LY4-0
(Bottom view)
Note: The above drawing shows LY2-0. With LY1-0,
SPDT
DPDT
3PDT
4PDT
dimension " " should read as 6.35 (.25).
*
LY1F, LY2F
Mounting
holes
LY3F
Mounting
holes
Note: The above drawing shows LY1F. With LY2F, dimension “ ”
*
should read as eight 3.05 mm (0.12 in) dia. holes.
6
LY
LY
LY4F
Mounting holes
LY1S, LY2S
Round hole
Rectangular hole
Note: The above drawing shows LY2S-US. With LY1S-US, dimension “ ”
*
should read as eight 2.03 mm (0.08 in) dia. holes.
LY3S
Round hole
Rectangular hole
LY4S
Round hole
Rectangular hole
7
LY
LY
■ ACCESSORIES
Unit: mm (inch)
Track mounted sockets (UL File No. E87929) (CSA Report No. LR31928)
PTF08A-E
Terminal arrangement/
mounting holes
(Top view)
PTF11A
Terminal arrangement/
mounting holes
(Top view)
Track mounting sockets (UL File No. E87929) (CSA Report No. LR31928)
PTF14A-E
Terminal arrangement/
mounting holes
(Top view)
Mounting height of
relay with socket
(Applies to all PTF■A sockets)
Note: 1. UL/CSA does not apply to wire wrap (Q) type sockets.
2. Values in brackets for LY■CR.
Back connecting socket (UL File No. E87929) (CSA Report No. LR31928)
PT08
Terminal arrangement
(Bottom view)
PT11
Terminal arrangement
(Bottom view)
8
LY
LY
Back connecting socket (UL File No. E87929) (CSA Report No. LR31928)
PT14
Terminal arrangement
Mounting height of relay with socket
(Bottom view)
(Applies to all PT sockets)
PT
Note: Values in brackets for LY■CR.
Back connecting socket (UL File No. E87929) (CSA Report No. LR31928)
PT08QN
PT11QN
PT14QN
Panel cut-out and terminal
arrangement are the same
as Type PT08.
Panel cut-out and terminal
arrangement are the same
as Type PT11.
Panel cut-out and terminal
arrangement are the same
as Type PT14.
Back connecting socket (UL File No. E87929) (CSA Report No. LR31928)
PT08-0
Mounting holes
PT11-0
Mounting holes
Terminal arrangement is
the same as Type PT08.
(Bottom view)
Terminal arrangement is
the same as Type PT11.
(Bottom view)
Back connecting socket (UL File No. E87929) (CSA Report No. LR31928)
PT14-0
Mounting holes
Terminal arrangement is
the same as Type PT14.
(Bottom view)
9
LY
LY
■ ACCESSORIES (continued)
Unit: mm (inch)
Relay hold-down clips
PYC-A1
PYC-S
PYC-P
For PTF■A socket
For relay mounting plates
(Applicable to Type PYP-1 and PYP-18
socket mounting plates only.)
For PT■ socket
Relay hold-down clips
PYC-P2
Y92H-3
PYC-1
For push-to-test button type with
PT■ socket
For RC circuit type
For RC circuit type
Mounting track/end plate/spacer
PFP-100N/PFP-50N mounting track
PFP-M end plate
10
LY
LY
PFP-100N2 mounting track
PFP-S spacer
* This dimension is 14.99 mm (0.59 in) on both ends in the case of PFP-100N, but on one end in the case of PFP-50N.
** L = Length
PFP-50N
............... L = 497.84 mm (19.60 in)
PFP-100N ............... L = 990.60 mm (39.00 in)
PFP-100N2 ............... L = 990.60 mm (39.00 in)
*** A total of twelve 24.89 x 4.57 mm (0.98 x 0.18 in) elliptic holes are provided, with six holes cut from each end of the track at a pitch
of 9.91 (0.39) between holes.
Socket mounting plates [t=1.52 (.06)]
Number of socket specs.
Socket needed
PT08, PT08QN
PT11, PT11QN
PT14, PT14QN
1
10
12
18
PYP-1
PTP-1-3
PTP-1
–
–
PYP-18
–
PTP-1-2
–
_
–
PTP-10
PYP-1
PTP-1-3
PTP-1
PYP-18
PTP-10
PTP-12
11
LY
LY
■ RELAY OPTIONS
LED Indicator
Specifications and dimensions same as the Standard Type with the following exception. With the LED indicator type, the rated current
is approximately 0 to 5.0 mA higher than the Standard Type.
Terminal arrangement/Internal connections (Bottom view)
LY2N
DC coil rating type
AC coil rating type
Note: 1. The coil terminals 10 and 11 of Type LY3N become (-) and (+) and terminals 13 and 14 of Type LY4N become (-) and (+),
respectively.
2. Pay special attention to the polarities when using the DC type.
Diode Surge Suppression
Specifications and dimensions same as the Standard Type with the following exception. Ambient operating temperature: -25° to 40°C
(-13° to 104°F)
Without Diode
With Diode
Terminal arrangement/Internal connections (Bottom view)
LY2(N)-D(2)
LY2-D
LY2N-D2
LY2N-D2
6, 12, 24, 48
100/110 VDC
6, 12, 24, 48 VDC
100/110 VDC
Note: 1. Pay special attention to the polarities when using the DC type.
2. The release time is somewhat longer, but satisfies the standard specifications of 25 ms.
3. The reverse-breakdown voltage of the diode is 1,000 VDC.
4. Available on DC versions only.
12
LY
LY
■ RELAY OPTIONS
RC Circuit
Specifications and dimensions same as the Standard Type with the following exceptions.
Characteristic Data
Without RC circuit
With RC circuit
LY1-CR, LY2(Z)-CR
Terminal arrangement/Internal connections (Bottom view)
LY1-CR
LY2(Z)-CR
Note: 1. The above drawing shows LY2(Z)-CR. With LY1-CR, “ ” should read eight 2.03 mm (0.08 in) dia. holes.
*
2. Available on AC versions only.
Push-to-test Button
Specifications and dimensions same as the Standard Type with the following exceptions.
LY■12
LY112, LY212
Note: Type LY112 has the same dimensions and appearances as Type LY212 shown except that dimension “ ” is 2.03 mm (0.08 in)
*
dia. holes
LY312
LY412
13
LY
LY
■ APPROVALS
UL recognized type (File No. E41643)
Type
Contact form
SPDT
Coil ratings
Contact ratings
LY ■
6 to 240 VAC
6 to 120 VDC
15 A, 240 VAC (Inductive)
15 A, 28 VDC (Resistive)
TV-5 (ACTV)
1/2 HP, 120 VAC (Motor)
13 A, 120 VAC (Resistive)
12 A, 240 VAC (Inductive)
10 A, 28 VDC (Resistive)
TV-3 (ACTV)
LY ■
LY ■
DPDT
1/2 HP, 120 VAC (Motor)
10 A, 240 VAC (Inductive)
10 A, 28 VDC (Resistive)
1/2 HP, 240 VAC (Motor)
3PDT
4PDT
CSA certified type (File No. LR31928)
Type
Contact form
SPDT
Coil ratings
Contact ratings
LY ■
6 to 240 VAC
6 to 120 VDC
15 A, 120 VAC (Inductive)
10 A, 240 VAC (Inductive)
15 A, 28 VDC (Resistive)
TV-5 (ACTV)
LY ■
LY ■
DPDT
13 A, 28 VDC (Resistive)
12 A, 120 VAC (Inductive)
10 A, 240 VAC (Inductive)
1/3 HP, 120 VAC (Motor)
TV-3 (ACTV)
3PDT
4PDT
10 A, 240 VAC (Inductive)
10 A, 28 VDC (Resistive)
VDE approved type (File No. 9903 [SPDT, DPDT & 3PDT], File No. 9947 [4PDT])
Type
Contact form
SPDT
Coil ratings
Contact ratings
LY ■-VD
6, 12, 24, 50,
110, 220 VAC
and 6, 12, 24,
48, 110 VDC
10 A, 220 VAC (Resistive)
10 A, 28 VDC (Resistive)
7 A, 220 VAC (Inductive)
7 A, 28 VDC (Inductive)
7 A, 220 VAC (Resistive)
7 A, 28 VDC (Resistive)
4 A, 220 VAC (Inductive)
4 A, 28 VDC (Inductive)
LY ■-VD
DPDT
3PDT
4PDT
LR (Lloyd's Register) approved type (File No. 562KOB-204523)
Type
Contact form
DPDT
Coil ratings
Contact ratings
LY ■
6 to 240 VAC
6 to 110 VDC
7.5 A, 230 VAC (Inductive)
5 A, 24 VDC (Inductive)
4PDT
SEV listed type (File No. D7 91/82 [2- & 4-pole], D 91/204a [1- & 3-pole])
Type
Contact form
SPDT
Coil ratings
Contact ratings
LY ■-SV
6 to 240 VAC
6 to 110 VDC
15 A, 220 VAC (Resistive)
15 A, 24 VDC (Resistive)
10 A, 220 VAC (Resistive)
10 A, 24 VDC (Resistive)
LY ■-SV
DPDT
3PDT
4PDT
Note: 1. The rated values approved by each of the safety standards (e.g., UL, CSA, VDE, and SEV) may be different from the performance
characteristics individually defined in this catalog.
2. In the interest of product improvement, specifications are subject to change.
14
LY
LY
OMRON ELECTRONICS, INC.
One East Commerce Drive
Schaumburg, IL 60173
OMRON CANADA, INC.
885 Milner Avenue
Scarborough, Ontario M1B 5V8
1-800-55-OMRON
416-286-6465
Cat. No. GC RLY7
01/00
Specifications subject to change without notice.
Printed in the U.S.A.
15
厂商 型号 描述 页数 下载

OMRON

 		LY3 通用继电器[ General Purpose Relay ] 16 页

OMRON

 		LY3-0 通用继电器[ General Purpose Relay ] 15 页

OMRON

 		LY3-0-AC110 [ Power/Signal Relay, 3PDT, Momentary, 2000mW (Coil), 10A (Contact), 24VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount ] 16 页

OMRON

 		LY3-0-AC110/120 [ Power/Signal Relay, 3PDT, Momentary, 2000mW (Coil), 10A (Contact), 24VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount ] 16 页

OMRON

 		LY3-0-AC120 [ Power/Signal Relay, 3PDT, Momentary, 2000mW (Coil), 10A (Contact), 24VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount ] 16 页

OMRON

 		LY3-0-AC220 [ Power/Signal Relay, 3PDT, Momentary, 2000mW (Coil), 10A (Contact), 24VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount ] 16 页

OMRON

 		LY3-0-AC220/240 [ Power/Signal Relay, 3PDT, Momentary, 2000mW (Coil), 10A (Contact), 24VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount ] 16 页

OMRON

 		LY3-0-AC240 [ Power/Signal Relay, 3PDT, Momentary, 2000mW (Coil), 10A (Contact), 24VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount ] 16 页

OMRON

 		LY3-0-DC100/110 [ Power/Signal Relay, 3PDT, Momentary, 0.013A (Coil), 110VDC (Coil), 1400mW (Coil), 10A (Contact), 24VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ] 16 页

OMRON

 		LY3-0-DC110 [ Power/Signal Relay, 3PDT, Momentary, 0.013A (Coil), 110VDC (Coil), 1400mW (Coil), 10A (Contact), 24VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ] 16 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.160033s
