NX7561JB-BC

型号：

NX7561JB-BC

描述：

NEC的1550纳米的InGaAsP多量子阱FP脉冲激光二极管DIP封装用于OTDR应用（ 135毫瓦MIN ）[ NECs 1550 nm InGaAsP MQW FP PULSED LASER DIODE IN DIP PACKAGE FOR OTDR APPLICATION (135 mW MIN) ]

品牌：

CEL[ CALIFORNIA EASTERN LABS ]

页数：

4 页

PDF大小：

181 K

下载PDF手册

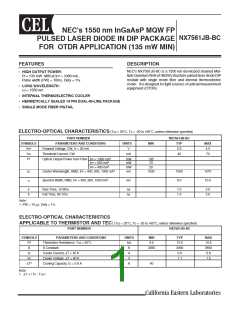

NEC's 1550 nm InGaAsP MQW FP
PULSED LASER DIODE IN DIP PACKAGE
FOR OTDR APPLICATION (135 mW MIN)
NX7561JB-BC
FEATURES
DESCRIPTION
NEC's NX7561JB-BC is a 1550 nm developed strained Mul-
tipleQuantumWell(st-MQW)structurepulsedlaserdiodeDIP
module with single mode fiber and internal thermoelectric
cooler. It is designed for light sources of optical measurement
equipment (OTDR).
• HIGH OUTPUT POWER:
Pf = 135 mW MIN at IFP = 1000 mA,
Pulse width (PW) = 10ms, Duty = 1%
• LONG WAVELENGTH:
λC = 1550 nm
• INTERNAL THERMOELECTRIC COOLER
• HERMETICALLY SEALED 14 PIN DUAL-IN-LINE PACKAGE
• SINGLE MODE FIBER PIGTAIL
ELECTRO-OPTICAL CHARACTERISTICS (TLD = 25°C, TC = -20 to +65°C, unless otherwise specified)
PART NUMBER
NX7561JB-BC
SYMBOLS
PARAMETERS AND CONDITIONS
UNITS
V
MIN
TYP
2.5
40
MAX
4.0
VFP
ITH
Pf
Forward Voltage, CW, IF = 30 mA
Threshold Current, CW
mA
70
Optical Output Power from Fiber IFP = 1000 mA1
IFP = 600 mA1
mW
mW
135
70
IFP = 400 mA1
Center Wavelength, RMS, IFP = 400, 600, 1000 mA1
mW
nm
20
λC
1530
1550
6.0
1570
10.0
σ
Spectral Width, RMS, IFP = 400, 600, 1000 mA1
nm
tr
tf
Rise Time, 10-90%
Fall Time, 90-10%
ns
ns
1.0
1.4
2.0
2.0
Note:
1. PW = 10 µs, Duty = 1%
ELECTRO-OPTICAL CHARACTERISTICS
APPLICABLE TO THERMISTOR AND TEC: (TLD = 25°C, TC = -20 to +65°C, unless otherwise specified)
PART NUMBER
NX7561JB-BC
SYMBOLS
PARAMETERS AND CONDITIONS
UNITS
MIN
9.5
TYP
10.0
3450
0.6
MAX
10.5
3550
0.8
R1
B
Thermistor Resistance, TLD = 25°C
kΩ
K
B Constant
3350
IC
Cooler Current, ∆T = 40 K
Cooler Voltage, ∆T = 40 K
Cooling Capacity, IC = 0.8 A
A
VC
∆T1
V
1.1
1.5
K
40
Note:
1. ∆T = | TC - TLD |.
California Eastern Laboratories
NX7561JB-BC
ABSOLUTE MAXIMUM RATINGS1
(TC = 25°C, unless otherwise specified)
ORDERING INFORMATION
PART NUMBER
DESCRIPTION
SYMBOLS
PARAMETERS
Pulsed Forward Current2
Reverse Voltage
UNITS RATINGS
NX7561JB-BC-AZ*
With FC-PC Connector
IFP
VR
IC
A
V
1.2
2.0
*Note:
Please refer to the last page of this data sheet. "Compliance with
EU Directives" for Pb-Free RoHS Compliance Information.
Cooler Current
A
1.0
VC
It
Cooler Voltage
V
2.0
Thermistor Current
Thermistor Voltage
Operating Case Temperature
Storage Temperature
mA
V
0.5
Vt
12.0
TC
°C
°C
°C
-20 to +65
-40 to +70
260
TSTG
TSLD
Lead Soldering
Temperature (10 sec)
Notes:
1. Operation in excess of any one of these parameters may result
in permanent damage.
2. Pulse Condition: Pulse Width (PW) = 10 µs, Duty = 1 %.
TYPICAL PERFORMANCE CURVES (TA = 25°C)
OPTICAL OUTPUT POWER FROM FIBER
vs. PULSED FORWARD CURRENT
SPECTRUM
300
PW = 10 µs,
Duty = 1%
PW = 10 µs
Duty = 1%
200
100
0
1530
1560
1580
200
400
600
800
1000
1200
Wavelength, λ (nm)
Pulsed Forward Current, IFP (mA)
THERMISTOR RESISTANCE vs.
CASE TEMPERATURE
50
30
20
10
5
3
2
1
0
25
50
75
Case Temperature, TC (°C)
Remark: The graphs indicate nominal characteristics.
NX7561JB-BC
OUTLINE DIMENSIONS (Units in mm)
21.3
5.1
20.8
1.0
ø3.2
4.0
BOTTOM VIEW
#14
#8
Thermistor
LD
Case
3.0
#7
#1
Optical Fiber
SM - 9/125
Length: 1 m TYP
PIN CONNECTIONS
PIN No.
FUNCTION
PIN No. FUNCTION
1
2
3
4
5
COOLER ANODE
NC
NC
NC
LASER ANODE,
CASE GROUND
NC
NC
8
9
10
NC
LASER CATHODE
LASER ANODE,
CASE GROUND
THERMISTOR
THERMISTOR
NC
φ 0.45
2.54
11
12
13
14
6
7
COOLER CATHODE
Life Support Applications
These NEC products are not intended for use in life support devices, appliances, or systems where the malfunction of these products can reasonably be expected
to result in personal injury. The customers of CEL using or selling these products for use in such applications do so at their own risk and agree to fully indemnify CEL
for all damages resulting from such improper use or sale.
03/03/2003
A Business Partner of NEC Compound Semiconductor Devices, Ltd.
4590 Patrick Henry Drive
Santa Clara, CA 95054-1817
Telephone: (408) 919-2500
Facsimile: (408) 988-0279
Subject: Compliance with EU Directives
CEL certifies, to its knowledge, that semiconductor and laser products detailed below are compliant
with the requirements of European Union (EU) Directive 2002/95/EC Restriction on Use of Hazardous
Substances in electrical and electronic equipment (RoHS) and the requirements of EU Directive
2003/11/EC Restriction on Penta and Octa BDE.
CEL Pb-free products have the same base part number with a suffix added. The suffix –A indicates
that the device is Pb-free. The –AZ suffix is used to designate devices containing Pb which are
exempted from the requirement of RoHS directive (*). In all cases the devices have Pb-free terminals.
All devices with these suffixes meet the requirements of the RoHS directive.
This status is based on CEL’s understanding of the EU Directives and knowledge of the materials that
go into its products as of the date of disclosure of this information.
Restricted Substance
per RoHS
Concentration Limit per RoHS
(values are not yet fixed)
Concentration contained
in CEL devices
-A
-AZ
Lead (Pb)
Mercury
< 1000 PPM
< 1000 PPM
< 100 PPM
< 1000 PPM
< 1000 PPM
< 1000 PPM
Not Detected
(*)
Not Detected
Cadmium
Hexavalent Chromium
PBB
Not Detected
Not Detected
Not Detected
Not Detected
PBDE
If you should have any additional questions regarding our devices and compliance to environmental
standards, please do not hesitate to contact your local representative.
Important Information and Disclaimer: Information provided by CEL on its website or in other communications concerting the substance
content of its products represents knowledge and belief as of the date that it is provided. CEL bases its knowledge and belief on information
provided by third parties and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better
integrate information from third parties. CEL has taken and continues to take reasonable steps to provide representative and accurate
information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. CEL and CEL
suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for
release.
In no event shall CEL’s liability arising out of such information exceed the total purchase price of the CEL part(s) at issue sold by CEL to
customer on an annual basis.
See CEL Terms and Conditions for additional clarification of warranties and liability.
3-180
