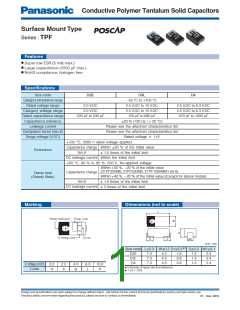

Conductive Polymer Tantalum Solid Capacitors
Surface Mount Type
Series : TPF
Features
●
Super low ESR (5 mΩ max.)
Large capacitance (1000 μF max.)
RoHS compliance, Halogen free
●
●
Specifications
Size code
D2E
D3L
–55 °C to +105 °C
D4
Category temperature range
Rated voltage range
2.0 V.DC
2.0 V.DC
2.5 V.DC to 10 V.DC
2.5 V.DC to 6.3 V.DC
2.5 V.DC to 6.3 V.DC
470 ꢀF to 1000 ꢀF
Category voltage range
Rated capacitance range
Capacitance tolerance
Leakage current
2.5 V.DC to 10 V.DC
220 ꢀF to 330 ꢀF
150 ꢀF to 680 ꢀF
20 ꢁ (120 Hz / + 20 °C)
Please see the attached characteristics list
Please see the attached characteristics list
Rated voltage × 1.15
Dissipation factor (tan d)
Surge voltage (V.DC)
+105 °C, 2000 h rated voltage applied
Capacitance change Within 20 ꢁ of the initial value
Endurance
tan d
< 1.5 times of the initial limit
DC leakage current Within the initial limit
+60 °C, 90 ꢁ to 95 ꢁ, 500 h, No-applied voltage
Within +50 ꢁ, −20 ꢁ of the initial value
(2TPF220M6, 2TPF330M6, ETPF1000M6H (5H))
Capacitance change
Damp heat
Within +40 ꢁ, −20 ꢁ of the initial value (Except for above model)
< 1.5 times of the initial limit
(Steady State)
tan d
DC leakage current
< 3 times of the initial limit
Marking
Dimensions (not to scale)
L
Polarity marking(+)
R.Cap. code
R. Voltage code
Lot. No.
W1
S
S
Unit : mm
✽1
Size code L 0.3 W 0.2 H 0.2
S 0.2 W1 0.1
D2E
D3L
D4
7.3
7.3
7.3
4.3
4.3
4.3
1.8
2.8
3.8
1.3
1.3
1.3
2.4
2.4
2.4
R. Voltage (V.DC)
2.0
d
2.5
e
4.0
g
6.3
j
10.0
A
Externals of figure are the reference.
✽
✽
Code
1
0.1 :D2E
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Nov. 2015
