5XRGB-F2-S

型号:

5XRGB-F2-S

品牌:

HB[ HB ELECTRONIC COMPONENTS ]

页数:

3 页

PDF大小:

160 K

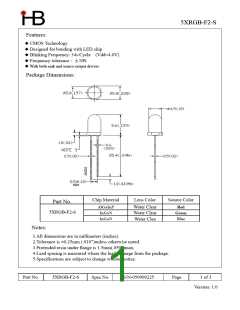

5XRGB-F2-S
Features:
CMOS Technology
Designed for bonding with LED chip
Blinking Frequency: 34s/Cycle (Vdd=4.0V)
Frequency tolerance : ±20%
With both sink and source output drivers
Package Dimensions:
Chip Material
Lens Color
Source Color
Part No.
AlGaInP
Red
Green
Blue
Water Clear
Water Clear
Water Clea
5XRGB-F2-S
InGaN
InGaN
Notes:
1.All dimensions are in millimeters (inches).
2.Tolerance is ±0.25mm (.010”)unless otherwise noted.
3.Protruded resin under flange is 1.5mm(.059”)max.
4.Lead spacing is measured where the leads emerge from the package.
5.Specifications are subject to change without notice.
Part No.
5XRGB-F2-S
Spec No.
S/N-050909225
Page
1 of 3
Version: 1.0
5XRGB-F2-S
Absolute Maximum Ratings at Ta=25℃
Light colorRedGreenBlue Color
z
Reverse current100 μA
z
z
z
Peak currentduty0.1,1KHz100 mA
Operating/Storage temperature range-30~ +85℃
Derating linear from 25℃:0.4 mA/℃
z Lead soldering temperature range260for 5 second
Electrical Optical Characteristics at Ta=25℃
RED COLOR:
Test
Condition
IF20 mA
Parameter
Forward voltage
Symbol Min
Typ.
2.00
Max Unit
2.25
™
2000
625
™
V
VF
IV
Luminous intensity
4000 mcd
640 nm
40 deg
IF20 mA
Peak emission wavelength
Half intensity angle
λp
△Θ
™
™
30
GREEN COLOR:
Test
Condition
IF20 mA
Parameter
Symbol Min
Typ.
3.5
Max Unit
Forward voltage
VF
IV
™
4
V
Luminous intensity
Peak emission wavelength
Half intensity angle
6000
9000 mcd
530 nm
40 deg
IF20 mA
λp
△Θ
520
30
™
™
™
BLUE COLOR:
Test
Condition
IF20 mA
Parameter
Forward voltage
Symbol Min
Typ.
3.5
Max Unit
™
2000
460
™
4
V
VF
IV
Luminous intensity
Peak emission wavelength
Half intensity angle
4000 mcd
475 nm
40 deg
IF20 mA
λp
△Θ
™
™
30
Direct Current Characteristics
Parameter
Symbol Min
Typ.
Max Unit
Remarks
Operating voltage
VDD
3.5
4.5
V
™
Driver Current
Iol
50
225
3.4
mA
mW
@V
DS=1.2V
Power Consumption
Flash Frequency
Po
VDD=4.5V
™
Hz External±30%
Ftet
*All specs and applications shown above subject to change without prior notice.
(以上电路及规格仅供参考,本公司可进行修正)
Part No.
5XRGB-F2-S
Spec No.
S/N-050909225
Page
2 of 3
Version: 1.0
Application diagram and Dimensions
Application Diagram
Dimensions
Note:
Unit:mm
Output Sketch Map
*All specs and applications shown above subject to change without prior notice.
(以上电路及规格仅供参考,本公司可进行修正)
Notes:
1. Luminous intensity is measured with a light sensor and filter combination that approximates
the CIE eye-response curve.
2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
3. The dominant wavelength (λP) is derived from the CIE chromaticity diagram and represents
the single wavelength which defines the color of the device.
Part No.
5XRGB-F2-S
Spec No.
S/N-050909225
Page
3 of 3
Version: 1.0
