PC81.07.0100A.DB

型号：

PC81.07.0100A.DB

品牌：

TAOGLAS[ Taoglas ]

页数：

8 页

PDF大小：

550 K

下载PDF手册

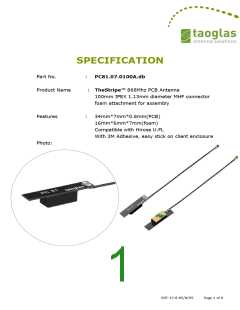

SPECIFICATION
Part No.
:
PC81.07.0100A.db
Product Name
: TheStripe™ 868Mhz PCB Antenna
100mm IPEX 1.13mm diameter MHF connector
foam attachment for assembly
Features
Photo:
:
34mm*7mm*0.8mm(PCB)
16mm*6mm*7mm(foam)
Compatible with Hirose U.FL
With 3M Adhesive, easy stick on client enclosure
SPE-12-8-85/B/SS
Page 1 of 8
1. Introduction
This miniaturized low profile PCB antenna is based on smart TheStripe™ antenna
technology. It consists of a PCB antenna and 1.13mm mini coaxial cable with Ipex MHF
(Hirose U.FL comp) connector. The PC81 comes with a foam attachement which has £M
adhesive on the underside which assists in palcing the antenna with sufficient clearance for
optimal performanace.
Cable lengths and connectors are fully customizable.
2. Specification
Parameter
Applications
Frequency Band
Efficiency
Electrical Specification
868MHz ISM Band
868-870MHz
50.46%
Return Loss
VSWR
<-10dB
<2.0:1
Impedance
Polarization
Radiation Pattern
Parameter
50 Ohm
Horizontal
Omni-Directional
Mechanical Specification
34mm*7mm*0.8mm(PCB)
16mm*6mm*7mm(foam)
Ø1.13 Coaxial Cable
100mm
Antenna Dimensions
Cable Type
Cable Length
Connector
IPEX MHFI(U.FL Compatible)
3M 9472
Adhesive
Foam
CR4305
Parameter
Environmental Specification
Operation Temperature
Storage Temperature
-40°C ~ +85°C
-40°C ~ +85°C
SPE-12-8-85/B/SS
Page 2 of 8
3. Mechanical Drawing
SPE-12-8-85/B/SS
Page 3 of 8
4. Antenna Test Setup and Results
4.1 Equipment
Radiation Pattern Testing - Anechoic
HORN
Standard Antenna
DUT Antenna
500 cm
8720 C
Network Analyzer
Rotator
SPE-12-8-85/B/SS
Page 4 of 8
4.2
Efficiency
PC.81 Efficiency Data
Band(MHz)
Gain
800
0.78
810
820
1.21
830
840
850
860
868
870
2.6
880
890
900
0.93
1.55
1.88
2.25
2.36
2.51
1.82
0.01
-2.56
Efficiency (%)
Efficiency dB
34.26 35.75 36.79 39.78 44.69 49.16 49.86 50.46 50.01 40.63 27.15 14.79
-4.65 -4.47 -4.34 -4 -3.5 -3.08 -3.02 -2.97 -3.01 -3.91 -5.66 -8.3
SPE-12-8-85/B/SS
Page 5 of 8
4.3
Radiation Patterns
4.3.1 E-Plane (Horizontal/Azimuth Plane)
SPE-12-8-85/B/SS
Page 6 of 8
4.3.2 H-Plane (Vertical/Elevation Plane)
SPE-12-8-85/B/SS
Page 7 of 8
5. Packaging
100 pcs per small PE Bag
10 small PE bags per large PE bag (1000pcs)
Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make
changes to specifications and product descriptions at any time without notice.
Taoglas reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without
express permission is strictly prohibited. Copyright © 2014, Taoglas Ltd.
SPE-12-8-85/B/SS
Page 8 of 8
