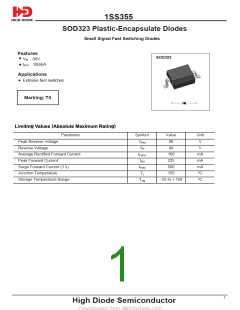

1SS355
SOD323 Plastic-Encapsulate Diodes
Small Signal Fast Switching Diodes
Features
SOD3 23
●
VR 80V
●
IFAV 100mA
Applications
●
Extreme fast switches
Marking: T4
Parameter
Symbol
VRM
VR
Value
Unit
V
Peak Reverse Voltage
Reverse Voltage
90
80
V
Average Rectified Forward Current
Peak Forward Current
IF(AV)
IFM
100
mA
mA
mA
225
Surge Forward Current (1 s)
Junction Temperature
IFSM
Tj
500
O
C
150
O
C
Storage Temperature Range
Tstg
- 55 to + 150
1
H
igh Diode Semiconductor
Electrical Characteristics (T =25 unless otherwise noted)
℃
A
Parameter
Symbol
Max.
1.2
Unit
V
Forward Voltage
at IF = 100 mA
VF
IR
Reverse Current
at VR = 80 V
0.1
3
µA
pF
ns
Capacitance between Terminals
at VR = 0.5 V, f = 1 MHz
CT
trr
Reverse Recovery Time
4
at VR = 6 V, IF = 10 mA, RL = 100 Ω
2
H
igh Diode Semiconductor
Typical Characteristics
3
H
igh Diode Semiconductor
SOD323 Package Outline Dimensions
SOD323 Suggested Pad Layout
JSHD
JSHD
4
H
igh Diode Semiconductor
Reel Taping Specifications For Surface Mount Devices-SOD323
2.9
1.46
1.25
5
H
igh Diode Semiconductor
