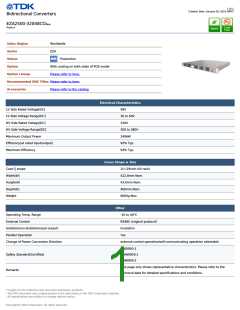

Creation Date : January 03, 2019 (GMT)
Bidirectional Converters
EZA2500-32048CONew
Product
Sales Region
Series
Worldwide
EZA
Status
Production
Option
With coating on both sides of PCB model
Please refer to here.
Option Lineup
Recommended EMC Filter Please refer to here.
Accessories
Please refer to the catalog
Electrical Characteristics
LV Side Rated Voltage[DC]
LV Side Voltage Range[DC]
HV Side Rated Voltage[DC]
HV Side Voltage Range[DC]
Maximum Output Power
48V
36 to 60V
320V
300 to 380V
2496W
Efficiency(at rated input/output)
Maximum Efficiency
92% Typ.
94% Typ.
Cases Shape & Size
Case’ shape
Width(W)
Height(H)
Depth(D)
Weight
1U (19inch full rack)
422.8mm Nom.
43.6mm Nom.
400mm Nom.
8000g Max.
Other
Operating Temp. Range
-10 to 40°C
RS485 (original protocol)
Insulation
External Control
Isolation/non-Isolation(input-output)
Parallel Operation
Yes
Change of Power Conversion Direction
external control operation/self-communicating operation selectable
UL60950-1
CSA60950-1
EN60950-1
Safety Standard(Certified)
Remarks
This page only shows representative characteristics. Please refer to the
technical data for detailed specifications and conditions.
! Images are for reference only and show exemplary products.
! This PDF document was created based on the data listed on the TDK Corporation website.
! All specifications are subject to change without notice.
