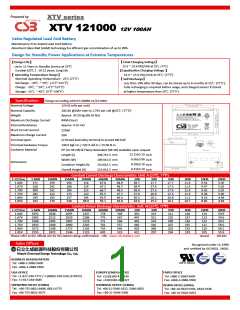

XTV series
XTV 121000 12V 100AH
Valve Regulated Lead Acid Battery
Maintenance-Free Sealed Lead Acid Battery.
Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%.
Design for Standby Power Applications at Extreme Temperatures
【Design Life】
【 Float Charging Voltage】
13.5 ~ 13.8 VDC/Unit at 25℃ (77℉)
【Equalization Charging Voltage 】
14.4 ~ 15.0 VDC/Unit at 25℃ (77℉)
【 Self Discharge】
Up to 12 Years in Standby Service at 25℃
Eurobat (20℃) : 10-12 years, Long Life
【 Operating Temperature Range】
Nominal Operating Temperature : 25℃(77℉)
Discharge : -20℃ ~ 50℃ (-4℉~122℉)
Charge: -20℃ ~ 50℃ (-4℉~122℉)
Storage: -15℃ ~ 40℃ (5℉~104℉)
Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉);
Fully recharging is required before usage, and charged sooner if stored
at higher temperature than 25℃ (77℉).
Design according with IEC 60896-21/22:2004
12V (6 cells per unit)
Specification
Nominal Voltage
Nominal Capacity
100 Ah @20hr-rate to 1.75V per cell @25℃ (77℉)
Weight
Approx. 30.20 Kg (66.56 lbs)
Maximum Discharge Current
Internal Resistance
Short Circuit Current
Maximum Charge Current
Terminal types
800A (5sec)
Approx. 4.10 mΩ
2258A
30A
I2 thread lead alloy terminal to accept M6 bolt
138.6 Kgf-cm / 120.3 Lbf-in / 13.58 N-m
PP (UL 94-HB) & Flame Retardant (94-V0) available upon request
Terminal hardware Torque
Container Material
12.15±0.10
6.65±0.08
8.29±0.10
8.41±0.10
Length (L)
308.7±2.5 mm
169.0±2.0 mm
210.6±2.5 mm
213.6±2.5 mm
inch
inch
inch
inch
Width (W)
Dimensions
Container Height (h)
Overall Height (H)
Constant Current Discharge Characteristics Unit: A (25℃, 77℉)
F.V/Time
1.60V
1.67V
1.70V
1.75V
1.80V
1.85V
5 MIN
371
328
309
282
243
191
10MIN
259
242
231
212
193
170
15MIN
194
30MIN
116
60MIN
67.8
67.2
66.7
65.5
63.0
59.1
90MIN
48.9
48.7
48.3
47.7
46.3
43.8
2HR
38.7
38.4
38.0
37.6
36.5
34.6
3HR
27.7
27.4
27.3
26.9
26.1
25.2
5HR
17.7
17.5
17.4
17.3
16.8
16.1
8HR
11.6
11.5
11.4
11.3
11.2
10.7
10HR
9.54
9.47
9.45
9.38
9.16
8.82
20HR
5.05
5.02
5.01
5.00
4.84
4.63
188
184
173
157
114
113
110
104
138
96.9
Constant Power Discharge Characteristics Unit: W (25℃, 77℉)
F.V/Time
1.60V
1.67V
1.70V
1.75V
1.80V
1.85V
5 MIN
3591
3382
3268
2932
2572
2255
10MIN
2638
2513
2445
2308
2149
1872
15MIN
2095
2029
1987
1880
1727
1546
30MIN
1307
1286
1274
1245
1192
1125
60MIN
778
90MIN
569
2HR
450
447
445
440
429
412
3HR
323
321
319
316
308
297
5HR
211
210
209
207
203
194
8HR
138
137
136
135
133
129
10HR
114
113
112
111
110
105
20HR
59.9
59.6
59.3
59.0
58.1
55.9
775
771
761
735
567
564
557
545
695
519
Please refer to the official site for the lastest rating confirmation. URL: www.csb-battery.com
Issued:
161101
