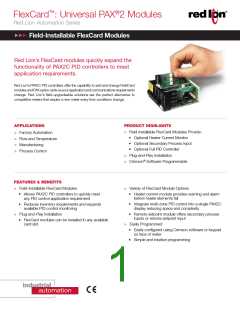

Field-Installable FlexCard Modules
POWER
INSTALLATION DIAGRAM
Power for the card is provided via PAX2C controller
Alignment
Slots
OUTPUT SPECIFICATIONS (APPLIES TO ALL MODULES)
Four Solid-State NFET Outputs
Type: Switched DC, N channel open drain MOSFET
Current Rating: 1 ADC max
VDS On: < 0.2 V @ 1A
VDS Max: 30 VDC
Offstate Leakage Current: 0.5 μA max
Main
Circuit
Board
FlexBus
Connectors
OUTPUT POWER SUPPLY
+Volt: 18 to 25 VDC @ 40 mA max
Standard Card
Connectors
CONNECTIONS
Rear Terminals: Fixed
Type: High compression cage-clamp terminal block
Wire Strip Length: 0.31” (8 mm)
Wire Gauge Capacity: 26 to 16 AWG (0.14 to 1.5 mm2)
Torque: 4.4-5.3 inch-lbs (0.5-0.6 N-m)
Top Terminals: Removable
Type: Spring - cage terminal block
Wire Strip Length: 0.27” (7.0 mm)
Wire Gauge Capacity: 24 to 16 AWG (0.2 to 1.5 mm2)
Slot #
1
2
3
Finger
Tab
Finger
Tab
CERTIFICATIONS AND COMPLIANCES
Complies with all certifications and compliances of the host
PAX2C controller
ORDERING GUIDE
PX2FCA00 PROCESS INPUT/PID CONTROLLER FLEXCARD:
SPECIFICATIONS
Input Ranges: 0 to 10 VDC, 0 to 20 mA DC
A/D Conversion: 16 bit, 6.8 samples/sec
Input Specifications:
PART NUMBER
DESCRIPTION
PX2FCA00
PX2FCA10
Process Input/PID Controller FlexCard
Heater Current Monitor FlexCard
Input Range
Accuracy @
0-50°C
Input Impedance Max Input Signal
10 V 20 mA
0.1% of span
538 KΩ 10 Ω 30 V 150 mA
PX2FCA10 HEATER CURRENT MONITOR FLEXCARD:
SPECIFICATIONS
A/D Conversion: 16 bit, 6.8 samples/sec
Input Specifications:
Type: Single phase, full wave monitoring of load currents
Input: 100 mA AC output from current transformer
Input Resistance: 5 Ω
Accuracy: 2.0% full scale, 5 to 100% of range
Frequency: 50 to 400 Hz
Overload: 200 mA (continuous)
Output on time delay for break alarm: 1 second)
