Applications

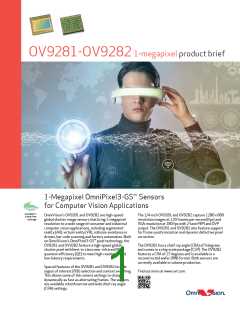

OV9281-OV9282
¬
Consumer HMD
¬
¬
Machine Vision
PCNB
¬
Drones
Ordering Information
¬
OV09281-H64A
(b&w, lead-free, 64-pin CSP)
¬
OV09282-GA4A
(b&w, lead-free, 200 µm backgrinding,
reconstructed wafer with good die)
Product Features
¬
3 µm x 3 µm pixel with
¬
¬
supports horizontal and vertical 2:1
and 4:1 monochrome subsampling
OmniPixel3-GS™ technology
¬
¬
automatic black level calibration (ABLC)
support for image sizes:
- 1280 x 800
programmable controls for:
- frame rate
- mirror and flip
- cropping and windowing
- 1280 x 720
Product Specifications
- 640 x 480
- 640 x 400
¬
active array size: 1296 x 816
¬
¬
¬
max S/N ratio: 38 dB
dynamic range: 68 dB
¬
embedded 256 bits of one-time
programmable (OTP) memory for
part identification
¬
power supply:
¬
¬
¬
¬
¬
support output formats: 8/10-bit RAW
fast mode switching
- core: 1.2V (nominal)
- analog: 2.8V (nominal)
- I/O: 1.8V (nominal)
maximum image transfer rate:
- 1280 x 800: 120 fps
¬
¬
¬
two on-chip phase lock loops (PLLs)
LED PWM
supports 2x2 monochrome binning
two-lane MIPI serial output interface
DVP parallel output interface
¬
¬
power requirements:
- active: 156 mW
¬
sensitivity:
13000 mV/µW.cm-2.sec) @ 850 nm
6500 mV/µW.cm-2.sec) @ 940 nm
- standby: 150 µA
built-in strobe control
- XSHUTDOWN: 150 µA
¬
¬
¬
scan mode: progressive
temperature range:
- operating: -30°C to +85°C junction
temperature
- stable image: 0°C to +50°C junction
temperature
minimum exposure time: 1 row period
maximum exposure time:
frame length - 12 row periods,
where frame length is set by
registers {0x380E, 0x380F}
¬
output interfaces:
2-lane MIPI serial output and
DVP parallel output
¬
¬
pixel size: 3 µm x 3 µm
-
¬
¬
¬
¬
output formats: 8/10-bit RAW
lens size: 1/4"
dark current: 80e /sec
@ 50°C junction temperature
¬
¬
image area: 3896 µm x 2453 µm
input clock frequency: 6 ~ 27 MHz
package dimensions:
- OV9281 CSP: 5237 µm x 4463 µm
- OV9282 RW: 5252 µm x 4478 µm
lens chief ray angle:
- OV9281: 9° linear
- OV9282: 26.78° non-linear
Functional Block Diagram
OV9281-OV9282
image sensor array
output
interface
column
sample/hold
MCP/N
MDP/N
array
10-bit
ADC
AMP
D[9:0]
VSYNC
HREF
PCLK
gain control
control register bank
SCCB slave interface
PLL
PLLs
timing generator
