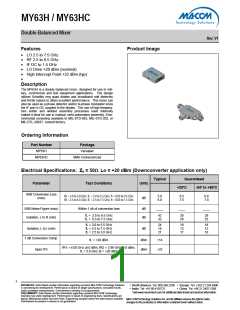

MY63H / MY63HC
Double-Balanced Mixer
Rev. V1
Features
Product Image
•
•
•
•
•
•
LO 2.5 to 7.5 GHz
RF 2.5 to 6.5 GHz
IF DC to 1.5 GHz
LO Drive +20 dBm (nominal)
High Intercept Point +22 dBm (typ)
Description
The MY63H is a double balanced mixer, designed for use in mili-
tary, commercial and test equipment applications. The design
utilizes Schottky ring quad diodes and broadband soft dielectric
and ferrite baluns to attain excellent performance. This mixer can
also be used as a phase detector and/or bi-phase modulator since
the IF port is DC coupled to the diodes. The use of high tempera-
ture solder and welded assembly processes used internally
makes it ideal for use in manual, semi-automated assembly. Envi-
ronmental screening available to MIL-STD-883, MIL-STD-202, or
MIL-DTL-28837, consult factory.
Ordering Information
Part Number
MY63H
Package
Versapac
MY63HC
SMA Connectorized
Electrical Specifications: Z0 = 50Ω Lo = +20 dBm (Downconverter application only)
Typical
Guaranteed
Parameter
Test Conditions
Units
+25ºC
-54º to +85ºC
SSB Conversion Loss
(max)
fR = 3.0 to 5.0 GHz, fL = 3.0 to 5.5 GHz, fI = 0.03 to 0.5 GHz
fR = 2.5 to 6.5 GHz, fL = 2.5 to 7.5 GHz, fI = 0.03 to 1.5 GHz
5.8
6.0
6.5
7.5
6.8
7.8
dB
SSB Noise Figure (max)
Isolation, L to R (min)
Within 1 db of conversion loss
dB
dB
____
____
____
fL = 2.5 to 6.5 GHz
fL = 6.5 to 7.5 GHz
42
32
30
26
29
25
fL = 3.0 to 5.5 GHz
fL = 5.5 to 7.5 GHz
fL = 2.5 to 3.0 GHz
24
18
21
19
13
17
18
12
16
Isolation, L to I (min)
dB
1 dB Conversion Comp.
fL = +20 dBm
dBm
dBm
+14
+22
fR1 = 4.00 GHz at 0 dBm, fR2 = 3.99 GHz at 0 dBm,
fL = 5.0 GHz at = +20 dBm
Input IP3
1
