WTB8-P2211V

型号：

WTB8-P2211V

品牌：

SICK[ SICK AG ]

页数：

7 页

PDF大小：

1031 K

下载PDF手册
WTB8-N2211V
W8 Inox

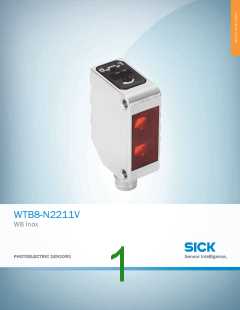

PHOTOELECTRIC SENSORS
WTB8-N2211V | W8 Inox
PHOTOELECTRIC SENSORS
Ordering information
A
B
C
D
E
F
Type
WTB8-N2211V
Part no.
6041455
Other models and accessories www.sick.com/W8_Inox
Illustration may differ
Detailed technical data
Features
Photoelectric proximity sensor, Background suppression
Sensor/ detection principle
Dimensions (W x H x D)
Housing design (light emission)
Sensing range max.
H
I
11 mm x 33.3 mm x 21 mm
Rectangular
5 mm ... 150 mm 1)
5 mm ... 100 mm 1)
Visible red light
Sensing range
J
Type of light
Light source
LED 2)
K
L
Ø 8 mm (100 mm)
650 nm
Light spot size (distance)
Wave length
Potentiometer, 4 turns
Adjustment
1)
Object with 90 % reflectance (referred to standard white, DIN 5033).
2)
Average service life: 100,000 h at T = +25 °C.
U
M
N
O
P
Q
R
S
T
Mechanics/electronics
10 V DC ... 30 V DC 1)
± 10 % 2)
Supply voltage
Ripple
≤ 30 mA 3)
NPN
Power consumption
Switching output
1)
Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
2)
May not exceed or fall below U tolerances.
v
3)
4)
5)
6)
Without load.
Signal transit time with resistive load.
With light/dark ratio 1:1.
A = V connections reverse-polarity protected.
S
7)
8)
9)
B = inputs and output reverse-polarity protected.
D = outputs overcurrent and short-circuit protected.
At an air humidity of 35 ... 95%.
2
PHOTOELECTRIC SENSORS | SICK
Online data sheet | 2017-12-07 19:30:42
Subject to change without notice
WTB8-N2211V | W8 Inox
PHOTOELECTRIC SENSORS
Light/dark switching
Selectable via light/dark selector
Approx. VS / < 1.8 V
100 mA
Switching mode
Switching mode selector
Signal voltage NPN HIGH/LOW
Output current Imax.
Response time
≤ 0.5 ms 4)
1,000 Hz 5)
Switching frequency
Connector M8, 4-pin
Connection type
Circuit protection
A 6)
B 7)
D 8)
III
Protection class
Weight
83.6 g
Stainless steel, Stainless steel V4A (1.4404, 316L)
IP69K
Housing material
Enclosure rating
Items supplied
Stainless steel mounting bracket (1.4301/304) BEF-W100-A
–30 °C ... +60 °C 9)
–40 °C ... +70 °C
FDA
Ambient operating temperature
Ambient storage temperature
UL File No.
1)
Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
2)
May not exceed or fall below U tolerances.
v
3)
4)
5)
6)
Without load.
Signal transit time with resistive load.
With light/dark ratio 1:1.
A = V connections reverse-polarity protected.
S
7)
8)
9)
B = inputs and output reverse-polarity protected.
D = outputs overcurrent and short-circuit protected.
At an air humidity of 35 ... 95%.
Classifications
27270904
27270904
27270904
27270904
27270904
27270904
27270904
27270904
EC002719
EC002719
39121528
ECl@ss 5.0
ECl@ss 5.1.4
ECl@ss 6.0
ECl@ss 6.2
ECl@ss 7.0
ECl@ss 8.0
ECl@ss 8.1
ECl@ss 9.0
ETIM 5.0
ETIM 6.0
UNSPSC 16.0901
2017-12-07 19:30:42 | Online data sheet
Subject to change without notice
PHOTOELECTRIC SENSORS | SICK
3
WTB8-N2211V | W8 Inox
PHOTOELECTRIC SENSORS
Adjustments possible
A
B
C
D
E
F
WTB8
8
6
5
9
⑤ Orange LED indicator : switching output active
⑥ LED indicator green: Stability indicator light up when the light received is < 0.9 or > 1.1 (based on switching threshold Q = 1)
⑧ Setting of the sensing range: potentiometer, 4 revolutions
⑨ Light/ dark rotary switch: L = light switching, D = dark switching
Connection diagram
Cd-066
1
2
3
4
BN
WH
BU
BK
H
I
+ (L+)
not connected
- (M)
Q
J
Characteristic curve
K
L
WTB8, 150 mm
% of sensing distance
7
WTB8 Inox short range
6
5
4
3
2
1
0
M
N
O
P
Q
R
S
T
6 %/90 %
1
18 %/90 %
2
90 %/90 %
3
mm
(inch)
20
(0.79)
40
(1.57)
60
(2.36)
80
(3.15)
100
(3.94)
120
(4.72)
Distance in mm (inch)
① Sensing range on black, 6% remission
② Sensing range on gray, 18 % remission
③ Sensing range on white, 90% remission
4
PHOTOELECTRIC SENSORS | SICK
Online data sheet | 2017-12-07 19:30:42
Subject to change without notice
WTB8-N2211V | W8 Inox
PHOTOELECTRIC SENSORS
Sensing range diagram
WTB8, 150 mm
5
5
5
20
20
20
100
100
100
1
2
3
150
0
40
(1.57)
80
(3.15)
120
(4.72)
160
(6.30)
Distance in mm (inch)
Sensing range max.
Sensing range
① Sensing range on black, 6% remission
② Sensing range on gray, 18 % remission
③ Sensing range on white, 90% remission
Dimensional drawing (Dimensions in mm (inch))
WTB8, 150 mm
21 (0.83)
12.9
(0.51)
11
(0.43)
3 (0.12)
7
7
1
2
3
4
9.6
(0.38)
① Standard direction
② Center of optical axis, receiver
③ Center of optical axis, sender
④ Connection
⑦ Threaded mounting hole M3, max. tightening torque of 1.8 Nm for M3 screw with washer, spring ring and mounting bracket ( 2 x 3.2 mm bore-
hole)
Recommended accessories
Other models and accessories www.sick.com/W8_Inox
Brief description
Type
Part no.
Universal bar clamp systems
Plate N08N for universal clamp bracket, Stainless steel 1.4571 (sheet), Stainless steel
1.4408 (clamp), Universal clamp (5322626), mounting hardware
BEF-KHS-N08N
2051616
2017-12-07 19:30:42 | Online data sheet
Subject to change without notice
PHOTOELECTRIC SENSORS | SICK
5
WTB8-N2211V | W8 Inox
PHOTOELECTRIC SENSORS
Brief description
Type
Part no.
A
B
C
D
E
F
Device protection (mechanical)
Safety bracket for floor mounting, Stainless steel 1.4571, mounting hardware included
BEF-SW-W4S
2051497
Mounting brackets and plates
Mounting bracket for wall mounting, stainless steel, mounting hardware included
BEF-W100-A
BEF-W100-B
5311520
5311521
Mounting bracket for floor mounting, steel, zinc coated, mounting hardware included
Plug connectors and cables
Head A: female connector, M8, 4-pin, straight
Head B: open cable ends
Cable: PP, unshielded, 2 m
This product is generally resistant to chemical cleaning agents (see ECOLAB) and other
chemical compounds such as H2O2 and CH2O2. Before permanent installation is car-
ried out, the material's resistance to the cleaning agent being used must be checked.
DOL-0804-G02MRN
DOL-0804-G05MRN
DOL-0804-W02MRN
DOL-0804-W05MRN
6058510
6058511
6058514
6058515
Head A: female connector, M8, 4-pin, straight
Head B: open cable ends
Cable: PP, unshielded, 5 m
This product is generally resistant to chemical cleaning agents (see ECOLAB) and other
chemical compounds such as H2O2 and CH2O2. Before permanent installation is car-
ried out, the material's resistance to the cleaning agent being used must be checked.
H
I
Head A: female connector, M8, 4-pin, angled
Head B: open cable ends
Cable: PP, unshielded, 2 m
This product is generally resistant to chemical cleaning agents (see ECOLAB) and other
chemical compounds such as H2O2 and CH2O2. Before permanent installation is car-
ried out, the material's resistance to the cleaning agent being used must be checked.
J
Head A: female connector, M8, 4-pin, angled
K
L
Head B: open cable ends
Cable: PP, unshielded, 5 m
This product is generally resistant to chemical cleaning agents (see ECOLAB) and other
chemical compounds such as H2O2 and CH2O2. Before permanent installation is car-
ried out, the material's resistance to the cleaning agent being used must be checked.
M
N
O
P
Q
R
S
T
6
PHOTOELECTRIC SENSORS | SICK
Online data sheet | 2017-12-07 19:30:42
Subject to change without notice
