JX3R470

型号:

JX3R470

品牌:

JUXING[ Guangdong Juxing Electronics Technology Co., Ltd. ]

页数:

3 页

PDF大小:

1608 K

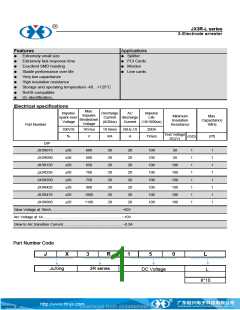

JX3R-L series
3-Electrode arrester
Features
Applications
Splitter
Extremely small size
Extremely fast response time
Eexcllent SMD handing
PCI Cards
Morden
Stable performance over life
Very low capacitance
Line cards
High insulation resistance
Storage and operating temperature -40…+125°C
RoHS-compatible
UL-identification,
Electrical specifications
Max.
Impulse
Breakdown
Voltage
Impulse
Discharge
Current
(8/20us)
AC
discharge
Current (10/1000us)
Impulse
Life
Minimum
Insulation
Resistance
Max.
Capacitance
1MHz
spark-over
Voltage
Part Number
100V/S
%
1KV/us
V
10 times
KA
50Hz,1S
A
200A
Test Voltage
Times
(GΩ)
(Pf)
DC(V)
DIP
JX3R075
JX3R090
±30
±30
±20
±20
±20
±20
±20
±20
600
600
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
100
100
100
100
100
100
100
100
50
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
50
JX
3R150
650
100
100
100
100
100
100
JX3R230
JX3R350
JX3R420
JX3R470
JX3R600
700
750
900
1000
1100
Glow Voltage at 10mA..................................................................... ~60V
Arc Voltage at 1A............................................................................. ~10V
Glow to Arc transition Current………...……………………………… ~0.3A
Part Number Code
J
X
3
R
1
5
0
L
JuXing
3R series
DC Voltage
L
8*10
http://www.trr-jx.com
version: 02
JX3R-L series
3-Electrode arrester
DC breakdown voltage
8/20us, Test wave
10/700us,Test Wave
T1=1.67T=10us±20%
T2=700us±20%
10/1000us,Test Wave
T1=1.67T=10us±20%
T2=1000us±20%
T1=1.25T=8us±20%
T2=20us±20%
Recommended wave slodering profile
http://www.trr-jx.com
version: 02
JX3R-L series
3-Electrode arrester
1) Sampling size in accordance to AQL(C=0)
2) DC spark-over voltage ±30% after load
3) Tests according to ITU-T Rec. K. 12 and IEC61643-1
Dimensions
Wire tin-plated
Dimension in mm
Cautions and warnings
Surge arresters must not be operated directly in power supply networks
Surge arresters may become hot in case of longer periods of current stress (danger of burning).
If the contacts of the surge arrester are defective, current stress can lead to the formation of
sparks and loud noises.
Surge arresters may be used only within their specified values. In case of overload, the head
contacts may fail or the component may be destroyed.
Damaged surge arresters must not be re-used.
http://www.trr-jx.com
version: 02
