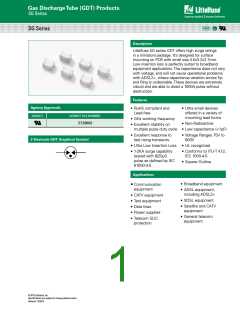

Gas DischargeTube (GDT) Products
SG Series
SG Series
Description
Littelfuse SG series GDT offers high surge ratings
in a miniature package. It’s designed for surface
mounting on PCB with small size 4.5x3.2x2.7mm.
Low insertion loss is perfectly suited to broadband
equipment applications. The capacitance does not vary
with voltage, and will not cause operational problems
with ADSL2+, where capacitance variation acrossTip
and Ring is undesirable. These devices are extremely
robust and are able to divert a 1000A pulse without
destruction.
Features
Agency Approvals
•ꢀRoHSꢀcompliantꢀandꢀ
Lead-free
•ꢀUltraꢀsmallꢀdevicesꢀ
offered in a variety of
mounting lead forms
AGENCY
AGENCY FILE NUMBER
•ꢀGHzꢀworkingꢀfrequencyꢀ
E128662
•ꢀNon-Radioactive
•ꢀExcellentꢀstabilityꢀonꢀ
multiple pulse duty cycle •ꢀLowꢀcapacitanceꢀ(<1pF)
•ꢀExcellentꢀresponseꢀtoꢀ
fast rising transients.
•ꢀVoltageꢀRangesꢀ75Vꢀtoꢀ
600V
2 Electrode GDT Graphical Symbol
•ꢀUltraꢀLowꢀInsertionꢀLoss •ꢀULꢀrecognizedꢀ
•ꢀ1-2KAꢀsurgeꢀcapabilityꢀ
tested with 8/20μS
pulseꢀasꢀdefinedꢀbyꢀIECꢀ
61000-4-5
•ꢀConformsꢀtoꢀITU-TꢀK12,ꢀ
IECꢀ1000-4-5
•ꢀSquareꢀOutline
Applications
•ꢀBroadbandꢀequipment
• Communication
equipment
•ꢀADSLꢀequipment,ꢀ
including ADSL2+
•ꢀCATVꢀequipment
•ꢀTestꢀequipment
•ꢀDataꢀlines
•ꢀXDSLꢀequipment
•ꢀSatelliteꢀandꢀCATVꢀ
equipment
•ꢀPowerꢀsupplies
•ꢀGeneralꢀtelecomꢀ
equipment
•ꢀTelecomꢀSLICꢀ
protection
© 2013 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/25/13
