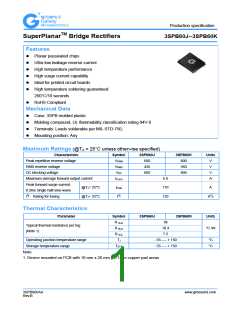

Production specification
SuperPlanarTM Bridge Rectifiers
3SPB60J--3SPB60K
Features
Planar passivated chips
Ultra low leakage reverse current
High temperature performance
High surge current capability
Ideal for printed circuit boards
High temperature soldering guaranteed:
260°C/10 seconds
RoHS Compliant
Mechanical Data
Case: 3SPB molded plastic
Molding compound, UL flammability classification rating 94V-0
Terminals: Leads solderable per MIL-STD-750,
Mounting position: Any
Maximum Ratings (@TA = 25°C unless otherwise specified)
Characteristic
Peak repetitive reverse voltage
RMS reverse voltage
Symbol
VRRM
VRMS
VDC
3SPB60J
3SPB60K
800
Units
600
V
V
V
A
420
560
DC blocking voltage
600
800
Maximum average forward output current
Peak forward surge current,
IF(AV)
6.0
170
120
@TJ= 25°C
IFSM
I2t
A
8.3ms single half-sine-wave
I2t Rating for fusing
@TJ= 25°C
A2s
Thermal Characteristics
Parameter
Symbol
R ΘJA
R ΘJC
R ΘJL
TJ
3SPB60J
3SPB60K
Units
38
10.4
7.5
Typical thermal resistance per leg
(Note 1)
°C /W
Operating junction temperature range
Storage temperature range
Note:
- 55 ---- + 150
- 55 ---- + 150
°C
°C
TSTG
1. Device mounted on PCB with 10 mm x 20 mm x 0.1mm copper pad areas
3SPB806AA
Rev.B
