1SS387FN2_R1_00001

型号:

1SS387FN2_R1_00001

品牌:

PANJIT[ PAN JIT INTERNATIONAL INC. ]

页数:

5 页

PDF大小:

166 K

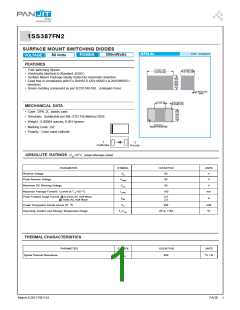

1SS387FN2
SURFACE MOUNT SWITCHING DIODES
Unitinch(mm)
DFN 2L
200mWatts
POWER
80 Volts
VOLTAGE
FEATURES
0.022(0.55)
0.017(0.45)
0.042(1.05)
0.037(0.95)
• Fast switching Speed.
• Electrically ldentical to Standerd JEDEC
• Surface Mount Package ldeally Suited for Automatic lnsertion.
• Lead free in compliance with EU RoHS2.0 (2011/65/EU & 2015/865/EU
directive)
• Green molding compound as per IEC61249 Std. . (Halogen Free)
0.002(0.05)
MAX.
0.014(0.36)
0.013(0.32)
0.008(0.22)
MECHANICAL DATA
• Case : DFN 2L plastic case.
Terminals : Solderable per MIL-STD-750,Method 2026
Weight : 0.00004 ounces, 0.0011grams
PIN NO.1
IDENTIFICATION
• Marking Code : BZ
• Polarity : Color band cathode
1
Cathode
2
Anode
ABSOLUTE RATINGS (T =25OC , unless otherwise noted)
A
PARAMETER
SYMBOL
VR
1SS387FN2
UNITS
Reverse Voltage
80
85
V
V
Peak Reverse Voltage
VRRM
Maximum DC Blocking Voltage
VDC
80
V
Maximum Average Forward Current at T A =25 O
C
I F(AV)
150
mA
Peak Forward Surge Current, @ 8.33ms AC Half Wave
@ 10ms AC Half Wave
2.5
2.3
IFSM
A
Power Dissipation Derate Above 25 OC
PD
300
mW
OC
Operating Junction and Storage Temperature Range
TJ,TSTG
-55 to +150
THERMALCHARACTERISTICS
PARAMETER
SYMBOL
RθJA
1SS387FN2
400
UNITS
OC / W
Typical Thermal Resistance
March 8,2017-REV.01
PAGE . 1
1SS387FN2
ELECTRICAL CHARACTERISTICS (T =25OC , unless otherwise noted)
A
PARAMETER
SYMBOL
VF
TEST CONDITIONS
MIN
-
TPY
MAX
UNITS
V
I
I
I
F
F
F
=1mA
=10mA
=100mA
0.62
0.75
0.98
0.715
0.855
1.2
Maximum Forward Voltage
V
V
R
=30V
=80V
0.1
0.5
Reverse Leakage Current
I
R
-
μA
R
Maximum Total Capacitance
CT
trr
V
R
=0V, f=1MHz
-
-
0.5
1.6
pF
ns
I
F=10mA,I R=1mA
Maximum Reverse Recovery Time
V
R=6V,R
L
=100Ω
1000
100
10
10
TJ
=125OC
25OC
100OC
1.0
0.1
TJ
=75OC
TJ
=50OC
TJ
=25OC
1
0.01
0.1
0.2
0.001
0.4
0.6
0.8
1.0
1.2
1.4
0
20
40
60
80
100
FORWARD VOLTAGE, VOLTS
REVERSE VOLTAGE, VOLTS
FIG. 1-TYPICAL FORWARD CHARACTERISTIC
FIG. 2-TYPICAL REVERSE CHARACTERISTICS
500
400
0.7
0.6
0.5
300
200
0.4
0.3
0.2
100
0.1
0
10
20
30
40
50
60
70
80
0
0
50
100
150
200
AMBIENT TEMPERATURE(OC)
REVERSE VOLTAGE, VOLTS
FIG. 3 TYPICAL JUNCTION CAPACITANCE
FIG. 4 POWER DERATING CURVE
March 8,2017-REV.01
PAGE . 2
1SS387FN2
MOUNTING PAD LAYOUT
Unitinch(mm)
DFN 2L
0.043
(1.10)
0.017
(0.42)
0.010
(0.26)
0.027
(0.68)
ORDER INFORMATION
• Packing information
T/R -8K per 7" plastic Reel
March 8,2017-REV.01
PAGE . 3
1SS387FN2
Part No_packing code_Version
1SS387FN2_R1_00001
For example :
RB500V-40_R2_00001
Serial number
Part No.
Version code means HF
Packing size code means 13"
Packing type means T/R
Packing Code XX
Version Code XXXXX
Packing type
1st Code
Packing size code
2nd Code HF or RoHS 1st Code 2nd~5th Code
Tape and Ammunition Box
(T/B)
A
R
B
T
S
L
F
N/A
7"
0
1
HF
0
1
serial number
serial number
Tape and Reel
(T/R)
RoHS
Bulk Packing
(B/P)
13"
2
Tube Packing
(T/P)
26mm
52mm
X
Y
U
D
Tape and Reel (Right Oriented)
(TRR)
Tape and Reel (Left Oriented)
(TRL)
PANASERT T/B CATHODE UP
(PBCU)
PANASERT T/B CATHODE DOWN
(PBCD)
FORMING
PAGE . 4
March 8,2017-REV.01
1SS387FN2
Disclaimer
Reproducing and modifying information of the document is prohibited without permission
from Panjit International Inc..
Panjit International Inc. reserves the rights to make changes of the content herein the
document anytime without notification. Please refer to our website for the latest
document.
Panjit International Inc. disclaims any and all liability arising out of the application or use of
any product including damages incidentally and consequentially occurred.
Panjit International Inc. does not assume any and all implied warranties, including warranties
of fitness for particular purpose, non-infringement and merchantability.
Applications shown on the herein document are examples of standard use and operation.
Customers are responsible in comprehending the suitable use in particular applications.
Panjit International Inc. makes no representation or warranty that such applications will be
suitable for the specified use without further testing or modification.
The products shown herein are not designed and authorized for equipments requiring high
level of reliability or relating to human life and for any applications concerning life-saving
or life-sustaining, such as medical instruments, transportation equipment, aerospace
machinery et cetera. Customers using or selling these products for use in such applications
do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages
resulting from such improper use or sale.
Since Panjit uses lot number as the tracking base, please provide the lot number for tracking
when complaining.
PAGE . 5
March 8,2017-REV.01
