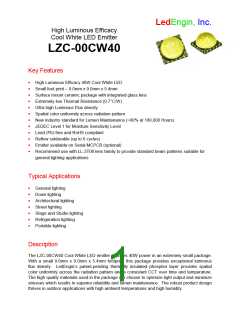

LedEngin, Inc.
High Luminous Efficacy
Cool White LED Emitter
LZC-00CW40
Key Features
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
High Luminous Efficacy 40W Cool White LED
Small foot print – 9.0mm x 9.0mm x 5.4mm
Surface mount ceramic package with integrated glass lens
Extremely low Thermal Resistance (0.7°C/W)
Ultra high Luminous Flux density
Spatial color uniformity across radiation pattern
New industry standard for Lumen Maintenance (>90% at 100,000 Hours)
JEDEC Level 1 for Moisture Sensitivity Level
Lead (Pb) free and RoHS compliant
Reflow solderable (up to 6 cycles)
Emitter available on Serial MCPCB (optional)
Recommend use with LL-3T08 lens family to provide standard beam patterns suitable for
general lighting applications
Typical Applications
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
General lighting
Down lighting
Architectural lighting
Street lighting
Stage and Studio lighting
Refrigeration lighting
Portable lighting
Description
The LZC-00CW40 Cool White LED emitter provides 40W power in an extremely small package.
With a small 9.0mm x 9.0mm x 5.4mm footprint, this package provides exceptional luminous
flux density. LedEngin’s patent-pending thermally insulated phosphor layer provides spatial
color uniformity across the radiation pattern and a consistent CCT over time and temperature.
The high quality materials used in the package are chosen to optimize light output and minimize
stresses which results in superior reliability and lumen maintenance. The robust product design
thrives in outdoor applications with high ambient temperatures and high humidity.
Table of Contents
Product Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Luminous Flux Binning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Forward Voltage Binning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Cool White Chromaticity Binning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
IPC/JEDEC Moisture Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Average Lumen Maintenance Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Typical Radiation Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Optical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Pin-Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Recommended Solder Pad Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Reflow Soldering Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Typical Relative Spectral Power Distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Typical Relative Light Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Typical Relative Light Output over Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Typical Forward Current Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Current Derating Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
MCPCB Option Configuration. . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Company Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2
LedEngin, Inc.
LZC-00CW40 (01/12/10)
Product Nomenclature
The LZ Series part number designation is defined as follows:
L Z A – B C D E F G - H J K L
Base Part Number
Where:
Bin Code
A – designates the number of LED die in the package (“C” for 40W)
B – designates the package level (“0” for Emitter; “7” for serial MCPCB)
C – designates the radiation pattern (“0” for Lambertian)
D and E – designate the color (“CW” for Cool White: 4750 K < CCT < 7200 K)
F and G – designate the Power (“40” for 40W typical rating)
H – designates the Luminous Flux bin (See Table 1)
J and K – designate the CCT bin groups (see Figure 1 and Table 3)
L – designates the VF bin (See Table 2)
Luminous Flux Bins
Table 1:
Minimum
Luminous Flux (ΦV)
@ IF = 700mA[1,2]
(lm)
Maximum
Luminous Flux (ΦV)
@ IF = 700mA[1,2]
(lm)
Typical
Luminous Flux (ΦV)
@ IF = 1000mA[2]
(lm)
Bin
Code
X
Y
Z
1,085
1,357
1,696
1,357
1,696
2,120
1,540
1,920
2,400
Notes for Table 1:
1. Luminous flux performance guaranteed within published operating conditions. LedEngin maintains a tolerance of
± 10% on flux measurements.
2. Luminous Flux typical value is for all 12 LED dice operating concurrently at rated current.
Forward Voltage Bins
Table 2:
Minimum
Forward Voltage (VF)
@ IF = 700mA[1,2]
(V)
Maximum
Forward Voltage (VF)
@ IF = 700mA[1,2]
(V)
Bin
Code
F
G
H
J
38.40
41.28
44.16
47.04
41.28
44.16
47.04
49.92
Notes for Table 2:
1. LedEngin maintains a tolerance of ± 0.48V for forward voltage measurements.
2. Forward Voltage is binned with 12 LED dice connected in series. The actual LED is configured with two strings of 6
dice in series.
3
LedEngin, Inc.
LZC-00CW40 (01/12/10)
Cool White Chromaticity Groups
0.43
0.41
0.39
0.37
0.35
0.33
0.31
0.29
0.27
4750 K
5300 K
6300 K
R2
7200 K
S2
R3
T2
S3
R4
T3
S4
T4
Planckian locus
0.29
0.31
0.33
x
0.35
0.37
Figure 1: Standard Chromaticity Groups plotted on excerpt from the CIE 1931 (2°) x-y Chromaticity Diagram.
Coordinates are listed below in Table 3.
Cool White Chromaticity Coordinates
Table 3:
Typical
CCT
(K)
Typical
CCT
(K)
Typical
CCT
(K)
Bin
Code
Bin
Code
Bin
Code
x
y
x
y
x
y
0.3205 0.3481
0.3196 0.3600
0.3008 0.3400
0.3028 0.3304
0.3376 0.3616
0.3382 0.3760
0.3196 0.3600
0.3207 0.3462
0.3551 0.3760
0.3570 0.3903
0.3382 0.3760
0.3376 0.3616
T2
T3
T4
6750
6750
6750
S2
S3
S4
5800
5800
5800
R2
R3
R4
5000
5000
5000
0.3221 0.3261
0.3205 0.3481
0.3028 0.3304
0.3068 0.3113
0.3366 0.3369
0.3376 0.3616
0.3207 0.3462
0.3222 0.3243
0.3515 0.3487
0.3551 0.3760
0.3376 0.3616
0.3366 0.3369
0.3230 0.3140
0.3221 0.3261
0.3068 0.3113
0.3089 0.3011
0.3361 0.3251
0.3366 0.3369
0.3222 0.3243
0.3230 0.3140
0.3498 0.3360
0.3515 0.3487
0.3366 0.3369
0.3361 0.3251
4
LedEngin, Inc.
LZC-00CW40 (01/12/10)
IPC/JEDEC Moisture Sensitivity Level
Table 4 - IPC/JEDEC J-STD-20.1 MSL Classification:
Soak Requirements
Floor Life
Conditions
Standard
Accelerated
Level
Time
Time (hrs)
Conditions
Time (hrs)
Conditions
≤ 30°C/
85% RH
168
+5/-0
85°C/
85% RH
1
unlimited
n/a
n/a
Notes for Table 4:
1. The standard soak time includes a default value of 24 hours for semiconductor manufacturer’s exposure time
(MET) between bake and bag and includes the maximum time allowed out of the bag at the distributor’s facility.
Average Lumen Maintenance Projections
Lumen maintenance generally describes the ability of a lamp to retain its output over time. The
useful lifetime for solid state lighting devices (Power LEDs) is also defined as Lumen
Maintenance, with the percentage of the original light output remaining at a defined time period.
Based on long-term WHTOL testing, LedEngin projects that the LZ Series will deliver, on
average, 90% Lumen Maintenance at 100,000 hours of operation at a forward current of
700 mA per die. This projection is based on constant current operation with junction
temperature maintained at or below 125°C.
Typical Radiation Pattern
Figure 2: Typical representative spatial radiation pattern.
5
LedEngin, Inc.
LZC-00CW40 (01/12/10)
Absolute Maximum Ratings
Table 5:
Parameter
Symbol
Value
Unit
DC Forward Current[1]
Peak Pulsed Forward Current[2]
Reverse Voltage
IF
1000
1500
See Note 3
-40 ~ +150
150
mA
mA
V
°C
°C
°C
IFP
VR
Tstg
TJ
Storage Temperature
Junction Temperature
Soldering Temperature[4]
Allowable Reflow Cycles
Tsol
260
6
> 8,000 V HBM
Class 3B JESD22-A114-D
ESD Sensitivity[5]
Notes for Table 5:
1. Maximum DC forward current (per die) is determined by the overall thermal resistance and ambient temperature.
Follow the curves in Figure 10 for current derating.
2: Pulse forward current conditions: Pulse Width ≤ 10msec and Duty cycle ≤ 10%.
3. LEDs are not designed to be reverse biased.
4. Solder conditions per JEDEC 020D. See Reflow Soldering Profile Figure 5.
5. LedEngin recommends taking reasonable precautions towards possible ESD damages and handling the LZ4-00CW40
in an electrostatic protected area (EPA). An EPA may be adequately protected by ESD controls as outlined in
ANSI/ESD S6.1.
Optical Characteristics @ TC = 25°C
Table 6:
Parameter
Symbol
Typical
Unit
Luminous Flux (@ IF = 700mA)[1]
Luminous Flux (@ IF = 1000mA)[1]
Luminous Efficacy (@ IF = 350mA)
Correlated Color Temperature
Chromaticity Coordinates
ΦV
ΦV
1900
2400
88
lm
lm
lm/W
K
CCT
x,y
Ra
5500
0.332, 0.342
75
Color Rendering Index (CRI)
Viewing Angle[2]
2Θ1/2
110
Degrees
Notes for Table 6:
1. Luminous flux typical value is for all 12 LED dice operating concurrently at rated current.
2. Viewing Angle is the off-axis angle from emitter centerline where the luminous intensity is ½ of the peak value.
Electrical Characteristics @ TC = 25°C
Table 7:
Parameter
Symbol
Typical
Unit
Forward Voltage (@ IF = 700mA)[1]
Forward Voltage (@ IF = 1000mA)[1]
VF
VF
42.0
43.8
V
V
Temperature Coefficient
of Forward Voltage[1]
∆VF/∆TJ
RΘJ-C
-33.6
0.7
mV/°C
°C/W
Thermal Resistance
(Junction to Case)
Notes for Table 7:
1. Forward Voltage is binned with 12 LED dice connected in series. The actual LED is configured with two strings of 6
dice in series.
6
LedEngin, Inc.
LZC-00CW40 (01/12/10)
Mechanical Dimensions (mm)
Pin Out
Pad Series Function
2
3
1
1
2
2
2
2
1
1
Cathode
Cathode
Cathode
Cathode
Anode
5
6
14
15
17
18
Anode
Anode
Anode
17
2
3
18
14
5
6
15
Figure 3: Package outline drawing.
Notes for Figure 3:
1. Unless otherwise noted, the tolerance = ± 0.20 mm.
Recommended Solder Pad Layout (mm)
Figure 4: Recommended solder mask opening (hatched area) for anode, cathode, and thermal pad.
Note for Figure 4:
1. Unless otherwise noted, the tolerance = ± 0.20 mm.
7
LedEngin, Inc.
LZC-00CW40 (01/12/10)
Reflow Soldering Profile
Figure 5: Reflow soldering profile for lead free soldering.
Typical Relative Spectral Power Distribution
1
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
350
400
450
500
550
600
650
700
750
800
Wavelength (nm)
Figure 6: Typical relative spectral power vs. wavelength @ TC = 25°C.
8
LedEngin, Inc.
LZC-00CW40 (01/12/10)
Typical Relative Light Output
140
120
100
80
60
40
20
0
0
200
400
600
800
1000
IF - Forward Current (mA)
Figure 7: Typical relative light output vs. forward current @ TC = 25°C.
Notes for Figure 7:
1.
Luminous Flux typical value is for all 12 LED dice operating concurrently at rated current.
Typical Relative Light Output over Temperature
120
110
100
90
80
70
60
0
20
40
60
80
100
Case Temperature (°C)
Figure 8: Typical relative light output vs. case temperature.
Notes for Figure 8:
1.
Luminous Flux typical value is for all 12 LED dice operating concurrently at rated current.
9
LedEngin, Inc.
LZC-00CW40 (01/12/10)
Typical Forward Current Characteristics
1200
1000
800
600
400
200
0
36
37
38
39
40
41
42
43
44
45
VF - Forward Voltage (V)
Figure 9: Typical forward current vs. forward voltage @ TC = at 25°C.
Note for Figure 9:
1. Forward Voltage assumes 12 LED dice connected in series. The actual LED is configured with two strings of 6 dice in
series.
Current Derating
1200
1000
800
700
(Rated)
600
400
RΘJ-A = 2.0°C/W
200
0
RΘJ-A = 3.0°C/W
RΘJ-A = 4.0°C/W
0
25
50
75
100
125
150
Maximum Ambient Temperature (°C)
Figure 10: Maximum forward current vs. ambient temperature based on TJ(MAX) = 150°C.
Notes for Figure 10:
1. Maximum current assumes that all LED dice are operating concurrently at the same current.
2. RΘJ-C [Junction to Case Thermal Resistance] for the LZC-00CW40 is typically 0.7°C/W.
3. RΘJ-A [Junction to Ambient Thermal Resistance] = RΘJ-C + RΘC-A [Case to Ambient Thermal Resistance].
10
LedEngin, Inc.
LZC-00CW40 (01/12/10)
MCPCB Option – Serial configuration
LZC-70xW40
ƒ
ƒ
ƒ
Typical Thermal Resistance for MCPCB adds only 0.8°C/W
Serial configuration allows for easy driver control
MCPCB contains Zener Diodes for enhanced ESD protection
The LZC-70xx40 Serial MCPCB option provides a convenient method to mount LedEngin’s
single color 40W emitters. The six recessed features allow the use of M3 or #4 screws to attach
the MCPCB to a heat sink. The MCPCB also contains Zener diodes for enhanced ESD
protection.
RΘJ-B Lookup Table
Table 8:
Typical Emitter
Typical MCPCB
Typical Emitter + MCPCB
Product
+
=
[1]
RΘJ-C
RΘC-B
RΘJ-B
40W
0.7°C/W
+
0.8°C/W
=
1.5°C/W
Serial MCPCB Mechanical Dimensions (mm)
Pin Out
Pad
Function
Cathodes
Anodes
-
+
+
‐
Figure 11: Standard MCPCB outline dimensions (mm).
Note for Figure 1:
1. Unless otherwise noted, the tolerance = ± 0.20 mm.
2. Slots in MCPCB are for M3 or #4 mounting screws.
3. LedEngin recommends using plastic washers to electrically insulate screws from solder pads and electrical traces.
4. LedEngin recommends using thermally conductive tape or adhesives when attaching MCPCB to a heat sink.
11
LedEngin, Inc.
LZC-00CW40 (01/12/10)
Company Information
LedEngin, Inc. is a Silicon Valley based solid-state lighting company specializing in the
development and manufacturing of unprecedented high-power LED emitters, modules and
replacement lamps. LedEngin’s packaging technologies lead the industry with products that
feature lowest thermal resistance, highest flux density and consummate reliability, enabling
compact and efficient solid state lighting solutions.
LedEngin’s LED emitters range from 3W to 40W with ultra-compact footprints and are available
in single color products including Cool White, Neutral White, Warm White, Red, Green, Blue,
Amber, Deep Red, Far Red, Dental Blue and UV as well as multi-color products with RGB,
RGBA and RGBW options. LedEngin’s brightest White LEDs are capable of emitting 2,000
lumens.
LedEngin’s robust emitters are at the core of its unique line of modules and replacement lamps
producing unmatched beam quality resulting in true Lux on Target™ for a wide variety of spot
and narrow flood directional lighting applications.
LedEngin is committed to providing products that conserve natural resources and reduce
greenhouse emissions.
LedEngin reserves the right to make changes to improve performance without notice.
Please contact Sales@ledengin.com or (408) 492-0620 for more information.
12
LedEngin, Inc.
LZC-00CW40 (01/12/10)
厂商 型号 描述 页数 下载

ETC

 		LZC-00CW00 [ High Luminous Efficacy Cool White LED Emitter ] 12 页

ETC

 		LZC-00CW0R-0000 [ LED COOL WHITE 4750K-7040K 24SMD ] 19 页

ETC

 		LZC-00CW0R-0055 [ LED COOL WHITE 5500K 70CRI 24SMD ] 19 页

ETC

 		LZC-00CW0R-0056 [ LED COOL WHITE 5600K 70CRI 24SMD ] 19 页

ETC

 		LZC-00CW0R-0065 [ LED COOL WHITE 6500K 70CRI 24SMD ] 19 页

ETC

 		LZC-00CW0R-C000 [ LED COOL WHITE 4750K-7040K 24SMD ] 19 页

ETC

 		LZC-00CW0R-C055 [ LED COOL WHITE 5500K 70CRI 24SMD ] 19 页

ETC

 		LZC-00CW0R-C056 [ LED COOL WHITE 5600K 70CRI 24SMD ] 19 页

ETC

 		LZC-00CW0R-C065 [ LED COOL WHITE 6500K 70CRI 24SMD ] 19 页

ETC

 		LZC-00GW00-0027 [ LED WARM WHITE 2700K 98CRI 24SMD ] 19 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.275059s
