5UFL09

型号:

5UFL09

品牌:

LUMBERG[ LUMBERG ]

页数:

3 页

PDF大小:

477 K

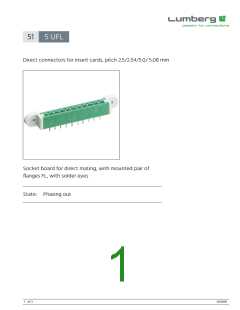

51 5 UFL
Direct connectors for insert cards, pitch 2.5/2.54/5.0/ 5.08 mm
Socket board for direct mating, with mounted pair of
flanges FL, with solder eyes
State: Phasing out
1
of 3
01/2018
51 5 UFL
Environmental conditions
Temperature range
-25 °C/+100 °C
Materials
Insulating body
Contact spring
Flange
PPO
CuSn, pre-nickel and tin-plated
PC
Mechanical data
Mating with
Leiterplatte 1,5 ± 0,14 mm
Electrical data (at Tamb 20 °C)
Contact resistance
Rated current
≤ 3 mΩ
5 A
Rated voltage
Rated impulse voltage
250 V AC
≥ 3,0 kV
Associated products
Accessories
SP 1
2 of 3
01/2018
51 5 UFL
Designation
5 UFL 03
5 UFL 04
5 UFL 05
5 UFL 06
5 UFL 07
5 UFL 08
5 UFL 09
5 UFL 10
5 UFL 11
Pole Number
PU (Pieces)
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
MDQ (Pieces)
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
3
4
5
6
7
8
9
10
11
5 UFL 12
5 UFL 13
5 UFL 14
5 UFL 15
5 UFL 16
5 UFL 17
5 UFL 18
5 UFL 19
5 UFL 20
5 UFL 21
5 UFL 22
5 UFL 23
5 UFL 24
5 UFL 25
5 UFL 26
5 UFL 27
5 UFL 28
5 UFL 29
5 UFL 30
5 UFL 31
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Packaging:
in bulk, in a cardboard box
3 of 3
01/2018
