MZT8-2V6PSAKU0

型号：

MZT8-2V6PSAKU0

品牌：

SICK[ SICK AG ]

页数：

6 页

PDF大小：

1353 K

下载PDF手册

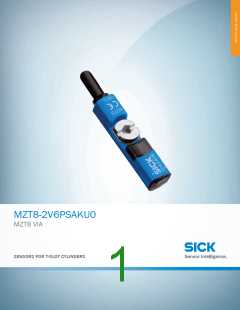

MZT8-2V6PSAKU0
MZT8 VIA
SENSORS FOR T-SLOT CYLINDERS
MZT8-2V6PSAKU0 | MZT8 VIA
SENSORS FOR T-SLOT CYLINDERS
Ordering information
A
B
C
D
E
F
Type
MZT8-2V6PSAKU0
Part no.
1073265
Other models and accessories www.sick.com/MZT8_VIA
Detailed technical data
Features
T-slot
Cylinder type
H
I
Profile cylinder
Tie rod cylinder
Round body cylinder
Dovetail groove cylinder
SMC rail CDQ2
Cylinder types with adapter
SMC rail ECDQ2
24 mm
PNP
Housing length
Output type
J
1,000 Hz
NO
Switching frequency
Output function
Electrical wiring
Enclosure rating
K
L
DC 3-wire
IP68 1)
IP69K 2)
Visual installation aid/LED indicator (yellow)
Power LED (green)
Special features
M
N
O
P
Q
R
S
T
1)
According to EN 60529 (IP 67 / IP 68).
2)
According to DIN 40050 (IP 69K).
Mechanics/electronics
10 V DC ... 30 V DC
Supply voltage
≤ 10 mA 1)
≤ 2.2 V
Power consumption
Voltage drop
≤ 200 mA
Continuous current Ia
Protection class
III
2.6 mT
3 mm
Response sensitivity, typ.
Overrun distance, typ.
1)
Without load.
2)
Ub and Ta constant.
2
MAGNETIC CYLINDER SENSORS | SICK
Online data sheet | 2017-05-04 16:20:10
Subject to change without notice
MZT8-2V6PSAKU0 | MZT8 VIA
SENSORS FOR T-SLOT CYLINDERS
≤ 0.5 mT
Hysteresis, typ.
Reproducibility
≤ 0.1 mT 2)
✔
Reverse polarity protection
Short-circuit protection
Power-up pulse protection
Ambient operating temperature
Shock and vibration resistance
EMC
✔
✔
–30 °C ... +80 °C
30 g, 11 ms / 10 ... 55 Hz, 1 mm
According to EN 60947-5-2
Plastic, PA12
Housing material
Cable, 3-wire, 2 m
PUR
Connection type
Cable material
0.14 mm²
Conductor cross-section
UL File No.
NRKH.E181493
1)
Without load.
2)
Ub and Ta constant.
Classifications
27270104
27270104
27270104
27270104
27270104
27270104
27270104
27270104
EC002544
EC002544
39122230
ECl@ss 5.0
ECl@ss 5.1.4
ECl@ss 6.0
ECl@ss 6.2
ECl@ss 7.0
ECl@ss 8.0
ECl@ss 8.1
ECl@ss 9.0
ETIM 5.0
ETIM 6.0
UNSPSC 16.0901
Connection diagram
Cd-001
brn
+ (L+)
blk
NO
blu
- (M)
2017-05-04 16:20:10 | Online data sheet
Subject to change without notice
MAGNETIC CYLINDER SENSORS | SICK
3
MZT8-2V6PSAKU0 | MZT8 VIA
SENSORS FOR T-SLOT CYLINDERS
Dimensional drawing (Dimensions in mm (inch))
Cable
A
B
C
D
E
F
5
2
1
2
3
4
5
(1.97)
24
(9.45)
① Connection
② Fixing screw
③ Visual installation aid/LED indicator (yellow)
④ Power LED (green)
⑤ Position sensor element; Overrun distance short: 2 mm
Recommended accessories
Other models and accessories www.sick.com/MZT8_VIA
H
I
Brief description
Type
Part no.
Brackets for cylinder sensors
Mounting bracket for cylinder with dovetail slot, Aluminum, without mounting hardware
BEF-KHZ-ST1
2022703
J
Mounting bracket for integrated profile cylinder/tie-rod cylinder, Zinc diecast, mounting
hardware included
BEF-KHZ-PT1
2022702
K
L
1 piece, Mounting bracket on round body cylinder with piston diameter of 12 mm, ambi-
ent temperature min 0 °C max 50 °C, Plastic, Aluminum
BEF-KHZ-RT-12
BEF-KHZ-RT-16
BEF-KHZ-RT-20
BEF-KHZ-RT-25
BEF-KHZ-RT-32
BEF-KHZ-RT-40
BEF-KHZ-RT-50
BEF-KHZ-RT-63
BEF-KHZ-RT1-130
BEF-KHZ-RT1-25
2077681
2077680
2077679
2077678
2077677
2077676
2077675
2077674
2077684
2077682
1 piece, Mounting bracket on round body cylinder with piston diameter of 16 mm, ambi-
ent temperature min 0 °C max 50 °C, Plastic, Aluminum
1 piece, Mounting bracket on round body cylinder with piston diameter of 20 mm, ambi-
ent temperature min 0 °C max 50 °C, Plastic, Aluminum
M
N
O
P
Q
R
S
T
1 piece, Mounting bracket on round body cylinder with piston diameter of 25 mm, ambi-
ent temperature min 0 °C max 50 °C, Plastic, Aluminum
1 piece, Mounting bracket on round body cylinder with piston diameter of 32 mm, ambi-
ent temperature min 0 °C max 50 °C, Plastic, Aluminum
1 piece, Mounting bracket on round body cylinder with piston diameter of 40 mm, ambi-
ent temperature min 0 °C max 50 °C, Plastic, Aluminum
1 piece, Mounting bracket on round body cylinder with piston diameter of 50 mm, ambi-
ent temperature min 0 °C max 50 °C, Plastic, Aluminum
1 piece, Mounting bracket on round body cylinder with piston diameter of 63 mm, ambi-
ent temperature min 0 °C max 50 °C, Plastic, Aluminum
1 piece, Mounting bracket on round body cylinder with piston diameter of 8 mm ...
130 mm, ambient temperature min –30 °C max 80 °C, Stainless steel, Zinc cast
1 piece, Mounting bracket on round body cylinder with piston diameter of 8 mm ...
25 mm, ambient temperature min –30 °C max 80 °C, Stainless steel, Zinc cast
4
MAGNETIC CYLINDER SENSORS | SICK
Online data sheet | 2017-05-04 16:20:10
Subject to change without notice
MZT8-2V6PSAKU0 | MZT8 VIA
SENSORS FOR T-SLOT CYLINDERS
Brief description
Type
Part no.
1 piece, Mounting bracket on round body cylinder with piston diameter of 8 mm ...
63 mm, ambient temperature min –30 °C max 80 °C, Stainless steel, Zinc cast
BEF-KHZ-RT1-63
2077683
Mounting bracket for mounting on SMC rails CDQ2 (T-slot), Aluminum, without mounting
hardware
BEF-KHZ-TT2
BEF-KHZ-TT1
2046440
2046439
Mounting bracket for mounting on SMC rails ECDQ2 (T-slot), Aluminum, without mount-
ing hardware
Device protection (mechanical)
Protective adapter, die-cast zinc, mounting hardware included
BEF-SG-MRZT
2077201
2017-05-04 16:20:10 | Online data sheet
Subject to change without notice
MAGNETIC CYLINDER SENSORS | SICK
5
