JWT75-522-RB

型号:

JWT75-522-RB

品牌:

TDK[ TDK ELECTRONICS ]

页数:

2 页

PDF大小:

206 K

1 of 1

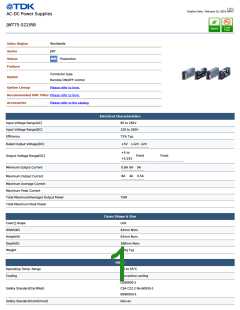

Creation Date : February 15, 2019 (GMT)
AC-DC Power Supplies
JWT75-522/RB
Sales Region
Series
Worldwide
JWT
Status
Production
Feature
Connector type
Option
Remote ON/OFF control
Option Lineup
Please refer to here.
Recommended EMC Filter Please refer to here.
Accessories
Please refer to the catalog
Electrical Characteristics
85 to 265V
Input Voltage Range[AC]
Input Voltage Range[DC]
Efficiency
120 to 330V
72% Typ.
+5V +12V -12V
Rated Output Voltage[DC]
Output Voltage Range[DC]
+5 to
Fixed
Fixed
+5.25V
0.8A 0A 0A
Minimum Output Current
Maximum Output Current
8A 4A 0.5A
Maximum Average Current
Maximum Peak Current
Total Maximum(Average) Output Power
Total Maximum Peak Power
75W
Cases Shape & Size
Unit
Case’ shape
Width(W)
Height(H)
Depth(D)
Weight
42mm Nom.
92mm Nom.
188mm Nom.
600g Typ.
Other
Operating Temp. Range
Cooling
-10 to 65°C
Convection cooling
UL60950-1
Safety Standard(Certified)
Safety Standard(Conformed)
CSA C22.2 No.60950-1
EN60950-1
Den-an
This page only shows representative characteristics. Please refer to the
technical data for detailed specifications and conditions.
Remarks
! Images are for reference only and show exemplary products.
! This PDF document was created based on the data listed on the TDK Corporation website.
! All specifications are subject to change without notice.
Copyright(c) TDK Corporation. All rights reserved.
