1SS355_R2_00001

型号:

1SS355_R2_00001

品牌:

PANJIT[ PAN JIT INTERNATIONAL INC. ]

页数:

5 页

PDF大小:

186 K

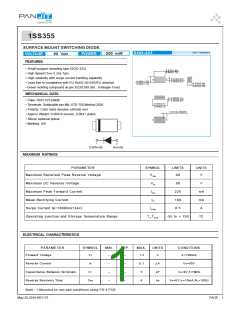

1SS355
SURFACE MOUNT SWITCHING DIODE
200 mW
POWER
90 Volt
VOLTAGE
FEATURES
• Small surgace mounting type (SOD-323)
• High Speed (TRR=1.2ns Typ)
0.078(1.95)
0.068(1.75)
• High reliability with surge current handing capability
0.014(0.35)
0.009(0.25)
0.054(1.35)
0.045(1.15)
• Lead free in compliance with EU RoHS 2011/65/EU directive
• Green molding compound as per IEC61249 Std. . (Halogen Free)
0.036(0.90)
0.027(0.70)
MECHANICAL DATA
0.006(0.15)
0.002(0.05)
• Case: SOD-323 plastic
0.107(2.7)
0.090(2.3)
Terminals: Solderable per MIL-STD-750,Method 2026
• Polarity: Color band denotes cathode end
• Approx Weight: 0.00014 ounces, 0.0041 grams
• Silicon epitaxial planar
0.012(0.30)MIN.
• Marking: 355
1
2
Cathode
Anode
MAXIMUM RATINGS
PARAMETER
SYMBOL
LIMITS
90
UNITS
V
Maximum Recurrent Peak Reverse Voltage
Maximum DC Reverse Voltage
Maximum Peak Forward Current
Mean Rectifying Current
VRM
VR
80
225
V
mA
mA
A
IFM
IO
100
Surge Current tp=1000ms(1sec)
IFSM
TJ,TSTG
0.5
Operating Junction and Storage Temperature Range
-55 to + 150
OC
ELECTRICAL CHARACTERISTICS
PARAMETER
SYMBOL
MIN.
--
TYP.
--
MAX.
1.2
UNITS
CONDITONS
Forward Voltage
V
F
V
IF=100mA
Reverse Current
I
R
--
--
--
--
--
--
0.1
3
μA
pF
ns
VR=80V
Capacitance Between Terminals
Reverse Recovery Time
C
T
V
R
=0V,f=1MH
Z
T
RR
4
V
R
=6V,I
F
=10mA,R
L
=100Ω
Note : 1.Mounted on min pad conditions using FR-4 PCB
May 25,2016-REV.07
PAGE . 1
1SS355
300
10
TJ
=125OC
1.0
0.1
200
TJ
=75OC
100
0.01
TJ
=25OC
0
50
100
150
200
0.001
AMBIENT TEMPERATURE(OC)
0
20
40
60
80
100
REVERSE VOLTAGE, Volts
FIG. 2-TYPICAL REVERSE CHARACTERISTICS
FIG. 1 POWER DERATING CURVE
100
10
1
100
10
1
IFSM
TJ = 150°C
t
TJ = 25°C
TJ = 75°C
0.1
0.1
0.1
1
10
100
1000
0
0.2
0.4
0.6
0.8
1
Pulse width, ms
Forward Voltage, VF, Volts
FIG.4-SURGE CURRENT
FIG. 3 TYPICAL FORWARD CHARACTERISTIC
PAGE . 2
May 25,2016­REV.07
1SS355
MOUNTING PAD LAYOUT
ORDER INFORMATION
• Packing information
T/R - 12K per 13" plastic Reel
T/R - 5K per 7" plastic Reel
May 25,2016-REV.07
PAGE . 3
1SS355
Part No_packing code_Version
1SS355_R1_00001
1SS355_R2_00001
For example :
RB500V-40_R2_00001
Serial number
Part No.
Version code means HF
Packing size code means 13"
Packing type means T/R
Packing Code XX
Version Code XXXXX
Packing type
1st Code
Packing size code
2nd Code HF or RoHS 1st Code 2nd~5th Code
Tape and Ammunition Box
(T/B)
A
R
B
T
S
L
F
N/A
7"
0
1
HF
0
1
serial number
serial number
Tape and Reel
(T/R)
RoHS
Bulk Packing
(B/P)
13"
2
Tube Packing
(T/P)
26mm
52mm
X
Y
U
D
Tape and Reel (Right Oriented)
(TRR)
Tape and Reel (Left Oriented)
(TRL)
PANASERT T/B CATHODE UP
(PBCU)
PANASERT T/B CATHODE DOWN
(PBCD)
FORMING
May 25,2016­REV.07
PAGE . 4
1SS355
Disclaimer
Reproducing and modifying information of the document is prohibited without permission
from Panjit International Inc..
Panjit International Inc. reserves the rights to make changes of the content herein the
document anytime without notification. Please refer to our website for the latest
document.
Panjit International Inc. disclaims any and all liability arising out of the application or use of
any product including damages incidentally and consequentially occurred.
Panjit International Inc. does not assume any and all implied warranties, including warranties
of fitness for particular purpose, non-infringement and merchantability.
Applications shown on the herein document are examples of standard use and operation.
Customers are responsible in comprehending the suitable use in particular applications.
Panjit International Inc. makes no representation or warranty that such applications will be
suitable for the specified use without further testing or modification.
The products shown herein are not designed and authorized for equipments requiring high
level of reliability or relating to human life and for any applications concerning life-saving
or life-sustaining, such as medical instruments, transportation equipment, aerospace
machinery et cetera. Customers using or selling these products for use in such applications
do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages
resulting from such improper use or sale.
Since Panjit uses lot number as the tracking base, please provide the lot number for tracking
when complaining.
May 25,2016­REV.07
PAGE . 5
