8N3PG10MBKI-161

型号：

8N3PG10MBKI-161

品牌：

IDT[ INTEGRATED DEVICE TECHNOLOGY ]

页数：

23 页

PDF大小：

435 K

下载PDF手册

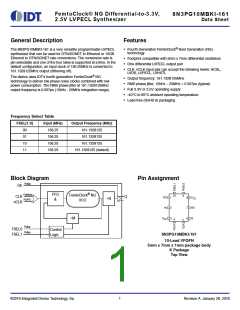

FemtoClock® NG Differential-to-3.3V,
2.5V LVPECL Synthesizer
8N3PG10MBKI-161
Data Sheet
General Description
Features
The 8N3PG10MBKI-161 is a very versatile programmable LVPECL
synthesizer that can be used for OTN/SONET to Ethernet or 10GB
Ethernet to OTN/SONET rate conversions. The conversion rate is
pin-selectable and one of the four rates is supported at a time. In the
default configuration, an input clock of 156.25MHz is converted to
161.1328125MHz output (dithering off).
• Fourth Generation FemtoClock® Next Generation (NG)
technology
• Footprint compatible with 5mm x 7mm differential oscillators
• One differential LVPECL output pair
• CLK, nCLK input pair can accept the following levels: HCSL,
LVDS, LVPECL, LVHSTL
The device uses IDT’s fourth generation FemtoClock® NG
technology to deliver low phase noise clocks combined with low
power consumption. The RMS phase jitter at 161.1328125MHz
output frequency is 0.567ps (12kHz - 20MHz integration range).
• Output frequency: 161.1328125MHz
• RMS phase jitter, 12kHz – 20MHz = 0.567ps (typical)
• Full 3.3V or 2.5V operating supply
• -40°C to 85°C ambient operating temperature
• Lead-free (RoHS 6) packaging
Frequency Select Table
FSEL[1:0]
Input (MHz)
156.25
Output Frequency (MHz)
161.1328125
00
01
10
11
156.25
161.1328125
156.25
161.1328125
156.25
161.1328125 (default)
Block Diagram
Pullup
Pin Assignment
OE
FemtoClock® NG
Pulldown
CLK
nCLK
PFD
&
Q
OE
nc
V
CC
÷N
PU/PD
VCO
nQ
Q
V
÷M
EE
Pullup
FSEL0
FSEL1
Control
Logic
Pullup
8N3PG10MBKI-161
10-Lead VFQFN
5mm x 7mm x 1mm package body
K Package
Top View
©2016 Integrated Device Technology, Inc
1
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
Pin Descriptions and Characteristics
Table 1. Pin Descriptions
Number
Name
Type
Description
Output enable. External pullup required for normal operation.
LVCMOS/LVTTL interface levels.
1
OE
Pullup
2
3
Reserved
VEE
Reserve
Power
Reserved pin.
Negative supply pin.
Pullup/
Pulldown
4
nCLK
Input
Inverting differential clock input. VCC/2 default when left floating
5
6, 7
8
CLK
Q, nQ
VCC
Input
Output
Power
Pulldown
Non-inverting differential clock input.
Differential output pair. LVPECL interface levels.
Power supply pin.
Feedback control input. Sets the output divider value to one of four values.
LVCMOS/LVTTL interface levels. See Frequency Select Table on page 1.
9
FSEL0
FSEL1
Input
Input
Pullup
Pullup
Feedback control input. Sets the output divider value to one of four values.
LVCMOS/LVTTL interface levels. See Frequency Select Table on page 1.
10
NOTE: Pullup and Pulldown refer to internal input resistors. See Table 2, Pin Characteristics, for typical values.
Table 2. Pin Characteristics
Symbol
CIN
Parameter
Test Conditions
Minimum
Typical
3.5
Maximum
Units
pF
Input Capacitance
Input Pullup Resistor
Input Pulldown Resistor
RPULLUP
RPULLDOWN
51
k
51
k
Function Table
Table 3. P, M, N Divider Function Table
Input Frequency
(MHz)
Output Frequency
(MHz)
FSEL[1:0]
0 0
P
M
÷28.87500
N
÷2
÷2
÷2
÷2
÷14
÷14
÷14
÷14
156.25
156.25
156.25
156.25
161.1328125
161.1328125
161.1328125
161.1328125
0 1
÷28.87500
÷28.87500
÷28.87500
1 0
1 1 (default)
©2016 Integrated Device Technology, Inc
2
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
Absolute Maximum Ratings
NOTE: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress
specifications only. Functional operation of product at these conditions or any conditions beyond those listed in the DC Characteristics or AC
Characteristics is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
Item
Rating
Supply Voltage, VCC
Inputs, VI
3.63V
-0.5V to VCC + 0.5V
Outputs, IO
Continuous Current
Surge Current
50mA
100mA
Package Thermal Impedance, JA
39.2C/W (0 mps)
-65C to 150C
Storage Temperature, TSTG
DC Electrical Characteristics
Table 4A. Power Supply DC Characteristics, V = 3.3V 5%, V = 0V, T = -40°C to 85°C
A
CC
EE
Symbol Parameter
VCC Power Supply Voltage
IEE Power Supply Current
Test Conditions
Minimum
Typical
3.3
Maximum
3.465
Units
V
3.135
151
189
mA
Table 4B. Power Supply DC Characteristics, V = 2.5V 5%, V = 0V, T = -40°C to 85°C
A
CC
EE
Symbol Parameter
VCC Power Supply Voltage
IEE Power Supply Current
Test Conditions
Minimum
Typical
2.5
Maximum
2.625
Units
V
2.375
146
182
mA
Table 4C. LVCMOS/LVTTL DC Characteristics, V = 3.3V 5% or 2.5V 5%, V = 0V, T = -40°C to 85°C
A
CC
EE
Symbol Parameter
Test Conditions
Minimum
Typical
Maximum
VCC + 0.3
VCC + 0.3
0.8
Units
VCC = 3.465V
VCC = 2.625V
VCC = 3.465V
2
V
V
V
V
VIH Input High Voltage
1.7
-0.3
-0.3
VIL
Input Low Voltage
VCC = 2.625V
0.7
OE,
FSEL[1:0]
IIH
Input High Current
Input Low Current
VCC = VIN = 3.465V or 2.625V
5
µA
µA
OE,
FSEL[1:0]
IIL
VCC = 3.465V or 2.625V, VIN = 0V
-150
©2016 Integrated Device Technology, Inc
3
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
Table 4D. Differential DC Characteristics, V = 3.3V 5% or 2.5V 5%, V = 0V, T = -40°C to 85°C
A
CC
EE
Symbol Parameter
Test Conditions
Minimum
Typical
Maximum
Units
Input
IIH
CLK, nCLK
CLK
VCC = VIN = 3.465V or 2.625V
150
µA
High Current
VIN = 0V,
VCC = 3.465V or 2.625V
-5
µA
µA
V
Input
IIL
Low Current
VIN = 0V,
VCC = 3.465V or 2.625V
nCLK
-150
0.15
VEE
Peak-to-Peak Voltage;
NOTE 1
VPP
1.3
Common Mode Input
Voltage; NOTE 1, 2
VCMR
VCC – 0.85
V
NOTE 1: VIL should not be less than -0.3V.
NOTE 2: Common mode input voltage is defined as the crossing point.
Table 4E. LVPECL DC Characteristics, V = 3.3V 5% or 2.5V 5%, V = 0V, T = -40°C to 85°C
A
CC
EE
Symbol Parameter
Test Conditions
Minimum
Typical
Maximum
Units
Output High Voltage;
NOTE 1
VOH
VCC – 1.4
VCC – 0.8
V
Output Low Voltage;
NOTE 1
VOL
VCC – 2.0
0.6
VCC – 1.6
1.0
V
V
Peak-to-Peak Output
Voltage Swing
VSWING
NOTE 1: Outputs termination with 50to VCC – 2V.
©2016 Integrated Device Technology, Inc
4
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
AC Electrical Characteristics
Table 5A. AC Characteristics, V = 3.3V 5%, V = 0V, T = -40°C to 85°C
A
CC
EE
Symbol Parameter
Test Conditions
Minimum
Typical
161.1328125
18
Maximum
Units
MHz
ps
fOUT
Output Frequency
tjit(cc)
Cycle-to-Cycle Jitter; NOTE 1
30
RMS Phase Jitter (Random);
NOTE 2, 3
fOUT = 161.1328125MHz,
Integration Range: 12kHz – 20MHz
tjit(Ø)
0.567
ps
tR / tF
odc
Output Rise/Fall Time
Output Duty Cycle
20% to 80%
150
49
450
51
ps
%
NOTE: Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device is
mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal equilibrium
has been reached under these conditions.
NOTE 1: This parameter is defined in accordance with JEDEC Standard 65.
NOTE 2: Refer to the Phase Noise plots.
NOTE 3: Characterized using Rhode Schwartz SMA100A for input clocks.
Table 5B. AC Characteristics, V = 2.5V 5%, V = 0V, T = -40°C to 85°C
A
CC
EE
Symbol Parameter
Test Conditions
Minimum
Typical
Maximum
Units
fMAX
Output Frequency
161.1328125
MHz
Cycle-to-Cycle Jitter;
NOTE 1
tjit(cc)
18
30
ps
ps
RMS Phase Jitter (Random);
NOTE 2, 3
fOUT = 161.1328125MHz,
Integration Range: 12kHz – 20MHz
tjit(Ø)
0.567
tR / tF
odc
Output Rise/Fall Time
Output Duty Cycle
20% to 80%
100
49
500
51
ps
%
NOTE: Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device is
mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal equilibrium
has been reached under these conditions.
NOTE 1: This parameter is defined in accordance with JEDEC Standard 65.
NOTE 2: Refer to the Phase Noise plots.
NOTE 3: Characterized using Rhode Schwartz SMA100A for input clocks.
©2016 Integrated Device Technology, Inc
5
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
Typical Phase Noise at 161.1328125MHz
Offset Frequency (Hz)
©2016 Integrated Device Technology, Inc
6
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
Parameter Measurement Information
2V
2V
SCOPE
SCOPE
V
Qx
V
Qx
CC
CC
nQx
nQx
VEE
VEE
-1.3V 0.165V
-0.5V 0.125V
3.3V LVPECL Output Load Test Circuit
2.5V LVPECL Output Load Test Circuit
V
CC
nQ
Q
nCLK
CLK
V
EE
Differential Input Level
Output Duty Cycle/Pulse Width/Period
nQ
Q
tcycle n
tcycle n+1
tjit(cc) = tcycle n – tcycle n+1
|
|
1000 Cycles
Cycle-to-Cycle Jitter
RMS Phase Jitter
©2016 Integrated Device Technology, Inc
7
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
Parameter Measurement Information, continued
nQ
Q
Output Rise/Fall Time
©2016 Integrated Device Technology, Inc
8
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
Applications Information
Wiring the Differential Input to Accept Single-Ended Levels
Figure 1 shows how a differential input can be wired to accept single
ended levels. The reference voltage V1= VCC/2 is generated by the
bias resistors R1 and R2. The bypass capacitor (C1) is used to help
filter noise on the DC bias. This bias circuit should be located as
close to the input pin as possible. The ratio of R1 and R2 might need
to be adjusted to position the V1in the center of the input voltage
swing. For example, if the input clock swing is 2.5V and VCC = 3.3V,
R1 and R2 value should be adjusted to set V1 at 1.25V. The values
below are for when both the single ended swing and VCC are at the
same voltage. This configuration requires that the sum of the output
impedance of the driver (Ro) and the series resistance (Rs) equals
the transmission line impedance. In addition, matched termination at
the input will attenuate the signal in half. This can be done in one of
two ways. First, R3 and R4 in parallel should equal the transmission
line impedance. For most 50applications, R3 and R4 can be
100. The values of the resistors can be increased to reduce the
loading for slower and weaker LVCMOS driver. When using
single-ended signaling, the noise rejection benefits of differential
signaling are reduced. Even though the differential input can handle
full rail LVCMOS signaling, it is recommended that the amplitude be
reduced. The datasheet specifies a lower differential amplitude,
however this only applies to differential signals. For single-ended
applications, the swing can be larger, however VIL cannot be less
than -0.3V and VIH cannot be more than VCC + 0.3V. Though some
of the recommended components might not be used, the pads
should be placed in the layout. They can be utilized for debugging
purposes. The datasheet specifications are characterized and
guaranteed by using a differential signal.
Figure 1. Recommended Schematic for Wiring a Differential Input to Accept Single-ended Levels
Recommendations for Unused Input Pins
Inputs:
LVCMOS Control Pins
For the control pins that have internal pullup resistors; additional
resistance is not required but can be added for additional protection.
A 1kresistor can be used.
©2016 Integrated Device Technology, Inc
9
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
3.3V Differential Clock Input Interface
The CLK /nCLK accepts LVDS, LVPECL, LVHSTL, HCSL and other
differential signals. Both VSWING and VOH must meet the VPP and
VCMR input requirements. Figures 2A to 2E show interface examples
for the CLK/nCLK input driven by the most common driver types. The
input interfaces suggested here are examples only. Please consult
with the vendor of the driver component to confirm the driver
termination requirements. For example, in Figure 2A, the input
termination applies for IDT open emitter LVHSTL drivers. If you are
using an LVHSTL driver from another vendor, use their termination
recommendation.
3.3V
1.8V
Zo = 50Ω
CLK
Zo = 50Ω
nCLK
Differential
LVHSTL
IDT
LVHSTL Driver
Input
R1
50Ω
R2
50Ω
Figure 2A. CLK/nCLK Input Driven by an
IDT Open Emitter LVHSTL Driver
Figure 2B. CLK/nCLK Input Driven by a
3.3V LVPECL Driver
3.3V
3.3V
*R3
*R4
CLK
nCLK
Differential
Input
HCSL
Figure 2C. CLK/nCLK Input Driven by a
3.3V LVPECL Driver
Figure 2D. CLK/nCLK Input Driven by a
3.3V HCSL Driver
Figure 2E. CLK/nCLK Input Driven by a 3.3V LVDS Driver
©2016 Integrated Device Technology, Inc
10
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
2.5V Differential Clock Input Interface
The CLK /nCLK accepts LVDS, LVPECL, LVHSTL, HCSL and other
differential signals. Both VSWING and VOH must meet the VPP and
VCMR input requirements. Figures 3A to 3E show interface examples
for the CLK/nCLK input driven by the most common driver types. The
input interfaces suggested here are examples only. Please consult
with the vendor of the driver component to confirm the driver
termination requirements. For example, in Figure 3A, the input
termination applies for IDT open emitter LVHSTL drivers. If you are
using an LVHSTL driver from another vendor, use their termination
recommendation.
2.5V
1.8V
Zo = 50
CLK
Zo = 50
nCLK
Differential
LVHSTL
Input
R1
50
R2
50
IDT Open Emitter
LVHSTL Driver
Figure 3A. CLK/nCLK Input Driven by an
IDT Open Emitter LVHSTL Driver
Figure 3B. CLK/nCLK Input Driven by a
2.5V LVPECL Driver
2.5V
2.5V
Zo = 50
Zo = 50
*R3
*R4
33
33
CLK
nCLK
Differential
Input
HCSL
R1
50
R2
50
*Optional R3 and R4 can be 0
Figure 3C. CLK/nCLK Input Driven by a
2.5V LVPECL Driver
Figure 3D. CLK/nCLK Input Driven by a
2.5V HCSL Driver
Figure 3E. CLK/nCLK Input Driven by a 2.5V LVDS Driver
©2016 Integrated Device Technology, Inc
11
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
VFQFN EPAD Thermal Release Path
In order to maximize both the removal of heat from the package and
the electrical performance, a land pattern must be incorporated on
the Printed Circuit Board (PCB) within the footprint of the package
corresponding to the exposed metal pad or exposed heat slug on the
package, as shown in Figure 4. The solderable area on the PCB, as
defined by the solder mask, should be at least the same size/shape
as the exposed pad/slug area on the package to maximize the
thermal/electrical performance. Sufficient clearance should be
designed on the PCB between the outer edges of the land pattern
and the inner edges of pad pattern for the leads to avoid any shorts.
and dependent upon the package power dissipation as well as
electrical conductivity requirements. Thus, thermal and electrical
analysis and/or testing are recommended to determine the minimum
number needed. Maximum thermal and electrical performance is
achieved when an array of vias is incorporated in the land pattern. It
is recommended to use as many vias connected to ground as
possible. It is also recommended that the via diameter should be 12
to 13mils (0.30 to 0.33mm) with 1oz copper via barrel plating. This is
desirable to avoid any solder wicking inside the via during the
soldering process which may result in voids in solder between the
exposed pad/slug and the thermal land. Precautions should be taken
to eliminate any solder voids between the exposed heat slug and the
land pattern. Note: These recommendations are to be used as a
guideline only. For further information, please refer to the Application
Note on the Surface Mount Assembly of Amkor’s Thermally/
Electrically Enhance Leadframe Base Package, Amkor Technology.
While the land pattern on the PCB provides a means of heat transfer
and electrical grounding from the package to the board through a
solder joint, thermal vias are necessary to effectively conduct from
the surface of the PCB to the ground plane(s). The land pattern must
be connected to ground through these vias. The vias act as “heat
pipes”. The number of vias (i.e. “heat pipes”) are application specific
SOLDER
PIN
SOLDER
EXPOSED HEAT SLUG
PIN
PIN PAD
GROUND PLANE
LAND PATTERN
(GROUND PAD)
PIN PAD
THERMAL VIA
Figure 4. P.C. Assembly for Exposed Pad Thermal Release Path – Side View (drawing not to scale
©2016 Integrated Device Technology, Inc
12
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
Termination for 3.3V LVPECL Outputs
The clock layout topology shown below is a typical termination for
LVPECL outputs. The two different layouts mentioned are
recommended only as guidelines.
designed to drive 50transmission lines. Matched impedance
techniques should be used to maximize operating frequency and
minimize signal distortion. Figures 5A and 5B show two different
layouts which are recommended only as guidelines. Other suitable
clock layouts may exist and it would be recommended that the board
designers simulate to guarantee compatibility across all printed
circuit and clock component process variations.
The differential outputs are low impedance follower outputs that
generate ECL/LVPECL compatible signals. Therefore, terminating
resistors (DC current path to ground) or current sources must be
used for functionality. These outputs are
3.3V
R3
125
R4
125
3.3V
3.3V
Zo = 50
+
_
Input
Zo = 50
R1
84
R2
84
Figure 5A. 3.3V LVPECL Output Termination
Figure 5B. 3.3V LVPECL Output Termination
©2016 Integrated Device Technology, Inc
13
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
Termination for 2.5V LVPECL Outputs
Figure 6A and Figure 6C show examples of termination for 2.5V
LVPECL driver. These terminations are equivalent to terminating
50to VCC – 2V. For VCC = 2.5V, the VCC – 2V is very close to
ground level. The R3 in Figure 6B can be eliminated and the
termination is shown in Figure 6C.
2.5V
VCC = 2.5V
2.5V
2.5V
VCC = 2.5V
50Ω
R1
250Ω
R3
250Ω
+
–
50Ω
50Ω
+
–
50Ω
2.5V LVPECL Driver
R1
50Ω
R2
50Ω
2.5V LVPECL Driver
R2
62.5Ω
R4
62.5Ω
R3
18Ω
Figure 6A. 2.5V LVPECL Driver Termination Example
Figure 6B. 2.5V LVPECL Driver Termination Example
2.5V
VCC = 2.5V
50Ω
+
50Ω
–
2.5V LVPECL Driver
R1
50Ω
R2
50Ω
Figure 6C. 2.5V LVPECL Driver Termination Example
©2016 Integrated Device Technology, Inc
14
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
Schematic Example
Figure 7 shows an example IDT8N3PG10MBKI-161 application
schematic in which the device is operated at VCC = +3.3V. The
schematic example focuses on functional connections and is
intended as an example only and may not represent the exact user
configuration. Refer to the pin description and functional tables in
the datasheet to ensure the logic control inputs are properly set. For
example OE, FSEL0 and FSEL1 can be configured from an FPGA
instead of pull up and pull down resistors as shown.
As with any high speed analog circuitry, the power supply pins are
vulnerable to random noise, so to achieve optimum jitter
performance isolation of the VCC pin from power supply is required.
In order to achieve the best possible filtering, it is recommended that
the placement of the filter components be on the device side of the
PCB as close to the power pins as possible. If space is limited, the
0.1µF capacitor on the VCC pin must be placed on the device side
with direct return to the ground plane though vias. The remaining
filter components can be on the opposite side of the PCB.
The input is driven by a DC coupled LVDS driver, though HCSL and
LVPECL are also compatible with the IDT CLK, nCLK differential
inputs. There are two LVPECL termination options shown; the
simple three resistor termination of R5, R6 and R7 and an AC
termination, used when coupling the IDT8N3PG10MBKI-161
LVPECL output stage to a different logic family receiver. Note that
the pull down resistors R8 and R9 that bias the LVPECL output
stage are to be placed on the IDT8N3PG10MBKI-161 side of the
PCB directly adjacent to pins 6 and 7 for best signal integrity. Most
often each output of a 3.3V LVPECL driver will be DC terminated
with a 130pull up and an 82pull down resistor at the 3.3V
LVPECL receiver. This is also a valid option with the
Power supply filter component recommendations are a general
guideline to be used for reducing external noise from coupling into
the devices. The filter performance is designed for a wide range of
noise frequencies. This low-pass filter starts to attenuate noise at
approximately 10kHz. If a specific frequency noise component is
known, such as switching power supplies frequencies, it is
recommended that component values be adjusted and if required,
additional filtering be added. Additionally, good general design
practices for power plane voltage stability suggests adding bulk
capacitance in the local area of all devices.
IDT8N3PG10MBKI-161, though the three resistor termination is
simpler in regard to component count and layout as well as lower in
power dissipation.
NOTE: This device package has an ePAD that is connected to
ground internally. The ePAD should be connected to GND on the
PCB through vias in order to improve heat dissipation.
©2016 Integrated Device Technology, Inc
15
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
Logic Control Input Examples
Set Logic Set Logic
V CC
V CC
Input to'1'
Input to'0'
3. 3V
R U1
1K
R U2
N ot I nstal l
F B 1
V C C
2
1
C 4
10u F
B LM18B B 221S N1
To Logic
Input
pi ns
To L og ic
In pu t
pi ns
C5
0. 1uF
R D1
N ot Inst al l
R D2
1K
Place 0.1uF bypass cap directly adjacent to the VCC pin
and on the component side of the circuit board.
VC C
C3
U 1
0. 1uF
F S EL0
F S EL1
9
10
FS E L0
FS E L1
1
2
O E
Z o
Z o
=
=
50 Ohm
OE
6
7
Q
Q
+
Reserv ed
Zo
Zo
=
=
50 O hm
50 O hm
50 Ohm
5
4
nQ
CLK
nQ
-
R10
100
+3. 3V PE CL R eceiv er
nCLK
R7
50
R5
50
LVD S D ri ver
R 6
50
C7
Z o = 50 Ohm
Q
0. 1u
V CC_ Rx
R8
150
R 1
R3
R4
50
+
-
C6
0. 01uF
R 2
50
R eceiv er
C8
Z o = 50 Ohm
nQ
0. 1u
R9
150
Alternate AC coupled LVPECL Termination
Select R3 and R4 to center the LVPECL swing in the c ommon
mode center of t he Receiver.
Place R8 and R9 pull down resistors on the U1 side of the board at
pins 6 and 7 respectively.
Figure 7. 8N3PG10MBKI-161 Schematic Layout Example
©2016 Integrated Device Technology, Inc
16
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
Power Considerations
This section provides information on power dissipation and junction temperature for the 8N3PG10MBKI-161.
Equations and example calculations are also provided.
1. Power Dissipation.
The total power dissipation for the 8N3PG10MBKI-161 is the sum of the core power plus the power dissipation due to loading.
The following is the power dissipation for VCC = 3.3V + 5% = 3.465V, which gives worst case results.
NOTE: Please refer to Section 3 for details on calculating power dissipation due to loading.
•
•
Power (core)MAX = VCC_MAX * IEE_MAX = 3.465V * 189mA = 654.885mW
Power (outputs)MAX = 32mW/Loaded Output pair
Total Power_MAX (3.465V, with all outputs switching) = 654.885mW + 32mW = 686.885mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad, and directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that the bond
wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = JA * Pd_total + TA
Tj = Junction Temperature
JA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance JA must be used. Assuming no air flow and
a multi-layer board, the appropriate value is 39.2°C/W per Table 6 below.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 0.687W * 39.2°C/W = 111.9°C. This is well below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the type of
board (multi-layer).
Table 6. Thermal Resistance for 10 Lead VFQFN, Forced Convection
JA
JA by Velocity
Meters per Second
0
Multi-Layer PCB, JEDEC Standard Test Boards
39.2°C/W
©2016 Integrated Device Technology, Inc
17
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
3. Calculations and Equations.
The purpose of this section is to calculate the power dissipation for the LVPECL output pair.
The LVPECL output driver circuit and termination are shown in Figure 8.
VCC
Q1
VOUT
RL
50Ω
VCC - 2V
Figure 8. LVPECL Driver Circuit and Termination
To calculate power dissipation due to loading, use the following equations which assume a 50load, and a termination voltage of VCC – 2V.
•
•
For logic high, VOUT = VOH_MAX = VCC_MAX – 0.8V
(VCC_MAX – VOH_MAX) = 0.8V
For logic low, VOUT = VOL_MAX = VCC_MAX – 1.6V
(VCC_MAX – VOL_MAX) = 1.6V
Pd_H is power dissipation when the output drives high.
Pd_L is the power dissipation when the output drives low.
Pd_H = [(VOH_MAX – (VCC_MAX – 2V))/RL] * (VCC_MAX – VOH_MAX) = [(2V – (VCC_MAX – VOH_MAX))/RL] * (VCC_MAX – VOH_MAX) =
[(2V – 0.8V)/50] * 0.8V = 19.2mW
Pd_L = [(VOL_MAX – (VCC_MAX – 2V))/RL] * (VCC_MAX – VOL_MAX) = [(2V – (VCC_MAX – VOL_MAX))/RL] * (VCC_MAX – VOL_MAX) =
[(2V – 1.6V)/50] * 1.6V = 12.8mW
Total Power Dissipation per output pair = Pd_H + Pd_L = 32mW
©2016 Integrated Device Technology, Inc
18
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
Reliability Information
Table 7. vs. Air Flow Table for a 10 Lead VFQFN
JA
JA vs. Air Flow
Meters per Second
0
Multi-Layer PCB, JEDEC Standard Test Boards
39.2°C/W
Transistor Count
The transistor count for 8N3PG10MBKI-161 is: 42,520
Package Dimensions
Table 8. Package Dimensions for 10-Lead VFQFN
VNJR-1
All Dimensions in Millimeters
Symbol
N
Minimum
Nominal
10
Maximum
A
0.80
0
0.90
1.00
0.05
0.45
1.45
A1
b1
b2
D
0.02
0.35
1.35
0.40
1.40
5.00 Basic
1.70
D2
E
1.55
3.55
1.80
3.80
7.00 Basic
3.70
E2
e1
1.0
e2
2.54
L1
L2
N
0.45
1.0
10
0.55
0.65
1.20
1.10
ND
NE
aaa
bbb
ccc
2
3
0.15
0.10
0.10
©2016 Integrated Device Technology, Inc
19
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
Package Outline
Package Outline - K Suffix for 10-Lead VFQFN
D
e1
B
NX L2
7
NX b1
bbb
C A B
0.1mm
4
INDEX AREA
(D/2 xE/2)
→
0.1mm
→
7
NX b2
bbb
C A B
4
INDEX AREA
(D/2 xE/2)
PIN#1 ID
9
TOP VIEW
aaa C 2x
D2
BOTTOM VIEW
ccc C
C
SEATING
PLANE
8
SIDE VIEW
0.08 C
Bottom View w/Type A ID
Bottom View w/Type C ID
2
1
2
1
CHAMFER
RADIUS
N N-1
4
N N-1
4
There are 2 methods of indicating pin 1 corner at the back of the VFQFN package:
1. Type A: Chamfer on the paddle (near pin 1)
2. Type C: Mouse bite on the paddle (near pin 1)
NOTE: The following package mechanical drawing is a generic
drawing that applies to any pin count VFQFN package. This drawing
is not intended to convey the actual pin count or pin layout of this
device. The pin count and pinout are shown on the front page. The
package dimensions are in Table 8.
©2016 Integrated Device Technology, Inc
20
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
Ordering Information
Table 9. Ordering Information
Part/Order Number
Marking
Package
Shipping Packaging
Temperature
-40C to 85C
-40C to 85C
8N3PG10MBKI-161LF
8N3PG10MBKI-161LFT
ICS10MBI161L
ICS10MBI161L
“Lead-Free” 10 Lead VFQFN
“Lead-Free” 10 Lead VFQFN
Tray
Tape & Reel
©2016 Integrated Device Technology, Inc
21
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
Revision History
Revision Date
Description of Change
▪ Removed ICS in the part number where needed.
▪ Updated header and footer.
January 28, 2016
©2016 Integrated Device Technology, Inc
22
Revision A January 28, 2016
8N3PG10MBKI-161 Data Sheet
Corporate Headquarters
6024 Silver Creek Valley Road
San Jose, CA 95138 USA
www.IDT.com
Sales
Tech Support
1-800-345-7015 or 408-284-8200
Fax: 408-284-2775
www.IDT.com/go/sales
www.idt.com/go/support
DISCLAIMER Integrated Device Technology, Inc. (IDT) reserves the right to modify the products and/or specifications described herein at any time, without notice, at IDT's sole discretion. Performance specifications
and operating parameters of the described products are determined in an independent state and are not guaranteed to perform the same way when installed in customer products. The information contained herein
is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the suitability of IDT's products for any particular purpose, an implied warranty of merchantability,
or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any license under intellectual property rights of IDT or any third parties.
IDT's products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably
expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are trademarks or registered trademarks of IDT and its subsidiaries in the United States and other countries. Other trademarks used herein are the property of
IDT or their respective third party owners.
For datasheet type definitions and a glossary of common terms, visit www.idt.com/go/glossary.
Copyright ©2016 Integrated Device Technology, Inc. All rights reserved.
厂商 型号 描述 页数 下载

3M

 		8N36 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

3M

 		8N36-AA0105-0.25 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

3M

 		8N36-AA0105-0.50 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

3M

 		8N36-AA0105-0.75 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

3M

 		8N36-AA0105-1.00 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

3M

 		8N36-AA0205-0.25 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

3M

 		8N36-AA0205-0.50 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

3M

 		8N36-AA0205-0.75 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

3M

 		8N36-AA0205-1.00 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

3M

 		8N36-AA0305-0.25 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.190005s
