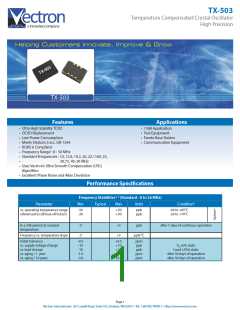

TX-503
Temperature Compensated Crystal Oscillator
High Precision
TX-503
Features
•ꢀ Ultra High Stability TCXO
Applications
•ꢀ 1588 Application
•ꢀ OCXO Replacement
•ꢀ Low Power Consumption
•ꢀ Test Equipment
•ꢀ Femto Base Station
•ꢀ Communication Equipment
•ꢀ Meets Stratum 3 acc. GR-1244
•ꢀ ROHS 6 Compliant
•ꢀ Frequency Range1: 8 - 50 MHz
•ꢀ Standard Frequencies : 10, 12.8, 19.2, 20, 22.1184, 25,
•ꢀ
30.72, 40, 50 MHz
•ꢀ Uses Vectron’s Ultra Smooth Compensation (USC)
Algorithm
•ꢀ Excellent Phase Noise and Allan Deviation
Performance Specifications
Frequency Stabilities1, 3 (Standard - 8 to 26 MHz)
Parameter
Min
Typical
Max
Units
Condition2
vs. operating temperature range
referenced to (dFmax+dFmin)/2
-50
-30
+50
+30
ppb
ppb
-40 to +85°C
-20 to +70°C
In a 24h period at constant
temperature
-5
-5
+5
+5
ppb
after 7 days of continous operation
Frequency vs. temperature slope
ppb/°C
Initial tolerance
vs. supply voltage change
vs. load change
vs. aging / 1. year
vs. aging / 10 years
-0.5
-10
-10
-1.0
-3.0
+0.5
+10
+10
+1.0
+3.0
ppm
ppb
ppb
ppm
ppm
VS 5ꢀ static
Load 10ꢀ static
after 30 days of operation
after 30 days of operation
Page 1
Vectron International • 267 Lowell Road, Suite 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Specifications
Supply Voltage (Vs)
Parameter
Supply Voltage (standard)
Current Consumption
Supply Voltage (Option)
Current Consumption
Min
Typical
3.3
Max
3.465
12
Units
V
Condition2
8 - 50MHz
3.135
mA
V
4.75
5
5.25
8
mA
RF Output
Signal [standard]
Load
HCMOS
15
pF
V
Signal Level (Vol)
Signal Level (Voh)
Duty Cycle
0.3
2.6
40
V
60
5
ꢀ
ns
@ Vs/2
Rise and Fall time
10 to 90 ꢀ
Frequency Tuning (EFC) 8 to 26 MHz
Fixed TCXO; No adjust
Tuning Range
Tuning Range
3.5
+10
10
ppm
ꢀ
Linearity
Tuning Slope
Positive
Control Input Impedance
Control Voltage (Vc)Range
>100
0.0
kOhm
1.65
2.5
3.3
4.5
V
V
@ 3.3V
@ 5V
0.5
Additional Parameters
-65
-93
-118
-140
-154
-156
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
1 Hz
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz
Phase Noise4
Jitter
0.2
ps RMS
E-12
E-12
g
@ 10 kHz to 5 MHz
@ 1sec.
ADEV
80
80
@10sec
Weight
2.0
Processing & Packing
Reflow Profile
Handling & Processing Note
IPC / JEDEC J-STD-020 (latest version)
Absolute Maximum Ratings
Supply Voltage (Vs)
-0.6
6.0
50
V
Output Load
pF
°C
°C
Operable Temperature Range
Storage Temperature Range
-40
-40
+85
+90
Environmental Conditions
Rapid Temperature Changes
MIL-883-1010 Cond B 500 cycles -55/125C
Vibration
Shock
MIL-STD-883 Meth 2007 Cond A 20G 20-2000Hz 4x in each 3axis 4 min
MIL-STD-202 Meth 213B Cond. F; 1500g 0,5ms 6 shocks in each direction
J_STD_002C Cond A, Through hole device/ Cond. B, SMD 255C (diving time 50,5sec.)
Dip+Look with 8h damp pre-treatment: solder wetting >95ꢀ
Solderability
Solvent Resistance
ESD
MIL-STD-883 Meth 2015 Solv. 1,3,4
JESD22-A114F Class 1B; 10* 2000V
Level 1 JESD22-A113-B
100ꢀ ROHS Compliant
Page 2
Moisture Sensitivity
RoHS Compliance
Vectron International • 267 Lowell Road, Suite 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Outline Drawing / Enclosure
TX-503
Height “H”
3.8
Pin Length “L”
NA
Pin Connections
1
Control Voltage Input (Vc) / N.C.
2
3
4
5
6
Enable / N.C.
Ground (Case)
RF-Output
N.C.
Supply Voltage Input (Vs)
Enable true table (optional): TX-503
Pin 2
High
Open
Pin 4
Data
Data
Low
High Tristate
Dimensions in mm
Page 3
Vectron International • 267 Lowell Road, Suite 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Data
TDEV-without filter
ADEV
Temperature Stability
Phase Noise4
Page 4
Vectron International • 267 Lowell Road, Suite 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Data
Frequency vs. Load
Frequency vs. Supply Voltage
Aging
Page 5
Vectron International • 267 Lowell Road, Suite 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Recommended Reflow Profile
Profile Feature
Pb-Free Assembly/
Sn-Pb Assembly
Profile Feature
Pb-Free Assembly/
Sn-Pb Assembly
Average ramp-up rate (TL to TP)
3°C/second max.
Time 25°C to Peak Temperature
8 minutes max.
Preheat -Temperature Min TSmin
-Temperature Min TSmax
150°C
200°C
60-180 seconds
Time maintained above
-Temperature (TL)
-Time (tL)
217°C
60-150 seconds
-Time (min to max) tS
TSmax to TL -Ramp-up Rate
3°C/second max
Time maintained above
-Temperature (TL)
-Time (tL)
217°C
60-150 seconds
Time within 5°C of actual Peak
Temperature (tP)
20-40 seconds
Peak Temperature (TP)
max 260°C
Ramp-down Rate
6°C/ second max
Note: All temperatures refer to topside of the package, measured on the package body surface.
SMD oscillators must be on the top side of the PCB during the reflow process.
Standard Shipping Method (TX-503)
Enclosure Type
G287
Tape Width W (mm)
24
Quantity per meter
83,3
Quantity per reel
850
Dimension P
12
Page 6
Vectron International • 267 Lowell Road, Suite 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Ordering Information1,3
TX - 503 0 - E A J - 308 0 - 10M0000000
Frequency
Product Family
TX: TCXO
Package
High PrecisionTCXO
SMD version: 503
Frequency Control
0: No Tuning
1: 3.5 ppm
2: Enable
3: 3.5 ppm; Enable
Height
0: 3.8 mm
Stability Code
308: 30 ppb
508: 50 ppb
708: 70 ppb
107: 100 ppb
Supply Voltage
D: 5V
E: 3.3V
RF Output Code
Temperature Range
A: HCMOS
J: -20°C to +70°C
E: -40°C to +85°C
Notes:
1. Contact factory for other frequencies. Not all options and codes are available at all frequencies.
2. Unless otherwise stated conditions are valid at F=20MHz; Vs=3.3V; Vc=1.65; T=25°C; Output Signal=HCMOS; load=15pF
3. Contact factory for availability.
4. Phase noise degrades with increasing output frequency.
Subject to technical modification.
For Additional Information, Please Contact
USA:
Europe:
Asia:
Vectron International
267 Lowell Road, Suite 102
Hudson, NH 03051
Tel: 1.888.328.7661
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 7268.801.100
Vectron International
68 Yin Cheng Road(C), 22nd Floor
One LuJiaZui
Pudong, Shanghai 200120, China
Tel: +86 21 6194 6886
Fax: +86 21 6194 6699
Fax: 1.888.329.8328
Fax: +49 (0) 7268.801.282
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
Rev: 08/2017
Page 7
Vectron International • 267 Lowell Road, Suite 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
