QTFT-2MB1-RT

型号:

QTFT-2MB1-RT

品牌:

RALSTON[ RALSTON INSTRUMENTS. ]

页数:

1 页

PDF大小:

351 K

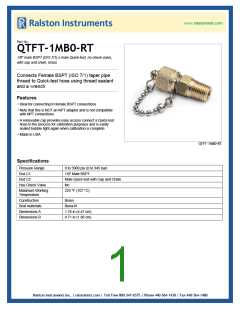

Part No.
QTFT-1MB0-RT
1/8" male BSPT (ISO 7/1) x male Quick-test, no check-valve,
with cap and chain, brass
Connects Female BSPT (ISO 7/1) taper pipe
thread to Quick-test hose using thread sealant
and a wrench
Features
Ideal for connecting to female BSPT connections
Note that this is NOT an NPT adapter and is not compatible
with NPT connections
A removable cap provides easy access connect a Quick-test
hose to the process for calibration purposes and is easily
sealed bubble-tight again when calibration is complete
Made in USA
QTFT-1MB0-RT
Specifications
Pressure Range
End C1
0 to 5000 psi (0 to 345 bar)
1/8" Male BSPT
End C2
Male Quick-test with Cap and Chain
No
Has Check Valve
Maximum Working
Temperature
225 °F (107 °C)
Construction
Seal materials
Dimensions A
Dimensions B
Brass
Buna-N
1.76 in (4.47 cm)
0.71 in (1.80 cm)
Ralston Instruments Inc. | ralstoninst.com | Toll Free 800-347-6575 | Phone 440-564-1430 | Fax 440-564-1480
