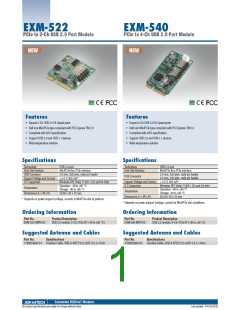

EXM-522
EXM-540
PCIe to 2-Ch USB 2.0 Port Module
PCIe to 4-Ch USB 2.0 Port Module
NEW
NEW
RoHS
COMPLIANT
2002/95/EC
RoHS
COMPLIANT
2002/95/EC
Features
Features
Expand 2-Ch USB 2.0 Hi-Speed ports
Half size MiniPCIe type compliant with PCI Express TM 2.0
Compliant with xHCI specification
Support USB 2.0 and USB 1.1 devices
Wide temperature solution
Expand 4-Ch USB 2.0 Hi-Speed ports
Half size MiniPCIe type compliant with PCI Express TM 2.0
Compliant with xHCI specification
Support USB 2.0 and USB 1.1 devices
Wide temperature solution
Specifications
Technology
Specifications
Technology
USB 2.0 port
USB 2.0 port
Host Site Interface
USB Connector
Support Voltage and Current + 5.0 V, 500 mA*
MiniPCIe thru PCIe interface
2.0 mm, 2x5-pins, male pin header
Host Site Interface
MiniPCIe thru PCIe interface
2.0 mm, 2x5-pins, male pin header
2.0 mm, 2x5-pins, male pin header
USB Connector
Support Voltage and Current + 5.0 V, 500 mA*
O.S Supported
Windows XP/ Vista/ 7/ 8/8.1 (32 and 64-bits)
O.S Supported
Windows XP/ Vista/ 7/ 8/8.1 (32 and 64-bits)
Operation: -40 to +85 °C
Storage: -40 to +85 °C
26.65 x 30 x 15 mm
Temperature
Operation: -40 to +85 °C
Storage: -40 to +85 °C
50.59 x 30 x 15 mm
Temperature
Dimensions (L x W x H)
Dimensions (L x W x H)
* Depends on power support (voltage, current) at MiniPCIe slot of platform.
* Depends on power support (voltage, current) at MiniPCIe slot of platform.
Ordering Information
Ordering Information
Part No.
Product Description
Part No.
Product Description
EXM-522-MPH01E
USB 2.0 module, 2-Ch, PCIe I/F (-40 to +85 °C)
EXM-540-MPF01E
USB 2.0 module, 4-Ch, PCIe I/F (-40 to +85 °C)
Suggested Antenna and Cables
Suggested Antenna and Cables
Part No.
Specifications
Part No.
Specifications
1700024300-01 Function Cable, USB-A 4P(F)*2 to 2x5P-2.0, L=15cm
1700024300-01 Function Cable, USB-A 4P(F)*2 to 2x5P-2.0, L=15cm
Embedded M2M/IoT Modules
All product specifications are subject to change without notice
