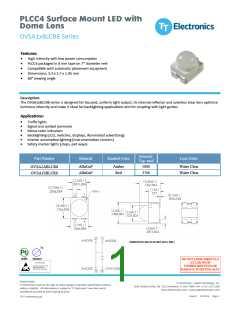

OVSA1xBLCR8 Series
Features:
High intensity with low power consumpꢁon
PLCC4 packaged in 8 mm tape on 7” diameter reel
Compaꢁble with automaꢁc placement equipment
Dimensions: 3.2 x 2.7 x 1.95 mm
60° viewing angle
Descripꢀon:
The OVSA1xBLCR8 series is designed for focused, uniform light output. Its internal reflector and colorless clear lens opꢁmize
luminous intensity and make it ideal for backlighꢁng applicaꢁons and for coupling with light guides.
Applicaꢀons:
Traffic lights
Signal and symbol luminaire
Mono-color indicators
Backlighꢁng (LCD, switches, displays, illuminated adverꢁsing)
Interior automoꢁve lighꢁng (instrumentaꢁon clusters)
Safety marker lights (steps, exit ways)
Intensity
Typ. mcd
Part Number
Material
Emitted Color
Lens Color
AlInGaP
AllnGaP
Amber
Red
5000
3700
Water Clear
Water Clear
OVSA1ABLCR8
OVSA1SBLCR8
DIMENSIONS ARE IN INCHES AND [ MM ]
5a
Moisture
RoHS
DO NOT LOOK DIRECTLY
AT LED WITH
UNSHIELDED EYES OR
DAMAGE TO RETINA MAY
General Note
TT Electronics | Optek Technology, Inc.
1645 Wallace Drive, Ste. 130, Carrollton, TX USA 75006 |Ph: +1 972 323 2200
TT Electronics reserves the right to make changes in product specificaꢁon without
noꢁce or liability. All informaꢁon is subject to TT Electronics’ own data and is
considered accurate at ꢁme of going to print.
www.ꢀelectronics.com | sensors@ꢀelectronics.com
Issue B 11/2016 Page 1
