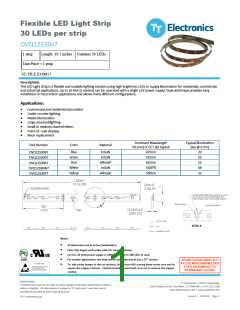

Flexible LED Light Strip
30 LEDs per strip
OVQ12S30x7
1 strip
Length: 19.7 inches Contains 30 LEDs
Unit Price = 1 strip
UL FILE E339817
Descripꢀon:
This LED Light Strip is a flexible and scalable lighꢁng soluꢁon using high brightness LEDs to supply illuminaꢁon for residenꢁal, commercial,
and industrial applicaꢁons. Up to 16 feet (5 meters) can be operated with a single 12V power supply. Dual-sided tape provides easy
installaꢁon in most indoor applicaꢁons and allows many different configuraꢁons.
Applicaꢀons:
Commercial and residenꢁal decoraꢁon
Under-counter lighꢁng
Media illuminaꢁon
Large area backlighꢁng
Small to medium channel leꢀers
Point-of –sale displays
Neon replacement
Dominant Wavelength
λD (nm) or CCT (K) Typical
Typical Illuminaꢁon
(lux @ 0.5m)
Part Number
Color
Material
Blue
Green
Red
InGaN
InGaN
470nm
525nm
625nm
5500°K
590nm
20
50
32
68
32
OVQ12S30B7
OVQ12S30G7
OVQ12S30R7
OVQ12S30W7
OVQ12S30Y7
AllnGaP
InGaN
White
Yellow
AllnGaP
Notes:
All dimensions are in inches [millimeters].
Each strip begins with solder pads for wire connecꢁon.
12-volt, 20 Waꢀ power supply is sufficient for up to 300 LEDs (1 reel).
RoHS
For smaller applicaꢁons, the strip can be cut at the end of any 1.97” secꢁon.
DO NOT LOOK DIRECTLY
AT LED WITH UNSHIELDED
EYES OR DAMAGE TO
RETINA MAY OCCUR.
To add solder bumps to the cut secꢁons, the X-Acto® #16 scoring blade works very well to
expose the copper contacts. Cauꢁon should be exercised so as not to remove the copper
coaꢁng.
General Note
TT Electronics | OPTEK Technology
1645 Wallace Drive, Carrollton, TX 75006|Ph: +1 972 323 2200
www.ꢀelectronics.com | www.optekinc.com
TT Electronics reserves the right to make changes in product specificaꢁon without
noꢁce or liability. All informaꢁon is subject to TT Electronics’ own data and is
considered accurate at ꢁme of going to print.
Issue B 11/2016 Page 1
