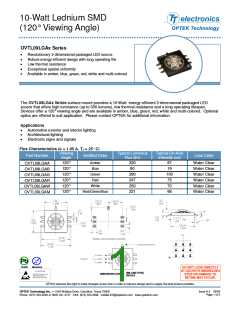

10-Watt Lednium SMD
(120° Viewing Angle)
OVTL09LGAx Series
xꢀ Revolutionary 3-dimensional packaged LED source
xꢀ Robust energy-efficient design with long operating life
xꢀ Low thermal resistance
xꢀ Exceptional spatial uniformity
xꢀ Available in amber, blue, green, red, white and multi-colored
The OVTL09LGAx Series surface mount provides a 10-Watt energy-efficient 3-dimensional packaged LED
source that offers high luminance (up to 330 lumens), low thermal resistance and a long operating lifespan.
Devices offer a 120° viewing angle and are available in amber, blue, green, red, white and multi-colored. Optional
optics are offered to suit application. Please contact OPTEK for additional information.
Applications
xꢀ Automotive exterior and interior lighting
xꢀ Architectural lighting
xꢀ Electronic signs and signals
Flux Characteristics (IF = 1.05 A, TJ = 25° C)
Viewing
Angle
Typical Luminous
Flux (lm)
Typical On-Axis
Intensity (cd)
Part Number
Emitted Color
Lens Color
Amber
Blue
120°
120°
120°
120°
120°
120°
330
60
67
19
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
OVTL09LGAA
OVTL09LGAB
OVTL09LGAG
OVTL09LGAR
OVTL09LGAW
OVTL09LGAM
Green
290
247
250
221
100
75
Red
White
70
Red/Green/Blue
68
Moisture
RoHS
DO NOT LOOK DIRECTLY
AT LED WITH UNSHIELDED
EYES OR DAMAGE TO
RETINA MAY OCCUR.
[MILLIMETERS]
INCHES
DIMENSIONS ARE IN:
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. — 1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue A.5 08/06
Page 1 of 5
10-Watt Lednium SMD
OVTL09LGx Series
Absolute Maximum Ratings
DC Forward Current
Peak Pulsed Forward Current1
1.05 A
3 A
Reverse Voltage
15 V
Maximum Allowable Junction Temperature2
Storage and Operating Temperature
130° C
-50° ~ +85 ° C
Notes:
1. Pulse width 1 ms maximum, duty cycle 1/16.
2. Thermal resistance junction to board (TJB) is 5° C/W.
Electrical Characteristics (IF = 1.05 A, TJ = 25° C)
PARAMETER
Forward Voltage (Amber)
MIN
6.3
9.5
10.3
6.3
9.0
9.5
----
TYP
7.0
MAX
7.9
UNITS
SYMBOL
V
V
Forward Voltage (Blue)
10.2
11.0
7.0
11.2
11.9
7.9
Forward Voltage (Green)
V
VF
Forward Voltage (Red)
V
Forward Voltage (Red/Green/Blue)
Forward Voltage (White)
9.7
10.7
11.2
----
V
10.2
-6.0
-4.8
-5.0
120
V
VF Temperature Co-efficient (Amber, Red)
VF Temperature Co-efficient (White, Blue)
VF Temperature Co-efficient (Green)
50% Power Angle
mV/°C
mV/°C
mV/°C
deg
----
----
----
----
2
½
----
----
Optical Characteristics (IF = 1.05 A, TJ = 25° C, 2 ½ = 120°)
DOMINANT WAVELENGTH
SPECTRAL FULL-WIDTH-
HALF-MAXIMUM
DOMINANT WAVELENGTH
TEMPERATURE DEPENDENCE
COLOR
MIN
590
457
520
620
N/A
TYP
595
460
525
625
N/A
MAX
600
463
530
630
N/A
Amber
Blue
16 nm
24 nm
40 nm
18 nm
N/A
0.08 nm/° C
0.05 nm/° C
0.04 nm/° C
0.05 nm/° C
N/A
Green
Red
White
Critical Thermal Conditions (To maintain junction temperature (TJ) at 85° C)
WHEN MOUNTED ON:
FR4
PC BOARD
ANOTHERM
PLATE
ANOTHERM
EXTRUSION
ACTIVE
HEATSINK
IMS
USE SAFE OPERATING CURRENT OF:
200 mA
500 mA
700 mA
800 mA
1000 mA
NOTE: Refer to OPTEK Application Note #228 on thermal management (www.optekinc.com/pdf/AppNote228.pdf).
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A.5 08/06
Page 2 of 5
OPTEK Technology Inc. — 1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
10-Watt Lednium SMD
OVTL09LGx Series
CIE Chromaticity Diagram
Y
X
Spatial Intensity Distribution
1.0
0.8
0.6
0.4
0.2
0.0
-100
-80
-60
-40
-20
0
20
40
60
80
100
Angle (degrees)
Normalized Spectral Intensity vs Angular Displacement
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. — 1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue A.5 08/06
Page 3 of 5
10-Watt Lednium SMD
OVTL09LGx Series
Typical Electro-Optical Characteristics Curves
Input Current = 1.05 A, TJ = 25° C
Input Current = 1.05 A, TJ = 25° C
1.0
0.8
0.6
0.4
0.2
0.0
1.0
0.8
0.6
0.4
0.2
0.0
5000 ° K
380 430 480 530 580 630 680 730 780
380 430 480 530 580 630 680 730 780
Wavelength (nm)
Wavelength (nm)
Wavelength Characteristics
Wavelength Characteristics
Luminosity normalized to TJ = 25° C
11
2
1.6
1.2
0.8
0.4
0
10
9
8
7
6
0
20
40
60
80
100
120
-
0
20
40
60
80 100 120 140 160
Forward Current (% of rating)
Junction Temperature °C
Forward Current Characteristics
Junction Temperature Characteristics
Derating of continuous forward current must be observed to
Derating of continuous forward current must be observed to
prevent maximum junction temperature from being exceeded.
prevent maximum junction temperature from being exceeded.
120
100
80
120
100
80
60
60
40
40
20
20
0
20
40
60
80
100
120
140
0
20
40
60
80
100
120
140
Ambient Temperature °C
Ambient Temperature °C
Derating Curves - Blue, Green and White LEDs
Derating Curves - Amber and Red LEDs
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A.5 08/06
Page 4 of 5
OPTEK Technology Inc. — 1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
10-Watt Lednium SMD
OVTL09LGx Series
OPTEK Lednium Turtle Markings
Packaging: 25 pieces per tray
OPTEK’s Lednium Series Solid State Lighting products package the highest quality LED chips.
Typically, the lumen output of these chips can be as high as 70% after 50,000 hours of operation. This
prediction is based on specific test results and on tests on similar materials, and relies on strict
observation of the design limits and ratings included in this data sheet.
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. — 1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue A.5 08/06
Page 5 of 5
