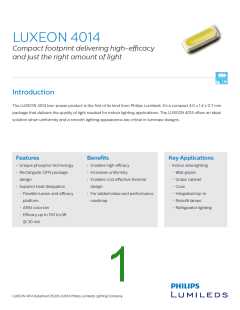

LUXEON 4014
Compact footprint delivering high-efficacy
and just the right amount of light
Introduction
The LUXEON 4014 low-power product is the first of its kind from Philips Lumileds. It’s a compact 4.0 x 1.4 x 0.7 mm
package that delivers the quality of light needed for indoor lighting applications. The LUXEON 4014 offers an ideal
solution when uniformity and a smooth lighting appearance are critical in luminare designs.
Features
Benefits
Key Applications
•ꢀ Indoor area lighting
- Wall grazer
•ꢀ Unique phosphor technology
•ꢀ Rectangular QFN package
design
•ꢀ Enables high efficacy
•ꢀ Increases uniformity
•ꢀ Enables cost effective thermal
design
- Under cabinet
- Cove
•ꢀ Superior heat dissipation
- Flexible lumen and efficacy
platform
•ꢀ For added value and performance
roadmap
- Integrated lay-in
- Retrofit lamps
- Refrigerator lighting
- ANSI color bin
- Efficacy up to 150 lm/W
@ 30 mA
LUXEON 4014 Datasheet DS205 ©2014 Philips Lumileds Lighting Company.
Table of Contents
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Product Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Average Lumen Maintenance Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Environmental Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Product Performance and Characterization Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Absolute Maximum Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
JEDEC Moisture Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Reflow Soldering Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Material Information & Mechanical Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Characteristic Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Typical Forward Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Light Output Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Typical Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Emitter Pocket Tape Packaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Emitter Reel Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Product Binning and Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Color Bin Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
i
General Information
Product Nomenclature
LUXEON 4014 is tested and binned at Tj = 25°C and 30 mA DC.
The part number designation is explained as follows:
M X Z A – B C D D – 0 0 E E
Where:
A
—
—
—
—
designates minimum CRI (value 8 for 80, 9 for 90)
designates radiation pattern (value P for Lambertian)
designates color (W for White)
B
C
DD
designates nominal CCT (27 for 2700K, 30 for 3000K, 35 for 3500K, 40 for 4000K and
50 for 5000K)
EEEE — designates additional part numbers
Therefore 4000K, 80 CRI LUXEON 4014 product will be:
M X Z 8 – P W 4 0 – 0 0 0 0
Average Lumen Maintenance Characteristics
Lumen maintenance for solid-state lighting devices (LEDs) is typically defined in terms of the percentage of initial
light output remaining after a specified period of time. Philips Lumileds projects that LUXEON 4014 MXZ8-PW40-00
products will deliver, on average, 70% lumen maintenance (L70) at >30,000 hours of operation at a forward current
of up to 30 mA.This projection and detailed operating condition will be further validated and disclosed. Observation
of design limits included in this data sheet is required in order to achieve this projected lumen maintenance.
Environmental Compliance
Philips Lumileds is committed to providing environmentally friendly products to the solid-state lighting market.
LUXEON 4014 is compliant to the European Union directives on the restriction of hazardous substances in electronic
equipment, namely the RoHS and REACH directives. Philips Lumileds will not intentionally add the following
restricted material to the LUXEON 4014: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls
(PBB) or polybrominated diphenyl ethers (PBDE).
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
2
Product Performance and Characterization Guide
Typical Product Characteristics at 30 mA and 60 mA
Table 1. Performance Characteristics at Tj = 25˚C, If
Luminous Flux @ 30 mA, 25°C
Luminous Flux @ 60 mA, 25°C
Vf at 30 mA
Typical
Nominal
CCT
Minimum
CRI
Part Number
Minimum (lm)
Typical (lm)
Minimum (lm)
Typical (lm)
5000K
5700K
6500K
2200K
2500K
2700K
MXZ7-PW50
MXZ7-PW57
MXZ7-PW65
MXZ8-PW22
MXZ8-PW25
MXZ8-PW27
70
70
70
80
80
80
10.0
10.0
10.0
8.5
13.0
13.0
13.0
9.7
18
18
18
14
14
15
23
23
23
17
2.9
2.9
2.9
2.9
2.9
2.9
8.5
10.2
10.5
17
8.5
18
3000K
3500K
4000K
5000K
5700K
6500K
2700K
3000K
4000K
5000K
MXZ8-PW30
MXZ8-PW35
MXZ8-PW40
MXZ8-PW50
MXZ8-PW57
MXZ8-PW65
MXZ9-PW27
MXZ9-PW30
MXZ9-PW40
MXZ9-PW50
80
80
8.5
9.0
10.0
10.0
9.5
11.0
11.0
12.0
12.0
11.5
11.5
9.0
9.3
11.1
15
16
18
18
17
17
14
14
17
17
20
20
22
22
20
20
17
2.9
2.9
2.9
2.9
2.9
2.9
2.9
2.9
2.9
2.9
80
80
80
80
9.5
90
8.5
90
8.5
17
90 typ.
90 typ.
10.0
10.0
20
20
11.1
Notes for Table 1:
1. Philips Lumileds maintains a tolerance of 7.5% on luminous flux, 2 on CRI.
2. Production parts are binned at 30 mA, 25°C.
3. Performance at 60 mA, 25°C is for reference only.
Electrical Characteristics
Electrical Characteristics of Low-Power LEDs
Solder Pad Temperature = 25°C, Test Current = 30 mA
Table 2.
Forward Voltage Vf [1] (V)
Typ. Temperature Coefficient
of Forward Voltage[2] (mV/°C)
Typical Thermal Resistance
Junction to Solder Pad (°C/W)
Ru J-C
Part
Numbers
Minimum
Typical
Maximum
DVf / DT
J
MXZx-PWXX
2.7
2.9
3.2
-1.6
45
Notes for Table 2:
1. Philips Lumileds maintains a tolerance of 0.10V on forward voltage measurements.
2. Measured between Tj = 25°C and Tj = 110°C.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
3
Absolute Maximum Ratings
Table 3. Operating Condition and Ratings
Parameter
Maximum Performance
DC Forward Current[1]
Peak Pulsed Forward Current[2]
Soldering Temperature
90 mA
100 mA
260°C
3
Allowable Reflow Cycles
< 2000V Human Body Model (HBM) Class 2 JEDEC JS-001-2012
400V Machine Model (MM) Class C JESD22-A115C
ESD Sensitivity
Storage Temperature
LED Junction Temperature
Operating Case Temperature
Reverse Voltage (Vr)[3] [4]
-40°C - 85°C
125°C
85°C
-5V
Notes for Table 3:
1. Ripple current with a frequency of 50-150 Hz is allowed, as long as the average of the current waveform is below 80 mA, and the maximum of the current waveform is lower than 100 mA.
2. At 10% duty cycle and pulse width 10mS.
3. LUXEON low-power LEDs are not designed to be driven in reverse bias.
4. At maximum reverse current of 10 μA.
JEDEC Moisture Sensitivity
Table 4.
Soak Requirements
Floor Life
Level
Standard
Time
Conditions
Time
Conditions
2
1 year
[ 30°C / 60% RH
168 Hrs. + 5 / -0 Hrs.
[ 85°C / 60% RH
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
4
Reflow Soldering Characteristics
300
Tp: 260°C
260°C +0/-5°C
255°C +5/-0°C
250
200
150
100
50
Ramp-Up Rate, 3°C/sec. max.
TL: 217°C
Tsmax: 200°C
tp: 10-30sec. 30sec max.
tL: 60-150 sec,max
Tsmin: 150°C
ts: 60-120sec.
0
0
50
100
150
200
250
300
Time (seconds)
Temperature Profile for Table 5.
Table 5. Reflow Profile in Accordance with J-Std-020D.
Profile Feature
Lead Free Assembly
Preheat/Soak :
Temperature Min (T
)
150°C
200°C
smin
Temperature Max (T
)
smax
Maximum Time (ts) from Tsmin to T
120 seconds
smax
Ramp-up Rate (TL to Tp )
Liquidous Temperature (TL )
3°C / second
217°C
Maximum Time (tL ) Maintained above TL
150 seconds
260°C
Maximum Peak Package Body Temperature (Tp )
Time (tp ) within 5°C of the specified temperature (T )
10-30 seconds
6°C / second
8 minutes
c
Maximum Ramp-Down Rate (Tp to TL )
Maximum Time 25°C to Peak Temperature
Note for Table 5:
1. All temperatures refer to the application Printed Circuit Board (PCB), measured on the surface adjacent to the package body.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
5
Material Information & Mechanical Dimensions
MXZx-PWxx
Table 6. Material Information
Material/Component
Lead Frame Base:
Reflector Plating:
Electrode Plating:
Package Body:
Encapsulant:
Specification
Copper Alloy
Ni/Ag
Ni/Ag
High Temperature Thermal Plastic
Silicone Resin, with Phosphor
InGaN
LED Chip:
+/- 0.05
Anode
Cathode
Cathode Marker
Figure 1. Package outline dimensions.
Notes for Figure 1:
1. All dimensions are in millimeters.
2. General tolerance +/- 0.10.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
6
Characteristic Curves
Relative Spectral Distribution vs. Wavelength
Junction Temperature at 25°C; Test Current = 30 mA
Figure 2. Emission color spectrum for MXZ7-PWxx
Relative Spectral Distribution vs. Wavelength
Junction Temperature at 25°C; Test Current = 30 mA
Figure 3. Emission color spectrum for MXZ8-PWxx.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
7
Characteristic Curves, Continued
Relative Spectral Distribution vs. Wavelength
Junction Temperature at 25°C; Test Current = 30 mA
Figure 4. Emission color spectrum for MXZ9-PWxx.
Relative Light Output Characteristics over Temperature
Test Current = 30 mA
Figure 5. Relative light output vs. junction temperature for MXZx-PWxx.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
8
Typical Forward Current
Junction Temperature at 25°C
Figure 6. Forward current vs. forward voltage for MXZx-PWxx.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
9
Light Output Characteristics
Relative Light Output Characteristics over Forward Current
Junction Temperature at 25°C
Figure 7. Light output vs. forward current for MXZx-PWxx.
Typical Relative Efficiency vs. Forward Current
Junction Temperature at 25°C
Figure 8. Typical relative efficiency vs. forward current for MXZx-PWxx.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
10
Typical Radiation Patterns
Junction Temperature at 25°C
Figure 9. Radiation pattern for MXZx-PWxx.
Polar Radiation Pattern, Junction Temperature at 25°C
Figure 10. Radiation pattern in polar for MXZx-PWxx.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
11
Emitter Pocket Tape Packaging
Figure 11. Emitter pocket tape packaging.
Notes for Figure 11:
1. All dimensions are in millimeters.
2. Empty component pockets sealed with top cover tape.
3. The maximum number of consecutive missing LEDs is two.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
12
Emitter Reel Packaging
18.4 max
2.0 +0.5/-0.0
Ø24.0 0.5
PART NO: MXM8-PW40-5601
LOT NO: 090430-0136959718
QUANTITY: 1998
Ø13.0 0.2
CAT CODE: L56X
DATE CODE: 1205
12.4 +2/-0
Figure 12. Emitter reel packaging.
Notes for Figure 12:
1. All dimentions are in millimeters.
2. Empty component pockets sealed with top cover tape.
3. 7 inch reel-3000 pieces per reel.
4. Minimum packing quantity is 1000 pieces.
5. The maximum number of consecutive missing LEDs is two.
6. In accordance with EIA-481-1-B specification.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
13
Product Binning and Labeling
Purpose of Product Binning
In the manufacturing of LED products, there is a distribution of performance around the typical values given in the
technical data sheets. For this reason, Philips Lumileds bins the LED components for luminous flux, color and forward
voltage (Vf).
Decoding Product Bin Labeling
LUXEON 4014 emitters are labeled using a four digit alphanumeric code (CAT code) depicting the bin values for
emitters packaged on a single reel. All emitters packaged within a reel are of the same 3-variable bin combination.
Using these codes, it is possible to determine optimum mixing and matching of products for consistency in a given
application.
Reels of 2700K, 3000K, 3500K, 4000K, 5000K, 6500K emitters are labeled with a four digit alphanumeric CAT code
following the format below.
ABCD
A = Flux bin (L etc.)
B and C = Color bin (For example 51, 52, 53, 54, 55, 56)
D = Vf bin
Luminous Flux and Forward Voltage Bins
Tables 7 and 8 list the standard photometric luminous flux bins for LUXEON 4014 emitters (tested and binned at
30 mA). Although several bins are outlined, product availability in a particular bin varies by production run and by
product performance. Not all bins are available in all colors.
Table 7. Flux Bins
Minimum Photometric Flux
(lm)
Maximum Photometric Flux
(lm)
Bin Code
A
8.5
10.0
11.5
10.0
11.5
B
C
13.0
15.0
18.0
D
13.0
15.0
E
Tested and binned at 25°C, If=30 mA. Tester tolerance: 7.5%.
Table 8. Vf Bins
Minimum Forward Voltage
(V)
Maximum Forward Voltage
(V)
Bin Code
S
2.7
2.8
2.9
3.0
3.1
2.8
2.9
3.0
3.1
T
V
W
X
3.2
Tested and binned at 25°C, If=30 mA. Tester tolerance: 0.10V.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
14
Color Bin Structure
MXZ8-PW22 Color Bin Structure
0.450
0.440
0.430
A1
A3
A5
0.420
y
A2
0.410
A4
A6
0.400
0.390
0.380
0.475
0.485
0.495
0.505
0.515
0.525
0.535
x
Figure 13. ANSI 2200K 1/6th color bin structure, forwards current = 30 mA, thermal pad temperature = 25°C.
LUXEON Mid-Power Emitters are tested and binned by x,y coordinates.
Table 9.
LUXEON Mid-Power ANSI 1/6 Color Bin Coordinates for MXZ8-PW22-0000 Emitter
Bin Code
x
y
Bin Code
x
y
0.5178
0.5262
0.5154
0.5075
0.4362
0.4381
0.4194
0.4176
0.4996
0.5075
0.4972
0.4897
0.4158
0.4176
0.3990
0.3974
A1
A4
0.5075
0.5154
0.5046
0.4972
0.4176
0.4194
0.4007
0.3990
0.5010
0.5094
0.4996
0.4917
0.4323
0.4343
0.4158
0.4140
A2
A3
A5
A6
0.5094
0.5178
0.5075
0.4996
0.4343
0.4362
0.4176
0.4158
0.4917
0.4996
0.4897
0.4823
0.4140
0.4158
0.3974
0.3957
Notes for Table 9:
1. Tested and binned at 25°C, IF=30 mA. Tester tolerance: 0.01 in x and y coordinates.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
15
Color Bin Structure
MXZ8-PW25 Color Bin Structure
0.455
0.445
0.435
0.425
2500K
91
93
95
y
0.415
0.405
0.395
0.385
0.375
92
94
96
0.450
0.460
0.470
0.480
0.490
0.500
0.510
0.520
x
Figure 13. ANSI 2500K 1/6th color bin structure, forwards current = 30 mA, thermal pad temperature = 25°C.
LUXEON Mid-Power Emitters are tested and binned by x,y coordinates.
Table 10.
LUXEON Mid-Power ANSI 1/6 Color Bin Coordinates for MXZ8-PW25-0000 Emitter
Bin Code
x
y
Bin Code
x
y
0.4944
0.5010
0.4917
0.4845
0.4322
0.4323
0.4140
0.4137
0.4774
0.4845
0.4746
0.4670
0.4134
0.4137
0.3952
0.3948
81
84
0.4845
0.4917
0.4823
0.4746
0.4137
0.4140
0.3957
0.3952
0.4813
0.4879
0.4774
0.4703
0.4319
0.4320
0.4134
0.4132
82
83
85
86
0.4879
0.4944
0.4845
0.4774
0.4320
0.4322
0.4137
0.4134
0.4703
0.4774
0.4670
0.4593
0.4132
0.4134
0.3948
0.3944
Notes for Table 10:
1. Tested and binned at 25°C, IF=30 mA. Tester tolerance: 0.01 in x and y coordinates.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
16
Color Bin Structure
MXZ8-PW27 Color Bin Structure
0.450
0.440
0.430
0.420
81
83
85
2700K
y
0.410
0.400
0.390
0.380
0.370
82
84
86
2580
2870K
0.430
0.435
0.440
0.445
0.450
0.455
0.460
0.465
0.470
0.475
0.480
0.485
0.490
x
Figure 13. ANSI 2700K 1/6th color bin structure, forwards current = 30 mA, thermal pad temperature = 25°C.
LUXEON Mid-Power Emitters are tested and binned by x,y coordinates.
Table 11.
LUXEON Mid-Power ANSI 1/6 Color Bin Coordinates for MXZ8-PW27-0000 Emitter
Bin Code
x
y
Bin Code
x
y
0.4625
0.4729
0.4813
0.4703
0.4113
0.4446
0.4546
0.4625
0.4520
0.3910
0.4095
0.4113
0.4299
0.4319
0.4130
81
84
0.3927
0.4520
0.4625
0.4703
0.4593
0.3927
0.4113
0.4132
0.3944
0.4468
0.4562
0.4646
0.4546
0.4077
0.4260
0.4280
0.4095
82
83
85
86
0.4546
0.4646
0.4729
0.4625
0.4095
0.4280
0.4299
0.4113
0.4373
0.4468
0.4546
0.4446
0.3893
0.4077
0.4095
0.3910
Notes for Table 11:
1. Tested and binned at 25°C, IF=30 mA. Tester tolerance: 0.01 in x and y coordinates.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
17
Color Bin Structure
MXZ8-PW30 Color Bin Structure
0.445
0.435
0.425
0.415
71
73
3000K
75
74
y
0.405
0.395
0.385
0.375
0.365
72
76
2870K
3200K
0.405
0.410
0.415
0.420
0.425
0.430
0.435
0.440
0.445
0.450
0.455
0.460
0.465
x
Figure 14. ANSI 3000K 1/6th color bin structure, forwards current = 30 mA, thermal pad temperature = 25°C.
LUXEON Mid-Power Emitters are tested and binned by x,y coordinates.
Table 12.
LUXEON Mid-Power ANSI 1/6 Color Bin Coordinates for MXZ8-PW30-0000 Emitter
Bin Code
x
y
Bin Code
x
y
0.4386
0.4474
0.4562
0.4468
0.4048
0.4228
0.4260
0.4077
0.4222
0.4305
0.4386
0.4298
0.3840
0.4019
0.4048
0.3867
71
74
0.4298
0.4386
0.4468
0.4373
0.3867
0.4048
0.4077
0.3893
0.4223
0.4299
0.4387
0.4305
0.3990
0.4165
0.4197
0.4019
72
73
75
76
0.4305
0.4387
0.4474
0.4386
0.4019
0.4197
0.4228
0.4048
0.4147
0.4223
0.4305
0.4222
0.3814
0.3990
0.4019
0.3840
Notes for Table 12:
1. Tested and binned at 25°C, IF=30 mA. Tester tolerance: 0.01 in x and y coordinates.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
18
Color Bin Structure
MXZ8-PW35 Color Bin Structure
0.430
0.420
0.410
61
63
0.400
y
65
0.390
3500K
62
64
0.380
3250K
66
0.370
3750K
0.360
0.380
0.385
0.390
0.395
0.400
0.405
0.410
0.415
0.420
0.425
0.430
0.435
0.440
x
Figure 15. ANSI 3500K 1/6th color bin structure, forwards current = 30 mA, thermal pad temperature = 25°C.
LUXEON Mid-Power Emitters are tested and binned by x,y coordinates.
Table 13.
LUXEON Mid-Power ANSI 1/6 Color Bin Coordinates for MXZ8-PW35-0000 Emitter
Bin Code
x
y
Bin Code
x
y
0.4130
0.4198
0.4299
0.4223
0.3944
0.4115
0.4165
0.3990
0.3975
0.4036
0.4130
0.4061
0.3731
0.3898
0.3944
0.3773
61
64
0.4061
0.4130
0.4223
0.4147
0.3773
0.3944
0.3990
0.3814
0.3943
0.3996
0.4097
0.4036
0.3853
0.4015
0.4065
0.3898
62
63
65
66
0.4036
0.4097
0.4198
0.4130
0.3898
0.4065
0.4115
0.3889
0.3943
0.4036
0.3975
0.3690
0.3853
0.3898
0.3731
0.3944
Notes for Table 13:
1. Tested and binned at 25°C, IF=30 mA. Tester tolerance: 0.01 in x and y coordinates.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
19
Color Bin Structure
MXZ8-PW40 Color Bin Structure
0.420
0.410
0.400
0.390
51
53
55
y
0.380
0.370
0.360
0.350
0.340
4000K
52
54
3750K
56
4250K
0.360
0.365
0.370
0.375
0.380
0.385
0.390
0.395
0.400
0.405
0.410
x
Figure 16. ANSI 4000K 1/6th color bin structure, forwards current = 30 mA, thermal pad temperature = 25°C.
LUXEON Mid-Power Emitters are tested and binned by x,y coordinates.
Table 14.
LUXEON Mid-Power ANSI 1/6 Color Bin Coordinates for MXZ8-PW40-0000 Emitter
Bin Code
x
y
Bin Code
x
y
0.3869
0.3916
0.4006
0.3952
0.3829
0.3987
0.4044
0.3880
0.3746
0.3786
0.3869
0.3822
0.3624
0.3777
0.3829
0.3670
51
54
0.3822
0.3869
0.3952
0.3898
0.3670
0.3829
0.3880
0.3716
0.3703
0.3736
0.3826
0.3786
0.3726
0.3874
0.3931
0.3777
52
53
55
56
0.3786
0.3826
0.3916
0.3869
0.3777
0.3931
0.3987
0.3829
0.3670
0.3703
0.3786
0.3746
0.3578
0.3726
0.3777
0.3624
Notes for Table 14:
1. Tested and binned at 25°C, IF=30 mA. Tester tolerance: 0.01 in x and y coordinates.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
20
Color Bin Structure
MXZ8-PW50 Color Bin Structure
0.390
0.380
0.370
31
33
5000K
34
0.360
35
36
y
32
0.350
4750K
0.340
0.330
0.320
5250K
0.325
0.330
0.335
0.340
0.345
0.350
0.355
0.360
0.365
x
Figure 17. ANSI 5000K 1/6th color bin structure, forwards current = 30 mA, thermal pad temperature = 25°C.
LUXEON Mid-Power Emitters are tested and binned by x,y coordinates.
Table 15.
LUXEON Mid-Power ANSI 1/6 Color Bin Coordinates for MXZ8-PW50-0000 Emitter
Bin Code
x
y
Bin Code
x
y
0.3479
0.3493
0.3551
0.3533
0.3580
0.3712
0.3760
0.3624
0.3416
0.3425
0.3479
0.3465
0.3408
0.3536
0.3580
0.3448
31
34
0.3465
0.3479
0.3533
0.3515
0.3448
0.3580
0.3624
0.3487
0.3371
0.3376
0.3434
0.3425
0.3493
0.3616
0.3664
0.3536
32
33
35
36
0.3425
0.3434
0.3493
0.3479
0.3536
0.3664
0.3712
0.3366
0.3371
0.3425
0.3416
0.3369
0.3493
0.3536
0.3408
0.3580
Notes for Table 15:
1. Tested and binned at 25°C, IF=30 mA. Tester tolerance: 0.01 in x and y coordinates.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
21
Color Bin Structure
MXZ8-PW57 Color Bin Structure
0.370
0.360
0.350
21
22
23
25
y
0.340
0.330
0.320
0.310
5700K
24
5250K
26
6000K
0.310
0.315
0.320
0.325
0.330
0.335
0.340
0.345
0.350
x
Figure 18. ANSI 5700K 1/6th color bin structure, forwards current = 30 mA, thermal pad temperature = 25°C.
LUXEON Mid-Power Emitters are tested and binned by x,y coordinates.
Table 16.
LUXEON Mid-Power ANSI 1/6 Color Bin Coordinates for MXZ8-PW57-0000 Emitter
Bin Code
x
y
Bin Code
x
y
0.3319
0.3320
0.3376
0.3371
0.3446
0.3565
0.3616
0.3493
0.3270
0.3267
0.3319
0.3318
0.3285
0.3399
0.3446
0.3327
21
24
0.3318
0.3319
0.3371
0.3366
0.3327
0.3446
0.3493
0.3369
0.3215
0.3207
0.3263
0.3267
0.3353
0.3462
0.3513
0.3399
22
23
25
26
0.3267
0.3263
0.3320
0.3319
0.3399
0.3513
0.3565
0.3446
0.3222
0.3215
0.3267
0.3270
0.3243
0.3353
0.3399
0.3285
Notes for Table 16:
1. Tested and binned at 25°C, IF=30 mA. Tester tolerance: 0.01 in x and y coordinates.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
22
Color Bin Structure
MXZ8-PW65 Color Bin Structure
0.365
0.355
0.345
11
0.335
13
y
15
6500K
12
0.325
6000K
14
16
0.315
0.305
0.295
7000K
0.290
0.295
0.300
0.305
0.310
0.315
0.320
0.325
0.330
0.335
x
Figure 19. ANSI 6500K 1/6th color bin structure, forwards current = 30 mA, thermal pad temperature = 25°C.
LUXEON Mid-Power Emitters are tested and binned by x,y coordinates.
Table 17.
LUXEON Mid-Power ANSI 1/6 Color Bin Coordinates for MXZ8-PW65-0000 Emitter
Bin Code
x
y
Bin Code
x
y
0.3158
0.3146
0.3206
0.3213
0.3317
0.3422
0.3481
0.3371
0.3119
0.3103
0.3158
0.3170
0.3162
0.3263
0.3317
0.3212
11
14
0.3170
0.3158
0.3213
0.3221
0.3212
0.3317
0.3371
0.3261
0.3048
0.3028
0.3087
0.3103
0.3209
0.3304
0.3363
0.3263
12
13
15
16
0.3103
0.3087
0.3146
0.3158
0.3263
0.3363
0.3422
0.3317
0.3068
0.3048
0.3103
0.3119
0.3113
0.3209
0.3263
0.3162
Notes for Table 17:
1. Tested and binned at 25°C, IF=30 mA. Tester tolerance: 0.01 in x and y coordinates.
LUXEON 4014 Datasheet DS205 20140223 ©2014 Philips Lumileds Lighting Company.
23
Who We Are
Philips Lumileds focuses on one goal: Creating the world’s highest performing LEDs. The company pioneered the use
of solid-state lighting in breakthrough products such as the first LED backlit TV, the first LED flash in camera phones,
and the first LED daytime running lights for cars. Today we offer the most comprehensive portfolio of high quality
LEDs and uncompromising service.
Philips Lumileds brings LED’s qualities of energy efficiency, digital control and long life to spotlights, downlights,
high bay and low bay lighting, indoor area lighting, architectural and specialty lighting as well as retrofit lamps. Our
products are engineered for optimal light quality and unprecedented efficacy at the lowest overall cost. By offering
LEDs in chip, packaged and module form, we deliver supply chain flexibility to the inventors of next generation
illumination.
Philips Lumileds understands that solid state lighting is not just about energy efficiency. It is about elegant design.
Reinventing form. Engineering new materials. Pioneering markets and simplifying the supply chain. It’s about a
shared vision. Learn more about our comprehensive portfolio of LEDs at www.philipslumileds.com.
Philips Lumileds Lighting Company shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although
Philips Lumileds Lighting Company has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and Philips Lumileds Lighting Company
neither warranties, nor guarantees the contents and correctness of the provided information and data. Philips Lumileds Lighting Company reserves the right to make changes without notice.
You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.
©2014 Philips Lumileds Lighting Company. All rights reserved.
LUXEON is a registered trademark of the Philips Lumileds Lighting
Company in the United States and other countries.
www.philipslumileds.com
www.philipslumileds.cn.com
LUXEON 4014 Datasheet DS205 20140223
厂商 型号 描述 页数 下载

LUMILEDS

 		MXZ7-PW50 [ A compact footprint delivering high efficacy and just the right amount of light ] 25 页

LUMILEDS

 		MXZ7-PW50-0000 [ LED LUXEON COOL WHITE 5000K 2SMD ] 25 页

LUMILEDS

 		MXZ7-PW57 [ A compact footprint delivering high efficacy and just the right amount of light ] 25 页

LUMILEDS

 		MXZ7-PW65 [ A compact footprint delivering high efficacy and just the right amount of light ] 25 页

LUMILEDS

 		MXZ8-PW22 [ A compact footprint delivering high efficacy and just the right amount of light ] 25 页

LUMILEDS

 		MXZ8-PW22-0000 [ LED LUXEON WARM WHITE 2200K 2SMD ] 25 页

LUMILEDS

 		MXZ8-PW25 [ A compact footprint delivering high efficacy and just the right amount of light ] 25 页

LUMILEDS

 		MXZ8-PW25-0000 [ LED LUXEON WARM WHITE 2500K 2SMD ] 25 页

LUMILEDS

 		MXZ8-PW27 [ A compact footprint delivering high efficacy and just the right amount of light ] 25 页

LUMILEDS

 		MXZ8-PW30 [ A compact footprint delivering high efficacy and just the right amount of light ] 25 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.201562s
