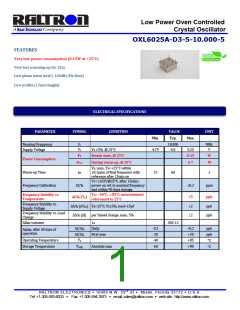

Low Power Oven Controlled
Crystal Oscillator
OXL6025A-D3-5-10.000-5
FEATURES
Very low power consumption (0.15W at +25°C)
Very fast warming-up (to 15s)
Low phase noise level (-165dBc/Hz floor)
Low profile (12mm height)
ELECTRICAL SPECIFICATIONS
PARAMETER
SYMBOL
CONDITION
VALUE
Typ.
UNIT
Min.
Max.
Nominal Frequency
Supply Voltage
fo
10.000
5.0
MHz
V
Vs
Vs ±5% @ 25°C
4.75
5.25
PS
Steady state, @ 25°C
0.15
W
W
Power Consumption
Warm-up Time
PS,w
During warm-up ,@ 25°C
0.7
Vs, nom., Ta=+25°C within
±0.1ppm of final frequency with
reference after 15min on
tW
15
60
s
Vc=1.65V/@25°C, after 15mins
power on ref. to nominal frequency
and within 90 days storage.
Frequency Calibration
Δf/f0
±0.2
ppm
Ta= -40°C…+85°C, measurement
referenced to 25°C
Frequency Stability vs.
Temperature
Δf/f0 (Ta)
Δf/f0 (ΔVCC
±5
±2
±2
ppb
ppb
ppb
Frequency Stability vs.
Supply Voltage
Frequency Stability vs. Load
Change
)
Ta=25°C, Vs±5%, load=15pF
Δf/f0 (Δl) per %load change, max.: 5%
Allan variance
1s
20E-12
Δf/Δtd
Δf/Δty
Ta
Daily
-0.2
-20
-40
-60
+0.2
+20
+85
+90
ppb
ppb
C
Aging, after 30 days of
operation
First year
Operating Temperature
Storage Temperature
T(stg)
Absolute max
C
