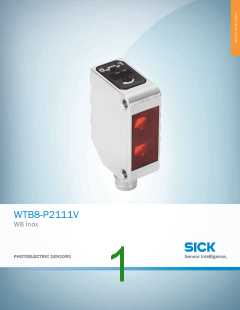

WTB8-P2111V | W8 Inox
PHOTOELECTRIC SENSORS
Ordering information
A
B
C
D
E
F
Type
WTB8-P2111V
Part no.
6041458
Other models and accessories www.sick.com/W8_Inox
Illustration may differ
Detailed technical data
Features
Photoelectric proximity sensor, Background suppression
Sensor/ detection principle
Dimensions (W x H x D)
Housing design (light emission)
Sensing range max.
H
I
11 mm x 33.3 mm x 21 mm
Rectangular
5 mm ... 150 mm 1)
5 mm ... 100 mm 1)
Visible red light
Sensing range
J
Type of light
Light source
LED 2)
K
L
Ø 8 mm (100 mm)
650 nm
Light spot size (distance)
Wave length
Potentiometer, 4 turns
Adjustment
1)
Object with 90 % reflectance (referred to standard white, DIN 5033).
2)
Average service life: 100,000 h at T = +25 °C.
U
M
N
O
P
Q
R
S
T
Mechanics/electronics
10 V DC ... 30 V DC 1)
± 10 % 2)
Supply voltage
Ripple
≤ 30 mA 3)
PNP
Power consumption
Switching output
1)
Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
2)
May not exceed or fall below U tolerances.
v
3)
4)
5)
6)
Without load.
Signal transit time with resistive load.
With light/dark ratio 1:1.
A = V connections reverse-polarity protected.
S
7)
8)
9)
B = inputs and output reverse-polarity protected.
D = outputs overcurrent and short-circuit protected.
At an air humidity of 35 ... 95%.
2
PHOTOELECTRIC SENSORS | SICK
Online data sheet | 2017-12-07 19:30:42
Subject to change without notice
