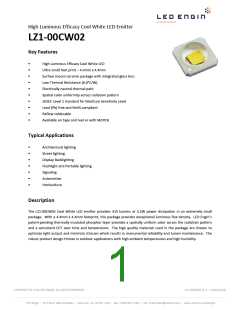

High Luminous Efficacy Cool White LED Emitter
LZ1-00CW02
Key Features
.
.
.
.
.
.
.
.
.
.
High Luminous Efficacy Cool White LED
Ultra-small foot print – 4.4mm x 4.4mm
Surface mount ceramic package with integrated glass lens
Low Thermal Resistance (6.0°C/W)
Electrically neutral thermal path
Spatial color uniformity across radiation pattern
JEDEC Level 1 standard for Moisture Sensitivity Level
Lead (Pb) free and RoHS compliant
Reflow solderable
Available on tape and reel or with MCPCB
Typical Applications
.
.
.
.
.
.
.
Architectural lighting
Street lighting
Display Backlighting
Flashlight and Portable lighting
Signaling
Automotive
Horticulture
Description
The LZ1-00CW02 Cool White LED emitter provides 315 lumens at 3.2W power dissipation in an extremely small
package. With a 4.4mm x 4.4mm footprint, this package provides exceptional luminous flux density. LED Engin’s
patent-pending thermally insulated phosphor layer provides a spatially uniform color across the radiation pattern
and a consistent CCT over time and temperature. The high quality materials used in the package are chosen to
optimize light output and minimize stresses which results in monumental reliability and lumen maintenance. The
robust product design thrives in outdoor applications with high ambient temperatures and high humidity.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.4 – 11/09/2018)
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Part number options
Base part number
Part number
Description
LZ1-00CW02-xxxx
LZ1-10CW02-xxxx
LZ1 emitter
LZ1 emitter on Standard Star MCPCB
Bin kit option codes
CW, Cool White (5000K – 6500K)
Min
flux
Bin
Kit number
Chromaticity bins
Description
suffix
0055
0065
Flux bin P and above; full distribution
flux; 5500K bin
Flux bin P and above; full distribution
flux; 6500K bin
2U, 2Y, 3U, 2A, 2D, 3A, 2B, 2C, 3B, 2V, 2X, 3V
1U, 1A, 1B, 1V, 1Y, 1D, 1C, 1X, 2U, 2A, 2B, 2V
P
P
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.4 – 11/09/2018)
2
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Cool White Chromaticity Groups
0.40
3X
0.38
0.36
0.34
0.32
0.30
0.28
3V
3C
2X
2C
3B
2V
Planckian Locus
3D
1X
1C
2B
3A
3U
1V
3Y
2D
2Y
2A
2U
1B
1D
1Y
1A
1U
0.28
0.30
0.32
0.34
0.36
0.38
CIEx
Standard Chromaticity Groups plotted on excerpt from the CIE 1931 (2°) x-y Chromaticity Diagram.
Coordinates are listed below in the table.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.4 – 11/09/2018)
3
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Cool White Bin Coordinates
Bin code CIEx
0.3068
CIEy
Bin code CIEx
0.3048
CIEy
0.3207
0.329
Bin code CIEx
0.3028
CIEy
Bin code CIEx
0.3005
CIEy
0.3113
0.3186
0.3059
0.2993
0.3113
0.3186
0.3261
0.312
0.3059
0.3186
0.3243
0.33
0.3304
0.3391
0.329
0.3207
0.3304
0.3391
0.3481
0.3373
0.329
0.3391
0.3462
0.3538
0.3417
0.335
0.3462
0.3538
0.3616
0.349
0.3417
0.3538
0.3616
0.3687
0.3554
0.349
0.3616
0.3687
0.376
0.3415
0.3509
0.3391
0.3304
0.3415
0.3509
0.3602
0.3481
0.3391
0.3509
0.3602
0.369
0.3538
0.3462
0.3602
0.369
0.3762
0.3616
0.3538
0.369
0.3762
0.384
0.3687
0.3616
0.3762
0.384
0.3907
0.376
0.3687
0.384
0.3144
0.3161
0.3093
0.3068
0.3144
0.3221
0.3231
0.3161
0.3144
0.3222
0.329
0.313
0.3115
0.313
0.3099
0.3115
0.3028
0.3005
0.3099
0.3196
0.3205
0.3115
0.3099
0.3196
0.329
1U
1Y
2U
2Y
3U
3Y
1A
1D
2A
2D
3A
3D
0.3144
0.3068
0.3048
0.313
0.3213
0.3221
0.3144
0.313
0.3215
0.329
0.329
0.3222
0.3215
0.329
0.3371
0.3366
0.329
0.3186
0.3113
0.3207
0.329
0.3373
0.3261
0.3186
0.329
0.335
0.3417
0.33
0.3243
0.335
0.3417
0.349
0.3369
0.33
0.3417
0.349
0.3554
0.3427
0.3369
0.349
0.3554
0.362
1B
1C
2B
2C
3B
3C
1V
1X
2V
2X
3V
3X
0.3048
0.3028
0.3115
0.3205
0.3213
0.313
0.3115
0.3207
0.329
0.329
0.318
0.312
0.329
0.329
0.3231
0.3222
0.329
0.3215
0.3207
0.329
0.3207
0.3196
0.329
0.3243
0.33
0.3369
0.3245
0.318
0.3366
0.3361
0.329
0.3376
0.3371
0.329
0.3381
0.3376
0.329
0.329
0.3366
0.344
0.33
0.329
0.329
0.329
0.3381
0.348
0.3369
0.3428
0.3299
0.3245
0.3369
0.3428
0.3487
0.3339
0.3299
0.3428
0.3371
0.3451
0.344
0.3366
0.3371
0.3451
0.3533
0.3515
0.344
0.3376
0.3463
0.3451
0.3371
0.3376
0.3463
0.3551
0.3533
0.3451
0.3463
0.3429
0.3361
0.3366
0.344
0.3463
0.3376
0.3381
0.348
0.3515
0.3495
0.3429
0.344
0.3571
0.3551
0.3463
0.348
0.3487
0.3427
0.3554
0.362
0.3554
0.3687
0.3451
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.4 – 11/09/2018)
4
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Luminous Flux Bins
Table 1:
Minimum
Maximum
Typical
Luminous Flux (ΦV)
@ IF = 1200mA[2]
(lm)
Bin
Code
Luminous Flux (ΦV)
@ IF = 1000mA[1,2]
(lm)
Luminous Flux (ΦV)
@ IF = 1000mA[1,2]
(lm)
P
Q
R
182
228
285
228
285
356
229
282
310
Notes for Table 1:
1.
Luminous flux performance is measured at 10ms pulse, TC = 25oC. LED Engin maintains a tolerance of ± 10% on flux measurements.
Forward Voltage Bins
Table 2:
Minimum
Maximum
Forward Voltage (VF)
@ IF = 1000mA[1]
(V)
Bin
Code
Forward Voltage (VF)
@ IF = 1000mA[1]
(V)
0
2.8
3.8
Notes for Table 2:
1.
Forward voltage is measured at 10ms pulse, TC = 25oC. LED Engin maintains a tolerance of ± 0.04V for forward voltage measurements.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.4 – 11/09/2018)
5
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Absolute Maximum Ratings
Table 3:
Parameter
Symbol
Value
Unit
mA
mA
mA
V
°C
°C
°C
DC Forward Current at TJ(MAX)=135°C[1]
DC Forward Current at TJ(MAX)=150°C[1]
Peak Pulsed Forward Current[2]
Reverse Voltage
IF
IF
IFP
VR
Tstg
TJ
1200
1000
2000
See Note 3
-40 ~ +150
150
Storage Temperature
Junction Temperature
Soldering Temperature[4]
Tsol
260
Notes for Table 3:
1.
2:
3.
4.
5.
Maximum DC forward current is determined by the overall thermal resistance and ambient temperature. Follow the curves in Figure 11 for current derating.
Pulse forward current conditions: Pulse Width ≤ 10msec and Duty cycle ≤ 10%.
LEDs are not designed to be reverse biased.
Solder conditions per JEDEC J-STD-020D. See Reflow Soldering Profile Figure 3.
LED Engin recommends taking reasonable precautions towards possible ESD damages and handling the LZ1-00CW02 in an electrostatic protected area (EPA).
An EPA may be adequately protected by ESD controls as outlined in ANSI/ESD S6.1.
Optical Characteristics @ TC = 25°C
Table 4:
Parameter
Symbol
Typical
Unit
Luminous Flux (@ IF = 1000mA/ 1200mA)
PPF[1] 400-700nm (@ IF = 1000mA/ 1200mA)
Luminous Efficacy (@ IF = 350mA)
Luminous Efficacy (@ IF = 1000mA)
Correlated Color Temperature
Color Rendering Index (CRI)
ΦV
315/ 360
4.8/ 5.5
113
98
5500
75
lm
umol/s
lm/W
lm/W
K
η
η
CCT
Ra
2Θ1/2
Θ0.9V
Viewing Angle[2]
95
115
Degrees
Degrees
Total Included Angle[3]
Notes for Table 4:
1.
2.
3.
PPF is Photosynthetic Photon Flux.
Viewing Angle is the off axis angle from emitter centerline where the luminous intensity is ½ of the peak value.
Total Included Angle is the total angle that includes 90% of the total luminous flux.
Electrical Characteristics @ TC = 25°C
Table 5:
Parameter
Symbol
Typical
3.20
3.25
Unit
V
V
Forward Voltage (@ IF = 1000mA)
Forward Voltage (@ IF = 1200mA)
VF
VF
Temperature Coefficient
of Forward Voltage
ΔVF/ΔTJ
RΘJ-C
-2.0
6.0
mV/°C
°C/W
Thermal Resistance
(Junction to Case)
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.4 – 11/09/2018)
6
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
IPC/JEDEC Moisture Sensitivity Level
Table 6 - IPC/JEDEC J-STD-20D.1 MSL Classification:
Soak Requirements
Floor Life
Conditions
Standard
Conditions
Accelerated
Level
1
Time
Time (hrs)
Time (hrs)
Conditions
≤ 30°C/
168
+5/-0
85°C/
85% RH
Unlimited
n/a
n/a
85% RH
Notes for Table 6:
1.
The standard soak time includes a default value of 24 hours for semiconductor manufacturer’s exposure time (MET) between bake and bag and
includes the maximum time allowed out of the bag at the distributor’s facility.
Average Lumen Maintenance Projections
Lumen maintenance generally describes the ability of a lamp to retain its output over time. The useful lifetime for
solid state lighting devices (Power LEDs) is also defined as Lumen Maintenance, with the percentage of the original
light output remaining at a defined time period.
Based on long-term WHTOL testing, LED Engin projects that the LZ Series will deliver, on average, above 70%
Lumen Maintenance at 50,000 hours of operation at a forward current of 1000 mA. This projection is based on
constant current operation with junction temperature maintained at or below 125°C.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.4 – 11/09/2018)
7
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Mechanical Dimensions (mm)
Pin Out (Type 2)[2]
Pad
Function
1
Anode
2
Cathode
Cathode
Anode
3
4
5[3]
Thermal
1
2
5
4
3
Figure 1: Package outline drawing
Notes for Figure 1:
1.
2.
3.
Unless otherwise noted, the tolerance = ± 0.20 mm.
This emitter pin-out is reversed to that of LZ1-00xx00 and LZ1-00Rx02.
Thermal contact, Pad 5, is electrically neutral.
Recommended Solder Pad Layout (mm)
Non-pedestal MCPCB Design
Pedestal MCPCB Design
Figure 2a: Recommended solder pad layout for anode, cathode, and thermal pad for non-pedestal and pedestal design.
Notes for Figure 2a:
1. Unless otherwise noted, the tolerance = ± 0.20 mm.
2. Pedestal MCPCB allows the emitter thermal slug to be soldered directly to the metal core of the MCPCB. Such MCPCB eliminate the high thermal resistance
dielectric layer that standard MCPCB technologies use in between the emitter thermal slug and the metal core of the MCPCB, thus lowering the overall system
thermal resistance.
3. LED Engin recommends x-ray sample monitoring for solder voids underneath the emitter solder pins, especially the thermal pad. The total area covered by
solder voids should be less than 20% of the total emitter thermal pad area. Excessive solder voids will increase the emitter to MCPCB thermal resistance and
may lead to higher failure rates due to thermal over stress.
4. This emitter is compatible with all LZ1 MCPCBs provided that the MCPCB design follows the recommended solder mask layout (Figure 2b).
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.4 – 11/09/2018)
8
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Recommended Solder Mask Layout (mm)
Non-pedestal MCPCB Design
Pedestal MCPCB Design
Figure 2b: Recommended solder mask opening for anode, cathode, and thermal pad for non-pedestal and pedestal design.
Note for Figure 2b:
1. Unless otherwise noted, the tolerance = ± 0.20 mm.
Recommended 8mil Stencil Apertures Layout (mm)
Figure 2c: Recommended 8mil stencil apertures layout for anode, cathode, and thermal pad.
Note for Figure 2c:
1.
Unless otherwise noted, the tolerance = ± 0.20 mm.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.4 – 11/09/2018)
9
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Reflow Soldering Profile
Figure 3: Reflow soldering profile for lead free soldering.
Typical Radiation Pattern
100%
90%
80%
70%
60%
50%
40%
30%
20%
10%
0%
-90 -80 -70 -60 -50 -40 -30 -20 -10
0
10 20 30 40 50 60 70 80 90
Angular Displacement (Degrees)
Figure 4: Typical representative spatial radiation pattern.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.4 – 11/09/2018)
10
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Typical Relative Spectral Power Distribution
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
400
450
500
550
600
650
700
750
800
Wavelength (nm)
Figure 5: Relative spectral power vs. wavelength @ TC = 25°C.
Typical Forward Current Characteristics
1,400
1,200
1,000
800
600
400
200
0
2.6
2.7
2.8
2.9
3.0
3.1
3.2
3.3
3.4
VF - Forward Voltage (V)
Figure 6: Typical forward current vs. forward voltage @ TC = 25°C.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.4 – 11/09/2018)
11
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Typical Relative Light Output over Current
120
100
80
60
40
20
0
0
200
400
600
800
1000
1200
1400
IF - Forward Current (mA)
Figure 7: Typical relative light output vs. forward current @ TC = 25°C.
Typical Relative Light Output over Temperature
120
100
80
60
40
20
0
0
20
40
60
80
100
120
TC - Case Temperature (oC)
Figure 8: Typical relative light output vs. case temperature.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.4 – 11/09/2018)
12
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Typical Chromaticity Coordinate Shift over Current
0.020
0.015
0.010
0.005
0.000
-0.005
-0.010
-0.015
-0.020
Δ Cx
Δ Cy
0
200
400
600
800
1000
1200
1400
IF - Forward Current (mA)
Figure 9: Typical chromaticity coordinate shift vs. forward current @ TC = 25°C.
Typical Chromaticity Coordinate Shift over Temperature
0.020
0.015
0.010
0.005
0.000
-0.005
-0.010
-0.015
-0.020
Δ Cx
Δ Cy
0
20
40
60
80
100
120
TC - Case Temperature (oC)
Figure 10: Typical chromaticity coordinate shift vs. case temperature
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.4 – 11/09/2018)
13
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Current De-rating
1400
1200
1000
800
600
RΘJA = 9°C/W
RΘJA = 12°C/W
RΘJA = 15°C/W
400
200
0
0
25
50
75
100
125
150
(TJ(MAX) = 135)
TA - Ambient Temperature (°C)
Figure 11: Maximum forward current vs. ambient temperature
Notes for Figure 11:
1.
2.
RΘJ-C [Junction to Case Thermal Resistance] for the LZ1-00CW02 is typically 6.0°C/W.
RΘJ-A [Junction to Ambient Thermal Resistance] = RΘJ-C + RΘC-A [Case to Ambient Thermal Resistance].
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.4 – 11/09/2018)
14
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Emitter Tape and Reel Specifications (mm)
Figure 12: Emitter carrier tape specifications (mm).
Ø 178mm (SMALL REEL)
Ø 330mm (LARGE REEL)
Figure 13: Emitter reel specifications (mm).
Notes:
1.
2.
3.
Small reel quantity: up to 500 emitters
Large reel quantity: 501-2500 emitters.
Single flux bin and single wavelength bin per reel.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.4 – 11/09/2018)
15
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
LZ1 MCPCB Family
Emitter + MCPCB
Thermal Resistance
(oC/W)
Diameter
Typical VF Typical IF
Part number Type of MCPCB
(mm)
(V)
(mA)
LZ1-1xxxxx 1-channel Star
19.9
6.0 + 1.5 = 7.5
3.2
1000
Mechanical Mounting of MCPCB
.
MCPCB bending should be avoided as it will cause mechanical stress on the emitter, which could lead to
substrate cracking and subsequently LED dies cracking.
.
To avoid MCPCB bending:
o
o
Special attention needs to be paid to the flatness of the heat sink surface and the torque on the screws.
Care must be taken when securing the board to the heat sink. This can be done by tightening three M3
screws (or #4-40) in steps and not all the way through at once. Using fewer than three screws will
increase the likelihood of board bending.
o
o
It is recommended to always use plastics washers in combinations with the three screws.
If non-taped holes are used with self-tapping screws, it is advised to back out the screws slightly after
tightening (with controlled torque) and then re-tighten the screws again.
Thermal interface material
.
.
.
.
To properly transfer heat from LED emitter to heat sink, a thermally conductive material is required when
mounting the MCPCB on to the heat sink.
There are several varieties of such material: thermal paste, thermal pads, phase change materials and thermal
epoxies. An example of such material is Electrolube EHTC.
It is critical to verify the material’s thermal resistance to be sufficient for the selected emitter and its operating
conditions.
It is recommended to verify thermal design by measuring case temperature (Tc) during design phase.
Wire soldering
.
To ease soldering wire to MCPCB process, it is advised to preheat the MCPCB on a hot plate of 125-150oC.
Subsequently, apply the solder and additional heat from the solder iron will initiate a good solder reflow. It is
recommended to use a solder iron of more than 60W.
.
It is advised to use lead-free, no-clean solder. For example: SN-96.5 AG-3.0 CU 0.5 #58/275 from Kester (pn:
24-7068-7601)
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.4 – 11/09/2018)
16
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
LZ1-1xxxxx
1 channel, Standard Star MCPCB (1x1) Dimensions (mm)
Notes:
Unless otherwise noted, the tolerance = ± 0.2 mm.
Slots in MCPCB are for M3 or #4-40 mounting screws.
LED Engin recommends plastic washers to electrically insulate screws from solder pads and electrical traces.
LED Engin recommends using thermal interface material when attaching the MCPCB to a heat sink.
The thermal resistance of the MCPCB is: RΘC-B 1.5°C/W
Components used
MCPCB:
HT04503
(Bergquist)
ESD/TVS diode: BZT52C5V1LP-7
(Diodes, Inc., for 1 LED die)
(Vishay Semiconductors, for 1 LED die)
VBUS05L1-DD1
Pad layout
MCPCB
Ch.
String/die
Function
Pad
1,2,3
4,5,6
Cathode -
Anode +
1
1/A
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.4 – 11/09/2018)
17
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
About LED Engin
LED Engin, an OSRAM business based in California’s Silicon Valley, develops, manufactures, and sells advanced LED
emitters, optics and light engines to create uncompromised lighting experiences for a wide range of
entertainment, architectural, general lighting and specialty applications. LuxiGenTM multi-die emitter and
secondary lens combinations reliably deliver industry-leading flux density, upwards of 5000 quality lumens to a
target, in a wide spectrum of colors including whites, tunable whites, multi-color and UV LEDs in a unique patented
compact ceramic package. Our LuxiTuneTM series of tunable white lighting modules leverage our LuxiGen emitters
and lenses to deliver quality, control, freedom and high density tunable white light solutions for a broad range of
new recessed and downlighting applications. The small size, yet remarkably powerful beam output and superior in-
source color mixing, allows for a previously unobtainable freedom of design wherever high-flux density, directional
light is required. LED Engin is committed to providing products that conserve natural resources and reduce
greenhouse emissions; and reserves the right to make changes to improve performance without notice.
For more information, please contact LEDE-Sales@osram.com or +1 408 922-7200.
.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00CW02 (1.4 – 11/09/2018)
18
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
厂商 型号 描述 页数 下载

ETC

 		LZ1-00B200-0000 [ LED EMITTER BLUE 465NM SMD ] 15 页

ETC

 		LZ1-00B200-0B34 [ LED EMITTER BLUE 465NM SMD ] 15 页

ETC

 		LZ1-00CW00-0000 [ LED LZ1 COOL WHITE 75CRI 4SMD ] 17 页

ETC

 		LZ1-00CW00-0050 [ LED LZ1 COOL WHITE 5000K 4SMD ] 17 页

ETC

 		LZ1-00CW00-0055 [ LED LZ1 COOL WHITE 5500K 4SMD ] 17 页

ETC

 		LZ1-00CW00-0056 [ LED LZ1 COOL WHITE 5600K 4SMD ] 17 页

ETC

 		LZ1-00NW00-0040 [ LED LZ1 NEUTRAL WHITE 4000K 4SMD ] 16 页

ETC

 		LZ1-00R200-0000 [ LED EMITTER RED 660NM SMD ] 16 页

ETC

 		LZ1-00R400-0000 [ EMITTER IR 850NM 1.2A SMD ] 17 页

ETC

 		LZ1-00UA00 [ High Efficacy VIOLET LED Emitter ] 19 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.199688s
