4
1
8
7
5
3
2
6
REVISIONS
DESCRIPTION
UPDATE INSULATOR BLADE TO .050" WITH STEP,
ADD MARKING 'USA'
REV.
ECO. NO
2695
DATE
BY
JH
E
F
10/25/2012
11/26/2013
4/16/2015
2868
UPDATE 'BOM' ON PRODUCTION DRAWING
UPDATE DWG FORMAT, UPDATE INSERT
INSTALLATION IN 'V' MOUNTING
KV
MG
F
H
3182
F
E
E
D
C
A
2X .125 3.18
THRU
+.005
-.015
+0.13
-0.38
.370
9.40
D
D
B
(.025 0.64 ) DEPTH
FROM TOP OF INSULATOR
TO TOP OF PIN
FITS EDGECARDS THAT
ACCEPT .062 1.57 PCB's
A
.540±.010 13.72±0.25
C
C
.250 6.35
.030 0.76
.156 3.96
MR = .175±.025 4.45±0.64
MN = .545 .025[13.84 0.64]
ACCOMMODATES
.062[1.57] PCB
A
.025 0.64
_ _M_ _M_ _D
SECTION A-A
B
B
NOTES:
1. INSULATOR MATERIAL: SEE PART NUMBER CODING
2. CONTACT MATERIAL: SEE PART NUMBER CODING
3. PLATING: SEE PART NUMBER CODING
CUSTOMER COPY
DRAWN DATE NAME
4. OPERATING TEMPERATURE:SEE PART NUMBER CODING
5. PROCESSING TEMP: SEE PART NUMBER CODING
6. UL FLAMMABILITY RATING: 94V-0
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES [MM]
03/14/08 MNH
THE INFORMATION HEREIN CONTAINS
TOLERANCES:
A
PROPIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TITLE
A
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY

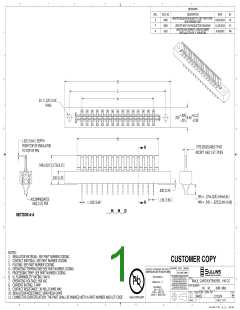

MALE, CARD EXTENDER, .156 CC
7. OPERATING VOLTAGE: 950 VAC
ANGULAR:
DECIMALS
1
Pb
OFFICER OF SULLINS ELECTRONICS. PART NUMBER_ _M_ _M_ _ _ (MR, MN)
8. CURRENT RATING: 3 AMP
AUTHORIZED IN WRITING BY AN
9. CONTACT RESISTANCE: 30 MILLI OHMS MAX
10. INSULATION RESISTANCE: 5000 MEGA OHMS
.XX= .02 [.5]
.XXX= .005 [.13]
.XXXX= .0005 [.013]
SIZE
CAGE CODE DWG. NO.
REV
C
54453
C11074
H
R
oHS COMPLIANT
11. CONNECTOR IDENTIFICATION: THE PART SHALL BE MARKED WITH A PART NUMBER AND LOT CODE
SCALE: 3:1
SHEET 1 OF 3
1
4
8
7
6
5
3
2
FILE NAME: C11074, _ _M_ _M_ _ _, (MR, MN)
