4
1
8
7
5
3
2
6
REVISIONS
DESCRIPTION
REV. ECO. NO
DATE
BY
JH
UPDATE INSULATOR BLADE TO .050" WITH STEP,
ADD MARKING 'USA'
F
H
J
2695
2868
3182
10/25/2012
UPDATE 'BOM' ON PRODUCTION DRAWING, MIN HOLE
ON PCB
F
11/26/2013
4/16/2015
KV
F
UPDATE DWG FORMAT, UPDATE INSERT INSTALLATION
IN 'V' MOUNTING
MG
UPDATE MIN PIN HOLE SIZE TO .043 FOR ALL
TERMINATIONS
K
3369
1/19/2016
MG
D
C
A
2X .125 3.18
E
E
+.005
-.015
+0.13
-0.38
.370
9.40
FITS EDGECARDS THAT
ACCEPT .062 1.57 PCB's
(.025 0.64 ) DEPTH
FROM TOP OF INSULATOR
TO TOP OF PIN
B
A
D
D
.540±.010 13.72±0.25
.030 0.76
.250 6.35
.200 5.08
ROW SPACING
A
.025 0.64
.156 3.96
C
C
MW = .125±.025 3.18±0.64
SECTION A-A
MS = .190 .025[4.83 0.64]
MM = .560 .025[14.22 0.64]
_ _M_ _M_ _D
C
A
2 X .125 3.18
B
B
.100 2.54
.200 5.08
.043 1.09 MIN
NOTES:
RECOMMENDED PCB LAYOUT
1. INSULATOR MATERIAL: SEE PART NUMBER CODING
2. CONTACT MATERIAL: SEE PART NUMBER CODING
3. PLATING: SEE PART NUMBER CODING
CUSTOMER COPY
DRAWN DATE NAME
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES [MM]
4. OPERATING TEMPERATURE: SEE PART NUMBER CODING
5. PROCESSING TEMP: SEE PART NUMBER CODING
6. UL FLAMMABILITY RATING: 94V-0
03/14/08 MNH
THE INFORMATION HEREIN CONTAINS
PROPIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TOLERANCES:
A
TITLE
A
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY

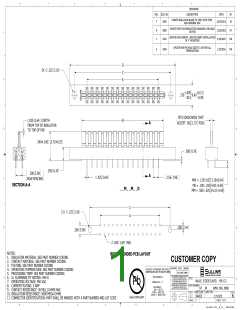

MALE, EDGECARD, .156 CC
ANGULAR:
DECIMALS
1
7. OPERATING VOLTAGE: 950 VAC
Pb
OFFICER OF SULLINS ELECTRONICS. PART NUM_BE_RM_ _M_ _ _ (MW, MS, MM)
8. CURRENT RATING: 3 AMP
AUTHORIZED IN WRITING BY AN
.XX= .02 [.5]
.XXX= .005 [.13]
.XXXX= .0005 [.013]
9. CONTACT RESISTANCE: 30 MILLI OHMS MAX
10. INSULATION RESISTANCE: 5000 MEGA OHMS
SIZE
CAGE CODE DWG. NO.
REV
C
54453
C11075
K
R
oHS COMPLIANT
11. CONNECTOR IDENTIFICATION: PART SHALL BE MARKED WITH A PART NUMBER AND LOT CODE
SCALE: 3:1
SHEET 1 OF 3
1
4
8
7
6
5
3
2
FILE NAME: C11075, _ _M_ _M_ _ _, (MW, MS, MM)
