MZ6310C

型号:

MZ6310C

描述:

双平衡混频器[ DOUBLE-BALANCED MIXER ]

品牌:

TE[ TE CONNECTIVITY ]

页数:

2 页

PDF大小:

114 K

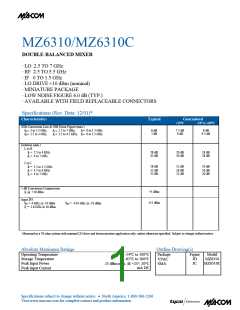

MZ6310/MZ6310C
DOUBLE-BALANCED MIXER
· LO 2.5 TO 7 GHz
· RF 2.5 TO 5.5 GHz
· IF 0 TO 1.5 GHz
· LO DRIVE +10 dBm (nominal)
· MINIATURE PACKAGE
· LOW NOISE FIGURE 6.0 dB (TYP.)
· AVAILABLE WITH FIELD REPLACEABLE CONNECTORS
Specifications (Rev. Date: 12/01)*
Characteristics
Typical
Guaranteed
+25°C
-54° to +85°C
SSB Conversion Loss & SSB Noise Figure (max.)
6 dB
7 dB
7.5 dB
9 dB
8 dB
9.5 dB
fR = 3 to 5.5 GHz,
fR = 2.5 to 3 GHz,
fL = 2.5 to 7 GHz,
fI = 0 to 1.5 GHz
fL = 2.5 to 4.5 GHz, fI = 0 to 1.5 GHz
Isolation (min.)
L to R
fL =
fL =
28 dB
45 dB
20 dB
30 dB
18 dB
28 dB
2.5 to 4 GHz
4 to 7 GHz
L to I
fL =
fL =
18 dB
22 dB
35 dB
12 dB
18 dB
22 dB
10 dB
16 dB
20 dB
2.5 to 3.5 GHz
3.5 to 4 GHz
4 to 7 GHz
fL =
1 dB Conversion Compression
+3 dBm
+10 dBm
fL @
Input IP3
fR1
fL =
+15 dBm
=
fR2
=
4 GHz @ -10 dBm
2.8 GHz @ 10 dBm
4.01 GHz @ -10 dBm
Measured in a 50-ohm system with nominal LO drive and downconverter application only, unless otherwise specified. Subject to change without notice.
Absolute Maximum Ratings
Operating Temperature
Storage Temperature
Peak Input Power
Outline Drawing(s)
Package
VPAC
SMA
Figure
Model
MZ6310
MZ6310C
-54°C to 100°C
-65°C to 100°C
23 dBm max. @ +25°, 20°C
mA DC
JD
JC
Peak Input Current
Specifications subject to change without notice. North America: 1-800-366-2266
Visit www.macom.com for complete contact and product information.
MZ6310/MZ6310C
Typical Performance at 25°C
