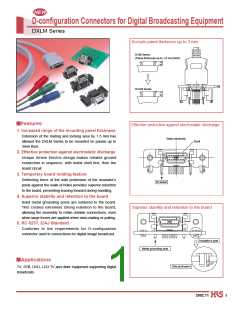

D-configuration Connectors for Digital Broadcasting Equipment
DXLM Series
Accepts panel thickness up to 3 mm
DXM Series
(Panel thickness up to 1.6 mm thick)
DXLM Series
Features
Effective protection against electrostatic discharge
1. Increased range of the mounting panel thickness
Extension of the mating and locking area by 1.5 mm has
allowed the DXLM Series to be mounted on panels up to
3mm thick.
Static electricity
Shell
2. Effective protection against electrostatic discharge
Unique Hirose Electric design makes reliable ground
connection in sequence, with metal shell first, then the
board circuit.
3. Temporary board holding feature
Deflecting force of the side protrusion of the insulator’s
posts against the walls of holes provides superior retention
to the board, preventing leaning forward during handling.
To board
4. Superior stability and retention to the board
Solid metal grounding posts are soldered to the board.
This creates extremely strong retention to the board,
allowing the assembly to retain reliable connections, even
when large forces are applied when miss-mating or pulling.
5. RC-5237, EIAJ Standard
Superior stability and retention to the board
Conforms to the requirements for D-configuration
connector used in connections for digital image broadcast.
Insulator's post
Metal grounding post
Applications
Side protrusion
TV, STB, DVD, LCD TV and other equipment supporting digital
broadcasts
2002.11
1
Product Specifications
Current rating
Rating
1 A DC
Operating temperature range
-25oC to +70oC
Voltage rating
250 V AC
Item
Specification
Conditions
1. Contact resistance
2. Insulation resistance
3. Withstanding voltage
80 m ohms max.
500 M ohms min.
No flashover or insulation breakdown
Measured at 100mA DC
Measured at 500 V DC
500 V AC applied for one minute
4. Mating/un-mating forces 30N max. (mating)
4.2N min. (un-mating)
With corresponding connector assembly.
5. Durability
Contact resistance: 25 m ohms max. variation from initial value
No damage, cracks, or parts dislocation
500
(mating/un-mating)
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
2 hours / 3 axis
No electrical discontinuity of 1 ms or more
No damage, cracks, or parts dislocation
6. Vibration
7. Shock
2
Acceleration of 490 m/s , 6 ms duration, sine half-wave wave form, 3 cycles in each of the 3 axis
96 hours at 40oC, humidity of 90% to 95%
8. Humidity
Contact resistance: 25 m ohms max. variation from initial value
Insulation resistance: 100 M ohms min.
(Steady state)
o
o
o
o
o
o
>
>
>
Temperature: -25 C -- +5 C to +35 C -- +70 C -- +5 C to +35 C
Contact resistance: 25 m ohms max. variation from initial value
Insulation resistance: 100 M ohms min.
9. Temperature cycle
10. Salt Spray
>
> >
-- 30 -- 2 to 3 (Minutes)
Duration: 30 --
2 to 3
Exposed to 5% salt water solution for 48 hours
Contact resistance: 25 m ohms max. variation from initial value
Material
Part
Contact: Receptacle
Contact: Plug
Insulator
Material
Finish
Selective gold plating
Remarks
Brass
.
.
UL94V-0
.
Phosphor bronze
PBT
Selective gold plating
Color: Black
.
Shell
Stainless steel
PVC
Cover
Color: Gray
Color: Gray
.
.
Cable outer insulation
PVC
Ordering Information
Receptacles
DX 10 LM 1 . 14 S E
4
5
1
2
1
6
3
Plugs
DX 40 LM . 14 PP . 150 CV
1
2
1
4
7
8
9
Series name: DXLM
Board mounting type E: Temporary insulators post
1
2
6
Termination type 10: PCB Right-angle through hole type
20: PCB Straight through hole type
40: Soldering type
Cable Harness type
7
PP: D-configuration connector at both ends
P: D-configuration connector on one end/single audio connectors on other end
Form type
Blank: Standard item
3
1: Miniature type
Overall length 150: 150 cm
300: 300 cm
8
9
2: Miniature panel single screw panel attachment
Number of Positions: 14
4
5
Cover type CV: Standard
Configuration of mating side S: Receptalce
2
Receptacles
PCB Right-angle through hole type
17.14
19.54
36
29
7.62
1.27
No.1
No.7
No.8
No.14
3
15.94
6
5
9
Part Number
CL No.
230-5256-0
DX10LM-14SE
Miniature PCB Right-angle through hole type
17.14
19.54
22.54
7.62
1.27
No.1
No.7
No.14
3.985
No.8
15.94
4.785
6.69
Part Number
CL No.
DX10LM1-14SE
230-5258-5
8.595
3
Miniature PCB Right-angle through hole type (Single panel screw)
17.14
19.54
22.54
12.26
7.62
No.1
No.7
9.7
1.27
3.985
No.14
15.94
No.8
4.785
6.69
8.595
10.5
Part Number
CL No.
DX10LM2-14SE
230-5262-2
PCB Straight through hole type (Double panel screws)
38
29
7.62
1.27
No.7
No.1
No.8
No.14
19.54
17.14
Part Number
CL No.
DX20LM-14SE
230-5257-2
15.94
34.4
4
Plug Connectors (Cable assemblies)
Wiring Table
D-configuration connector to D-configuration connector
Connector A
Contact No.
Connector B
Contact No.
Pin assignment
1
2
1
2
Y
Y-GND
3
3
Pb
4
4
Pb-GND
Pr
5
5
6
6
Pr-GND
Auxiliary line 1
Line 1
7
7
8
8
9
9
Line 2
10
11
12
13
14
10
11
12
13
14
Auxiliary line 2
Line 3
Shorted
Switch GND
Auxiliary line 3
Switch
Unit: cm
Part Number
CL No.
L
DX40LM-14PP-150CV
DX40LM-14PP-300CV
230-5260-7
230-5268-9
150
300
Contact
No. 7
Contact
No. 14
Contact
No. 7
Contact
No. 14
Connector B
Connector A
Contact
No. 1
Contact
No. 8
Contact
No. 1
Contact
No. 8
42
42
L
Wiring Table
Connector A Connector B: Green Connector C: Blue Connector D: Red
Contact No. Contact No. Contact No. Contact No.
Pin assignment
1
2
1
.
.
3
.
.
.
.
5
Y
Y-GND
Pb
2
3
.
.
.
.
.
.
.
.
.
.
.
.
4
4
Pb-GND
Pr
5
.
.
.
.
.
.
.
.
.
.
6
6
Pr-GND
.
7
.
.
.
.
.
.
.
.
8
.
9
.
10
11
12
13
14
.
.
Shorted
.
Unit: cm
.
Part Number
CL No.
L
.
DX40LM-14P-150CV
DX40LM-14P-300CV
230-5261-0
230-5269-1
150
300
Connector B: Green
Connector A
Contact
No. 7
Contact
No. 14
Contact No. 2
Connector C: Blue
Contact No. 1
Contact No. 3
Contact No. 5
Contact No. 4
Contact No. 6
Contact
No. 1
Contact
No. 8
Connector D: Red
5
SBoard Mounting Pattern
29
15.94
15.94
14.24
7.62
7.62
No.7
1.27
No.6
No.7
No.1
No.2
No.1
No.2
No.6
1.27
No.8
No.14
No.14
No.13
2.15
No.9
Board edge
Board edge
No.8
No.9
No.13
23
DX10LM1.14SE
DX10LM2.14SE
DX10LM.14SE
34.4
15.94
7.62
No.7
1.27
No.6
No.1
No.2
No.8
No.9
No.14
No.13
DX20LM.14SE
SPanel Cutout (Panel thickness 3 mm Max.)
21.5
29
21.5
21.5
DX10LM.14SE
DX20LM.14SE
DX10LM1.14SE
DX10LM2.14SE
Note: Use screw M3 x 10 ( class 1 or 2).
Panel screw fastening torque:
For assemblies DX10LM-14SE, DX20LM-14SE and DX10LM1-14SE: 0.5 to 0.7 Nm.
For assembly DX10LM2-14SE: 0.6 to 0.8 Nm.
6
MEMO :
7
