FZT751-7

型号:

FZT751-7

品牌:

DIODES[ DIODES INCORPORATED ]

页数:

7 页

PDF大小:

255 K

A Product Line of
Diodes Incorporated
Green
FZT751

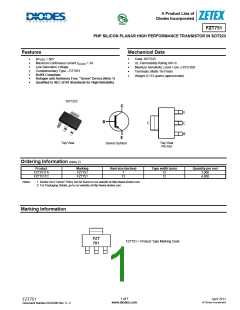

PNP SILICON PLANAR HIGH PERFORMANCE TRANSISTOR IN SOT223
Features
Mechanical Data
Case: SOT223
BVCEO > 60V
Maximum continuous current IC(cont) = 3A
Low Saturation Voltage
Complementary Type – FZT651
RoHS Compliant
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish
Weight: 0.112 grams (approximate)
Halogen and Antimony Free. "Green" Device (Note 1)
Qualified to AEC-Q101 Standards for High Reliability
SOT223
C
E
B
C
C
B
E
Top View
Top View
Pin-Out
Device Symbol
Ordering Information (Note 2)
Product
FZT751TA
FZT751TC
Marking
FZT751
FZT751
Reel size (inches)
Tape width (mm)
Quantity per reel
1,000
7
13
12
12
4,000
Notes:
1. Diodes Inc’s “Green” Policy can be found on our website at http://www.diodes.com
2. For Packaging Details, go to our website at http://www.diodes.com.
Marking Information
FZT
751
FZT751 = Product Type Marking Code
1 of 7
www.diodes.com
April 2011
© Diodes Incorporated
FZT751
Document Number DS32208 Rev. 5 - 2
A Product Line of
Diodes Incorporated
FZT751
Maximum Ratings @TA = 25°C unless otherwise specified
Characteristic
Collector-Base Voltage
Symbol
VCBO
VCEO
VEBO
IC
Value
-80
-60
-5
Unit
V
Collector-Emitter Voltage
Emitter-Base Voltage
V
V
Continuous Collector Current
Peak Pulse Current
-3
A
-6
A
ICM
Thermal Characteristics @TA = 25°C unless otherwise specified
Characteristic
Symbol
Value
2
3
62.5
41.7
12.93
-55 to +150
Unit
W
W
°C/W
°C/W
°C/W
°C
(Note 3)
(Note 4)
(Note 3)
(Note 4)
(Note 5)
Power Dissipation
PD
Thermal Resistance, Junction to Ambient
RθJA
Thermal Resistance, Junction to Leads
RθJL
Operating and Storage Temperature Range
TJ, TSTG
Notes:
3. For devices mounted on 25mm x 25mm single sided 2oz weight copper, in still air conditions.
4. For devices mounted on 50mm x 50mm single sided 2oz weight copper, in still air conditions.
5. Thermal resistance from junction to solder-point (at the end of the collector lead)
2 of 7
www.diodes.com
April 2011
© Diodes Incorporated
FZT751
Document Number DS32208 Rev. 5 - 2
A Product Line of
Diodes Incorporated
FZT751
Thermal Characteristics
VCE(sat)
Limit
10
1
VCE(sat)
Limit
10
1
DC
DC
1s
100ms
1s
100ms
10ms
10ms
100m
10m
100m
10m
Tamb=25°C
Tamb=25°C
1ms
1ms
25mm x 25mm
2oz FR4
50mm x 50mm
2oz FR4
100µs
100µs
1
10
1
10
VCE Collector-Emitter Voltage (V)
VCE Collector-Emitter Voltage (V)
Safe Operating Area
Safe Operating Area
70
60
50
40
30
20
10
0
50
40
30
20
10
0
Tamb=25°C
Tamb=25°C
25mm x 25mm
2oz FR4
50mm x 50mm
2oz FR4
D=0.5
D=0.5
Single Pulse
D=0.2
Single Pulse
D=0.2
D=0.05
D=0.05
D=0.1
D=0.1
100µ 1m 10m 100m
1
10
100
1k
100µ 1m 10m 100m
1
10
100
1k
Pulse Width (s)
Pulse Width (s)
Transient Thermal Impedance
Transient Thermal Impedance
3.0
Single Pulse
Tamb=25°C
50mm x 50mm
2oz FR4
100
2.5
2.0
1.5
1.0
0.5
0.0
25mm x 25mm
2oz FR4
50mm x 50mm
2oz FR4
10
25mm x 25mm
2oz FR4
1
100µ 1m 10m 100m
1
10
100
1k
0
20 40 60 80 100 120 140 160
Pulse Width (s)
Temperature (°C)
Pulse Power Dissipation
Derating Curve
3 of 7
www.diodes.com
April 2011
© Diodes Incorporated
FZT751
Document Number DS32208 Rev. 5 - 2
A Product Line of
Diodes Incorporated
FZT751
Electrical Characteristics @TA = 25°C unless otherwise specified
Characteristic
Symbol
BVCBO
BVCEO
BVEBO
Min
-80
-60
-5
70
100
80
40
Typ
Max
Unit
V
Test Condition
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage (Note 6)
Emitter-Base Breakdown Voltage
IC = -100µA
IC = -10mA
IE = -100µA
V
V
-0.1
-10
-0.1
-0.3
-0.6
-1.25
-1.0
VCB = -60V
Collector Cut-off Current
µA
µA
V
ICBO
IEBO
VCB = -60V, Tamb = 100°C
VEB = -4V
Emitter Cut-off Current
-0.15
-0.45
-0.9
-0.8
200
200
170
150
I
I
C = -1A, IB = -100mA
C = -3A, IB = -300mA
Collector-Emitter Saturation Voltage (Note 6)
VCE(sat)
Base-Emitter Saturation Voltage (Note 6)
Base-Emitter Turn-On Voltage (Note 6)
V
V
VCE(sat)
VBE(on)
IC = -1A, IB = -100mA
IC = -1A, VCE = -2V
I
C = -50mA, VCE = -2V
300
IC = -500mA, VCE = -2V
IC = -1A, VCE = -2V
IC = -2A, VCE = -2V
DC Current Gain (Note 6)
hFE
VCE = -5V, IC = -100mA
f = 100MHz
Current Gain-Bandwidth Product (Note 6)
100
140
MHz
fT
Turn-On Time
40
450
ns
ns
pF
ton
toff
30
V
CC = -10V, IC = -500mA
Turn-Off Time
IB1 = IB2 = -50mA
Output Capacitance (Note 6)
Cobo
VCB = -10V, f = 1MHz
Notes:
6. Measured under pulsed conditions. Pulse width 300 µs. Duty cycle 2%
4 of 7
www.diodes.com
April 2011
© Diodes Incorporated
FZT751
Document Number DS32208 Rev. 5 - 2
A Product Line of
Diodes Incorporated
FZT751
Typical Characteristics
5 of 7
www.diodes.com
April 2011
© Diodes Incorporated
FZT751
Document Number DS32208 Rev. 5 - 2
A Product Line of
Diodes Incorporated
FZT751
Package Outline Dimensions
SOT223
Dim Min Max Typ
1.55 1.65 1.60
A1 0.010 0.15 0.05
A
b1
b2
C
D
E
E1
e
e1
L
2.90 3.10 3.00
0.60 0.80 0.70
0.20 0.30 0.25
6.45 6.55 6.50
3.45 3.55 3.50
6.90 7.10 7.00
4.60
2.30
0.85 1.05 0.95
0.84 0.94 0.89
A
Q
All Dimensions in mm
A1
Suggested Pad Layout
X1
Y1
Dimensions Value (in mm)
X1
X2
Y1
Y2
C1
C2
3.3
1.2
1.6
1.6
6.4
2.3
C1
Y2
C2
X2
6 of 7
www.diodes.com
April 2011
© Diodes Incorporated
FZT751
Document Number DS32208 Rev. 5 - 2
A Product Line of
Diodes Incorporated
FZT751
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other
changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising
out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under
its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such
applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are
represented on Diodes Incorporated website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales
channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall
indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising
out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and
markings noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the
express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in
the labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause
the failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems,
and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their
products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices-
or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes
Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life
support devices or systems.
Copyright © 2011, Diodes Incorporated
www.diodes.com
7 of 7
