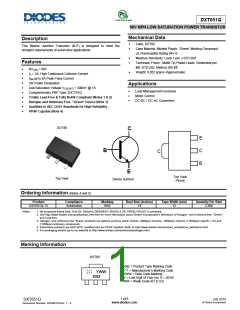

DXT651Q
60V NPN LOW SATURATION POWER TRANSISTOR
Mechanical Data
Description
Case: SOT89
This Bipolar Junction Transistor (BJT) is designed to meet the
stringent requirements of automotive applications.
Case Material: Molded Plastic. “Green” Molding Compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Features
BVCEO > 60V
Weight: 0.052 grams (Approximate)
IC = 3A High Continuous Collector Current
ICM up to 6A Peak Pulse Current
2W Power Dissipation
Applications
Low Saturation Voltage VCE(SAT) < 300mV @ 1A
Complementary PNP Type: DXT751Q
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Load Management Functions
Motor Control
DC-DC / DC-AC Converters
SOT89
C
E
C
B
B
C
E
Top View
Pinout
Top View
Device Symbol
Ordering Information (Notes 4 and 5)
Product
DXT651Q-13
Compliance
Automotive
Marking
KN2
Reel Size (inches)
Tape Width (mm)
Quantity Per Reel
13
12
2,500
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/product_compliance_definitions.html.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
SOT89
KN2 = Product Type Marking Code
= Manufacturer’s Marking Code
YWW = Date Code Marking
Y = Last Digit of Year (ex: 6 = 2016)
WW = Week Code (01 to 53)
YWW
KN2
1 of 6
www.diodes.com
July 2016
© Diodes Incorporated
DXT651Q
Document Number: DS38910 Rev: 1 - 2
DXT651Q
Absolute Maximum Ratings (@TA = +25°C, unless otherwise specified.)
Characteristic
Symbol
VCBO
VCEO
VEBO
IC
Value
80
60
5
Unit
V
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
V
V
3
A
Peak Pulse Collector Current
Peak Base Current
6
A
ICM
500
mA
IB
Thermal Characteristics (@TA = +25°C, unless otherwise specified.)
Characteristic
Symbol
Value
Unit
(Note 6)
(Note 7)
(Note 6)
(Note 7)
(Note 8)
1
2
125
62.5
6.0
Power Dissipation
W
PD
Thermal Resistance, Junction to Ambient Air
C/W
RθJA
Thermal Resistance, Junction to Leads
RθJL
C/W
C
Operating and Storage Temperature Range
-55 to +150
TJ, TSTG
Notes:
6. For a device surface mounted on 15mm x 15mm x 0.6mm FR-4 PCB with high coverage of single sided 1 oz copper, in still air conditions; the device is
measured when operating in steady state condition.
7. Same as note 6, except the device is mounted on 40mm x 40mm x 1.6mm FR-4 PCB.
8. Thermal resistance from junction to solder-point (on the exposed collector pad).
Thermal Characteristics and Derating Information
120
100
80
60
40
20
0
1.0
0.8
0.6
0.4
0.2
0.0
D=0.5
D=0.2
Single Pulse
D=0.05
D=0.1
0
25
50
75
100 125 150
11m 10m 100m
100
1
10
100
1k
Temperature (oC)
Pulse Width (s)
Transient Thermal Impedance
Derating Curve
100
10
1
Single Pulse. TA =25oC
1m 10m 100m
100
1
10
100
1k
Pulse Width (s)
Pulse Power Dissipation
2 of 6
www.diodes.com
July 2016
© Diodes Incorporated
DXT651Q
Document Number: DS38910 Rev: 1 - 2
DXT651Q
Electrical Characteristics (@TA = +25°C, unless otherwise specified.)
Characteristic
OFF CHARACTERISTICS
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage (Note 9)
Emitter-Base Breakdown Voltage
Symbol
Min
Typ
Max
Unit
Test Conditions
IC = 100µA
80
60
5
V
V
V
BVCBO
BVCEO
BVEBO




0.1
10
IC = 10mA
IE = 100A
VCB = 60V
VCB = 60V, TA = +100°C
VEB = 4V
Collector-Base Cutoff Current
µA
µA


ICBO
IEBO
Emitter-Base Cutoff Current
0.1
ON CHARACTERISTICS (Note 9)
0.08
0.23
0.3
0.6
V
V
IC = 1A, IB = 100mA
IC = 3A, IB = 300mA
IC = 1A, IB = 100mA
VCE = 2V, IC = 1A
Collector-Emitter Saturation Voltage
VCE(SAT)
Base-Emitter Saturation Voltage
Base-Emitter Turn-On Voltage
0.85
0.8
1.25
1
V
V
VBE(SAT)
VBE(ON)
VCE = 2V, IC = 50mA
VCE = 2V, IC = 500mA
VCE = 2V, IC = 1A
300

70
100
80
200
200
185
120
DC Current Gain
hFE
40
VCE = 2V, IC = 2A
SMALL-SIGNAL CHARACTERISTICS
Transition Frequency
140
200
MHz
pF
30
fT
VCE = 5V, IC = 100mA, f = 100MHz
VCB = 10V, f = 1MHz
Output Capacitance
Cobo
tON
tOFF



35
230

ns
ns
VCC = 10V. IC = 500mA,
IB1 = -IB2 = 50mA
Switching Times
Note:
9. Measured under pulsed conditions. Pulse width ≤ 300μs. Duty cycle ≤ 2%.
2.5
2.0
500
450
V
= 2V
CE
I
I
= 10mA
= 8mA
B
B
400
350
300
250
200
150
100
I
T
= 150°C
= 85°C
A
1.5
1.0
T
I
I
= 6mA
= 4mA
A
A
B
B
T
= 25°C
,
T
= -55°C
0.5
0.0
A
I
= 2mA
B
50
0
0
1
2
3
4
5
0.001
0.01
IC, COLLECTOR CURRENT (A)
Figure 2 Typical DC Current Gain vs. Collector Current
0.1
1
10
VCE, COLLECTOR EMITTER VOLTAGE (V)
Figure 1 Typical Collector Current vs. Collector-Emitter Voltage
3 of 6
www.diodes.com
July 2016
© Diodes Incorporated
DXT651Q
Document Number: DS38910 Rev: 1 - 2
DXT651Q
0.4
0.3
1.2
1.0
V
= 2V
CE
I /I = 20
C
B
0.8
0.6
0.4
T
= -55°C
= 25°C
A
0.2
0.1
T
A
T = 150°C
A
T
= 85°C
A
T = 85°C
A
T
= 25°C
A
T
= 150°C
0.2
A
T
= -55°C
A
0.0
0
0.0001
0.0001
0.001
0.01
0.1
1
10
0.001
0.01
0.1
1
10
IC, COLLECTOR CURRENT (A)
IC, COLLECTOR CURRENT (A)
Figure 3 Typical Collector-Emitter Saturation Voltage
vs. Collector Current
Figure 4 Typical Base-Emitter Turn-On Voltage
vs. Collector Current
100
80
)
1.2
1.0
0.8
0.6
I /I = 20
C
B
f = 1MHz
60
40
T
= -55°C
A
T
= 25°C
= 85°C
A
0.4
T
A
20
0
0.2
0
T
= 150°C
A
0
5
10
VR, REVERSE VOLTAGE (V)
Figure 6 Typical Output Capacitance Characteristics
15
20
25
30
0.0001
0.001
0.01
0.1
1
10
V
IC, COLLECTOR CURRENT (A)
Figure 5 Typical Base-Emitter Saturation Voltage
vs. Collector Current
175
150
125
100
75
50
25
0
V
= 2V
CE
f = 100MHz
0
20
40
60
80
100
IC, EMITTER CURRENT (mA)
Figure 7 Typical Gain-Bandwidth Product vs. Emitter Current
4 of 6
www.diodes.com
July 2016
© Diodes Incorporated
DXT651Q
Document Number: DS38910 Rev: 1 - 2
DXT651Q
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
D1
c
SOT89
Dim Min Max
Typ
1.50
0.56
0.48
0.38
4.50
H
A
B
1.401.60
0.50 0.62
E
B1 0.42 0.54
c
D
0.35 0.43
4.40 4.60
B1
L
D1 1.62 1.83 1.733
B
D2 1.61 1.81
2.40 2.60
E2 2.05 2.35
1.71
2.50
2.20
1.50
4.10
2.78
1.05
E
e
D2
e
-
-
H
3.95 4.25
H1 2.63 2.93
0.90 1.20
8
°
(
4X)
L
L1 0.327 0.527 0.427
0.20 0.40 0.30
All Dimensions in mm
H1
E2
z
A
L1
D
z
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
X2
Value
(in mm)
1.500
0.244
0.580
0.760
1.933
1.730
3.030
1.500
0.770
4.530
Dimensions
C
G
X
X1
X2
Y
Y1
Y2
Y3
Y4
Y3
Y1
Y4
X
G
Y
Y2
C
X1
5 of 6
www.diodes.com
July 2016
© Diodes Incorporated
DXT651Q
Document Number: DS38910 Rev: 1 - 2
DXT651Q
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2016, Diodes Incorporated
www.diodes.com
6 of 6
www.diodes.com
July 2016
© Diodes Incorporated
DXT651Q
Document Number: DS38910 Rev: 1 - 2
厂商 型号 描述 页数 下载

RADIOMETRIX

DXT-433-TX2A [ DX series remote control boards ] 7 页

RADIOMETRIX

DXT-434.650-NTX2B [ DX series remote control boards ] 7 页

DIODES

DXT2010P5 60V NPN中功率晶体管PowerDI®5[ 60V NPN MEDIUM POWER TRANSISTOR PowerDI®5 ] 7 页

DIODES

DXT2010P5-13 60V NPN中功率晶体管PowerDI®5[ 60V NPN MEDIUM POWER TRANSISTOR PowerDI®5 ] 7 页

DIODES

DXT2011P5 100V NPN低SAT中功率晶体管PowerDI®5[ 100V NPN LOW SAT MEDIUM POWER TRANSISTOR PowerDI®5 ] 7 页

DIODES

DXT2011P5-13 100V NPN低SAT中功率晶体管PowerDI®5[ 100V NPN LOW SAT MEDIUM POWER TRANSISTOR PowerDI®5 ] 7 页

DIODES

DXT2012P5 60V PNP中功率晶体管PowerDI®5[ 60V PNP MEDIUM POWER TRANSISTOR PowerDI®5 ] 7 页

DIODES

DXT2012P5-13 60V PNP中功率晶体管PowerDI®5[ 60V PNP MEDIUM POWER TRANSISTOR PowerDI®5 ] 7 页

DIODES

DXT2013P5 100V PNP中功率晶体管PowerDI®5[ 100V PNP MEDIUM POWER TRANSISTOR PowerDI®5 ] 7 页

DIODES

DXT2013P5-13 100V PNP中功率晶体管PowerDI®5[ 100V PNP MEDIUM POWER TRANSISTOR PowerDI®5 ] 7 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.208156s
