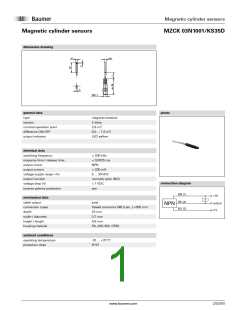

Magnetic cylinder sensors
Magnetic cylinder sensors
MZCK 03N1001/KS35D
dimension drawing
3,7
4,6
3
M8 x 1
general data
type
magneto-resistive
C-slots
version
nominal operation point
difference ON-OFF
output indicator
2,8 mT
0,5 ... 1,5 mT
LED yellow
electrical data
switching frequency
response time / release time
output circuit
< 200 kHz
< 0,0025 ms
NPN
output current
< 200 mA
5 ... 30 VDC
normally open (NO)
< 1 VDC
voltage supply range +Vs
output function
connection diagram
voltage drop Vd
reverse polarity protection
yes
BN (1)
+VS
mechanical data
cable output
Z
BK (4)
axial
output
0 V
NPN
connection types
depth
flylead connector M8 3 pin, L=300 mm
BU (3)
23 mm
width / diameter
height / length
housing material
3,7 mm
4,6 mm
PA, AISI 303, OT63
ambient conditions
operating temperature
protection class
-10 ... +70 °C
IP 67
