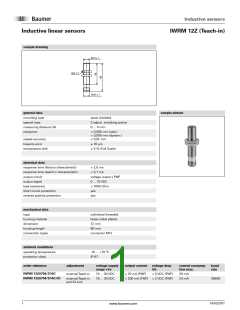

Inductive sensors
Inductive linear sensors
IWRM 12Z (Teach-in)
sample drawing
M12x 1
SW 17
M12 x 1
general data
mounting type
special type
sample picture
quasi shielded
2 adjust. switching points
0 ... 4 mm
measuring distance Sd
resolution
< 0,005 mm (stat.)
< 0,005 mm (dynam.)
< 0,01 mm
repeat accuracy
linearity error
16 µm
temperature drift
5 ꢀ (ꢁull Scale)
electrical data
response time (factory characteristic)
response time (teach in characteristic)
output circuit
< 2,5 ms
< 3,1 ms
voltage output / PNP
0 ... 10 VDC
> 1000 Ohm
yes
output signal
load resistance
short circuit protection
reverse polarity protection
yes
mechanical data
type
cylindrical threaded
brass nickel plated
12 mm
housing material
dimension
housing length
connection types
60 mm
connector M12
ambient conditions
operating temperature
protection class
-10 ... +70 °C
IP 67
order reference
adjustment
voltage supply
range +Vs
output current
< 10 mA (PNP)
voltage drop
Vd
current consump-
tion max.
baud
rate
IWRM 12Z8704/S14C
externalTeach-in
15 ... 30 VDC
18 ... 30 VDC
< 5 VDC (PNP)
20 mA
24 mA
-
IWRM 12Z8704/S14C/IO
externalTeach-in
and IO-Link
< 200 mA (PNP) < 2 VDC (PNP)
38400
1
14/10/2011
www.baumer.com
