MYUSP3R303FMP Application
1

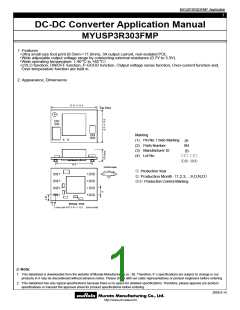

DC-DC Converter Application Manual
MYUSP3R303FMP
1. Features
･Ultra small size foot print (8.5mm×11.0mm), 3A output current, non-isolated POL.
･Wide adjustable output voltage range by connecting external resistance (0.7V to 3.3V).
･Wide operating temperature（-40oC to +85 oC）.
･UVLO function, ON/OFF function, P-GOOD function, Output voltage sense function, Over-current function and,
Over-temperature function are built in.
2. Appearance, Dimensions
11.0 +/- 0.4
Top View
□□
①②
□□
③④
Marking
X
N
(1) Pin No.1 Side Marking
(2) Parts Number
(3) Manufacturer ID
(4) Lot No.
XN
□□ □□
①② ③④
8.4
Terminal sape
1.6
① Production Year
4
3
2
1
5
6
7
8
② Production Month（1,2,3,…9,O,N,D）
③④ Production Control Marking
0.5
Bottom View
1.3
Lead pitch P:1.8 +/- 0.2 [unit:mm]
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2009.9.14
MYUSP3R303FMP Application
2
Pin Number and Function
Pin No.
Symbol
TRIM
Function
Output voltage adjustment
Output
1
2
Vout
3,5
4
GND
GND
+SENSE
ON/OFF
Vin
Output voltage sense
Remote ON/OFF
Input
6
7
8
Pgood
Power good output
3. Block Diagram
Vout
Vin
2
4
7
+SENSE
3
5
GND
GND
6
8
１
Control Circuit
ON/OFF
Pgood
TRIM
4. Test Circuit
Pgood
RL
Pgood
10kΩ
Vout
Vin
８
2
4
7
+SENSE
TRIM
MYUSP3R303FMP
ON/OF
Vcont
Vin
Cout: 1µF
Cin: 47µF
1
6
Rtrim
3
5
GND
GND
Cin ：47µF／6.3V
Cout ：1µF／10V
Ceramic Capacitor
Ceramic Capacitor
Please make sure to place Cin and Cout nearby input and output terminal of DC-DC converter.
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2009.9.14
MYUSP3R303FMP Application
3
5. Characteristics
5. 1 Electrical Characteristics (Ta=25 oC)
Value
Item
Condition
Unit
V
Symbol
Min.
3.0
Typ.
-
Max.
5.5
Input Voltage Range
Vin
Vin=3.0V-5.5V
Note：
Output Voltage
Adjustable Range
Vout
0.7
-
3.3
V
VinMin.=Vout+1.2V at Vout≧1.6V
Over Vin,Temperature range
Rset=0.5% tolerance
Io=5mA～3A
-3.0
-
-
-
+3.0
3
%Vo
A
Output Voltage Tolerance
Output Current
Vo tol
Iout
See the thermal derating curve
in section 5.2.
0
-
Vin=5V, Vout=1.2V, Iout=3A
BW =20MHz,
Vrpl
80
mV(pp)
Ripple Voltage
EFF
VIH
VIL
Vin =5V, Vout=3.3V, Iout=1A
-
2.0
0
94
-
-
%
V
Efficiency
ON
OFF
Vin
0.8
ON/OFF pin High Voltage
ON/OFF pin Low Voltage
-
V
When a short circuit state continues, the product becomes the latch up mode and
stops.. After correction of the abnormal condition, the DC-DC Converter will restart
by re-inputting Vin or toggling On/Off pin.
SCP
Short Circuit Protection
Power Good Detection
Theshold
Vpg
TSS
-10
4
%Vo
msec
msec
Soft Start Time
2
8
2
Timer Latch Mask Time
Tlatch
0.5
1
*Power Good Detection output is sent when the DC-DC converter begins the output operation ( when the output voltage
reaches a threshold voltage of Power Good Detection shown in 9.1.3.). PGOOD pin is open drain output
DC-DC converter is operating
: PGOOD-PIN is open.
DC-DC converter is not operating :PGOOD-PIN is pull down to GND internally.
!
Caution
The above electrical characteristics are guaranteed with the condition that the impedance of the input voltage source is sufficiently
low as shown in section 4. Connecting an input inductance or using an input power supply with output inductance may cause an
unstable operation of this device. Please check the proper operation of this device with the peripheral circuits on your system.
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2009.9.14
MYUSP3R303FMP Application
4
5. 2 Thermal Derating
Thermal Derating
①②③④⑤⑥
①
④
②
⑤
③
⑥
The above derating limits apply to this product soldered directly to 101.6*180mm*1.6mm PCB (double-sided, with 70um
copper). Any adjacent parts of high temperature may cause overheating. For reliable operation, please ensure that the IC
temperature of this product is maintained below 120°C and the inductor temperature is below 119°C.
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2009.9.14
MYUSP3R303FMP Application
5
6. Pin Description
6.1. Adjusting the Output Voltage
The output voltage can be adjusted from 0.7V to 3.3V by connecting resistors between TRIM-pin(1Pin) to GND-pin(Pin 3 is
recommended for accurate Vout setting).
The following equation gives the required external-resistor values to adjust the output voltage to the required Vout.
It is highly recommended that evaluation of the characteristics of this DC-DC converter’s operation under your board
conditions be thoroughly conducted.
Vout
Internal circuit
10kΩ
7000
Vout
[Ω]
Rtrim
＝
2000
－
- 0.7
TRIM pin
2000Ω
Error amp
Rtrim
<Rtrim Calculation Example>
Vout(V)
3.3
Calculated Rtrim(Ω)
692.3
Rtrim Example(Ω)
680 + 12
2.5
1888.9
4363.6
6750
1500 + 390
3900 + 470
5600 + 1200
12000
1.8
1.5
1.2
12000
1.0
21333.3
68000
18000 + 3300 + 33
68000
0.8
0.7
∞
Open
6. 2. ON/OFF Control
Using the ON/OFF feature, the operation of this product can be disabled without removal of the input voltage. Sequencing
of a power supply system and power-saving control can be easily achieved using this function.
When ON/OFF-pin(6pin) is connected to Vin …… Output Voltage =ON
When ON/OFF-pin(6pin) is connected to GND …… Output Voltage =OFF
6.3. Output Voltage Sensing
By connecting SENSE-pin to the load, output voltage drop in wiring shall be compensated.
Please do NOT connect SENSE-pin to the output of LC filter that is set to the Vout line.
When using this way, this product will not operate properly.
< Caution>
Vout
Vout
MYUSP3R303FMP
MYUSP3R303FMP
SENSE
SENSE
Load
Load
GND
GND
Please connect SENSE-pin to Vout-pin nearby the product, if sense function is not used.
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2009.9.14
MYUSP3R303FMP Application
6
6.4. Input External capacitor
It is recommended to connect Ceramic capacitor of 47uF or more between Vin terminal(7pin) and GND(5pin). But
according to Fig6-4, it can smaller capacity value by a combination of input voltage and output voltage.
But smaller input capacitor may leads to an unstable operation of this product caused by input voltage fluctuation. When
the impedance of input line is enough small, smaller input capacitor can be applied after checking the stable operation on
your product.
Please place the input capacitor as close as possible to this product.
Long wiring between the input capacitor and this product may lead to increased radiation noise and unstable operation of
this product.
Fig6-4 Input external capacitor by the combination of input voltage and output voltage.
（When Slew Rate of the output current is less than 1A/µs.）
6.5. Output External capacitor
Ceramic capacitors are recommended as output external capacitor.
Using ceramic capacitors, small output variation and small ripple voltage are realized.
Output capacitor should be 300uF or less. Output capacitor shall be placed near the output terminal.
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2009.9.14
MYUSP3R303FMP Application
7
7. Typical Characteristics Data
7.1. Static Electrical Characteristics
Vout=1.0V
（Ta=25 oC, Cin= GRM32EC80J476K, Cout= GRM216B11A105K, Rtrim=21333Ω）
Fig.7-1-1. Output Voltage v.s. Output Current
Fig.7-1-2. Efficiency v.s. Output Current
Fig.7-1-3. Ripple Voltage v. s. Output Current
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2009.9.14
MYUSP3R303FMP Application
8
Vout=1.2V
（Ta=25 oC, Cin= GRM32EC80J476K, Cout= GRM216B11A105K, Rtrim=12000Ω）
Fig.7-1-4. Output Voltage v.s. Output Current
Fig.7-1-5. Efficiency v.s. Output Current
Fig.7-1-6. Ripple Voltage v. s. Output Current
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2009.9.14
MYUSP3R303FMP Application
9
Vout=1.8V
（Ta=25 oC, Cin= GRM32EC80J476K, Cout= GRM216B11A105K, Rtrim=4370Ω）
Fig.7-1-7. Output Voltage v.s. Output Current
Fig.7-1-8. Efficiency v.s. Output Current
Fig.7-1-9. Ripple Voltage v. s. Output Current
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2009.9.14
MYUSP3R303FMP Application
10
Vout=3.3V
（Ta=25 oC, Cin= GRM32EC80J476K, Cout= GRM216B11A105K, Rtrim=692Ω）
Fig.7-1-10. Output Voltage v.s. Output Current
Fig.7-1-11. Efficiency v.s. Output Current
Fig.7-1-12. Ripple Voltage v. s. Output Current
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2009.9.14
MYUSP3R303FMP Application
11
7.2. Dynamic Electrical Characteristics
Vin=3.3V, Vout=1.2V
（Ta=25 oC, Cin= GRM32EC80J476K, Cout= GRM216B11A105K, Rtrim=12000Ω）
ON/OFF(2V/div)
ON/OFF(2V/div)
Vout(0.5V/div)
Vout(0.5V/div)
2ms/div
2ms/div
Fig.7-2-1. Start-up Waveform (Io=0A)
Fig.7-2-2. Start-up Waveform (Io=3A)
Vout(0.1V/div)
Vout(0.1V/div)
Iout(1A/div)
10us/div
Iout(1A/div)
10us/div
Fig.7-2-3. Load Transient Response
(Io=1.5->3A)
Fig.7-2-4. Load Transient Response
(Io=3->1.5A)
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2009.9.14
MYUSP3R303FMP Application
12
Vin=5.0V, Vout=1.2V
（Ta=25 oC, Cin= GRM32EC80J476K, Cout= GRM216B11A105K, Rtrim=12000Ω）
ON/OFF(2V/div)
ON/OFF(2V/div)
Vout(0.5V/div)
Vout(0.5V/div)
2ms/div
2ms/div
Fig.7-2-1. Start-up Waveform (Io=0A)
Fig.7-2-2. Start-up Waveform (Io=3A)
Vout(0.1V/div)
Vout(0.1V/div)
Iout(1A/div)
10us/div
Iout(1A/div)
10us/div
Fig.7-2-3. Load Transient Response
(Io=1.5->3A)
Fig.7-2-4. Load Transient Response
(Io=3->1.5A)
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2009.9.14
MYUSP3R303FMP Application
13
8. Mounting Condition
8. 1 PCB Land Pattern Recommendation
8.4
１PIN
1.8
1.8
6.2
1.0
0.8
1.8
6.0
10.8
2.4
2.4
8. 2 Recommended Soldering Conditions
Reflow Soldering
This product is RoHS compliant. The following profile is recommended for the reflow of this
product using Pb-free solder paste (Sn-Ag-Cu).
Method
:
Full convection reflow soldering
Profile details
Soldering temperature
:
245ºC+0/-5ºC
Soldering time
Preheating
Programming rate
Times
:
:
:
:
20 to 60 seconds, over220ºC
60 to 150 seconds,150 to 200ºC
3ºC/ sec. Max., 217 to 245ºC
1 time
245
℃
220
℃
200
150
℃
Parts surface temperature [ºC]
(20～60seconds)
℃
(60～150seconds)
Times
※Do not vibrate for the products on reflow.
Please need to take care temperature control because mounted parts may come off if the product are left
under the high temperature.
Do not reflow DC-DC converter as follows, because DC-DC converter may fall down from a substrate
during reflowing.
Substrate
DC-DC Converter
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2009.9.14
MYUSP3R303FMP Application
14
9. Notice
PCB Design
① Both input-side and output side, please make the wiring loop between plus and minus as small as possible.
The influence of a leakage inductance can be reduced.
② Please place Rtrim ( resistor for output voltage setting ) such as it connects 1pin and 3pin.
③ Please make the power line pattern as wide and short as possible.
The Following figure is an example of recommendable PCB design.
Rtrim
Vout
Vin
GND
Output Capacitor
Input Capacitor
This product should not be operated in parallel or in series.
Please do not use a connector or a socket to connect this product to your product.
The electric characteristics may be deteriorated by the influence of contact resistance.
Be sure to provide an appropriate fail-safe function on your product to prevent secondary damage
that may be caused due to abnormal functional or failure of this product.
Inrush current protection is not a feature of this product.
Please connect the input terminals with the correct polarity. If an error in polarity connection is made this
product may be damaged. If this product is damaged internally, an elevated input current may flow, and so
this product may exhibit an abnormal temperature rise, or your product may be damaged.
Please add a diode and fuse per the following diagram to protect them.
fuse
+
+
+
Load
OUT
diode
IN
-
-
※Please select diode and fuse after confirming the operation of your product.
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2009.9.14
MYUSP3R303FMP Application
15
!
Note
１. Please contact our main sales office or nearby sales office before using our products for the applications
listed below which require especially high reliability for the prevention of defects which might directly
cause damage to the third party’s life, body or property or this products for any other applications that
described in the above.
①Aircraft equipment
②Aerospace equipment
③Undersea equipment
④Power plant control equipment
⑤Medical equipment
⑥Transportation equipment (vehicles, trains, ships, etc.)
⑦Traffic signal equipment
⑧Disaster prevention /crime prevention equipment
⑨Data-processing equipment
⑩Application of similar complexity and/or reliability requirements to the applications listed in the above.
２. This catalog is indicated in March 2009. About the written contents, since changing without a preliminary
announcement for improvement and supply are sometimes stopped, please confirm in case of ordering.
If written contents are unknown, please ask to our main sales office or nearby sales office.
３. Types and specification in this catalog are referenced for your information only. Please confirm detailed
specifications by approving our individual drawing and specification sheet.
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2009.9.14
厂商 型号 描述 页数 下载

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.213046s
