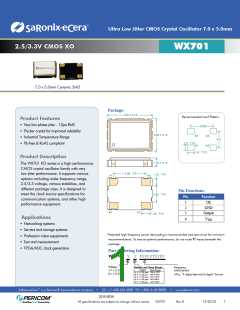

Ultra Low Jitter CMOS Crystal Oscillator 7.0 x 5.0mm
2.5/3.3V CMOS XO
WX701
7.0 x 5.0mm Ceramic SMD
Package:
Recommended Land Pattern:
Product Features
• Very low phase jitter - 1.0ps RMS
• Thicker crystal for improved reliability
• Industrial Temperature Range
• Pb-free & RoHS compliant
Product Description
The WX701 XO series is a high performance
CMOS crystal oscillator family with very
low jitter performance. It supports various
options including wider frequency range,
2.5/3.3 voltage, various stabilities, and
different package sizes. It is designed to
meet the clock source specifications for
communication systems, and other high
performance equipment.
Pin Functions:
Pin
Function
1
OE
2
GND
3
Output
VDD
Applications
• Networking systems
4
• Servers and storage systems
• Profession video equipments
• Test and measurement
• FPGA/ASIC clock generation
*Extended high frequency power decoupling is recommended (see test circuit for minimum
recommendation). To ensure optimal performance, do not route RF traces beneath the
package.
Part Ordering Information:
WX 701
V
A
I
B
FFFF.FFFFFF
C
Voltage:
1=+3.3V
2=+2.5V
Stability and Temp Range:
Frequency:
FFFF.FFFFFF
MHz, “4 digits/decimal/6 digits” format
Stability
Temp Range
A = +/-20 ppm -20/+70°C
B = +/-25 ppm -20/+70°C
C = +/-50 ppm -20/+70°C
D = +/-25 ppm -40/+85°C
E = +/-50 ppm -40/+85°C
SaRonix-eCera™ is a Pericom® Semiconductor company
•
US: +1-408-435-0800 TW: +886-3-4518888
•
www.pericom.com
2010-0039
All specifications are subject to change without notice.
WX701XO
Rev B
12/20/10
1
